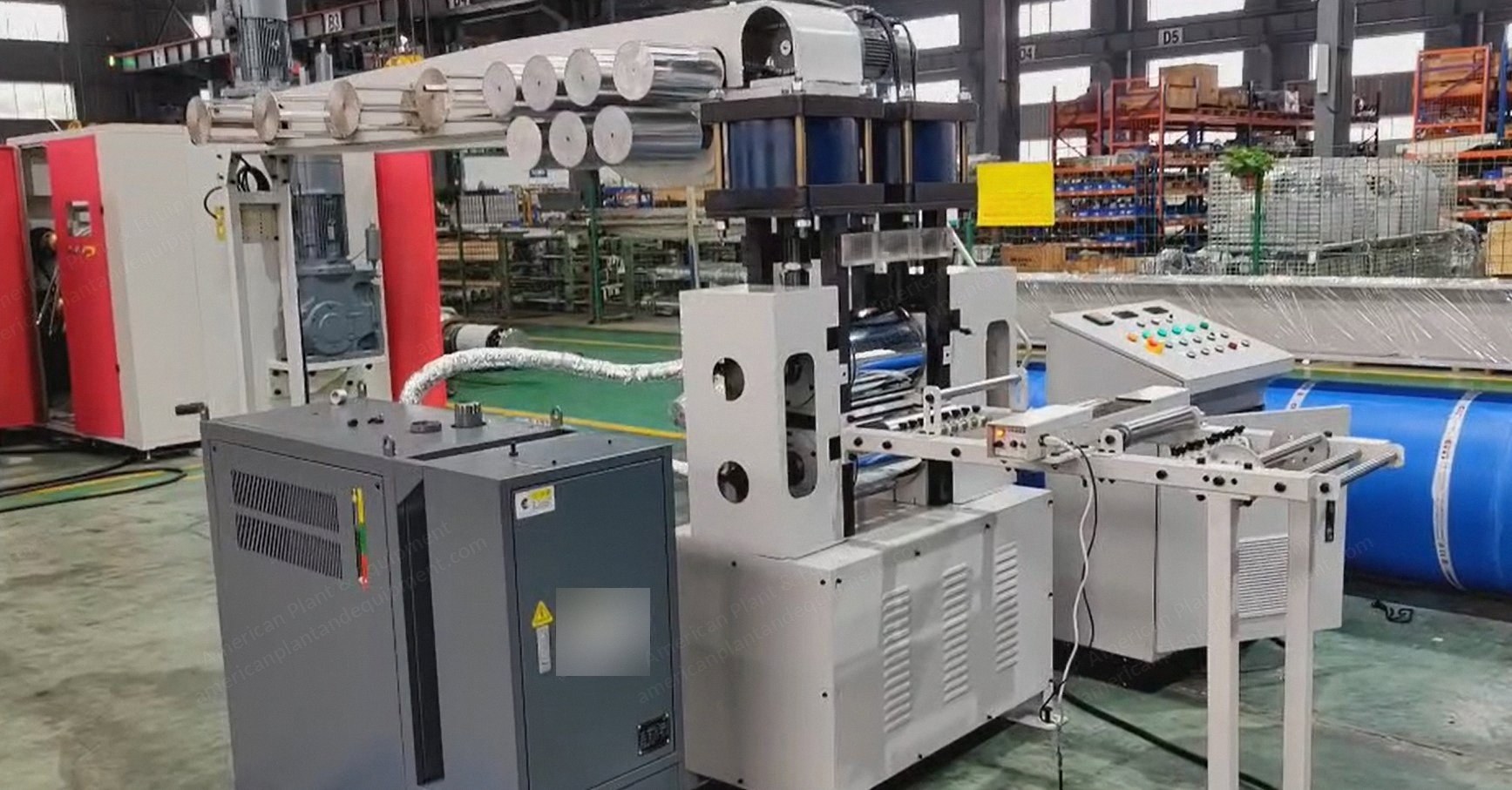

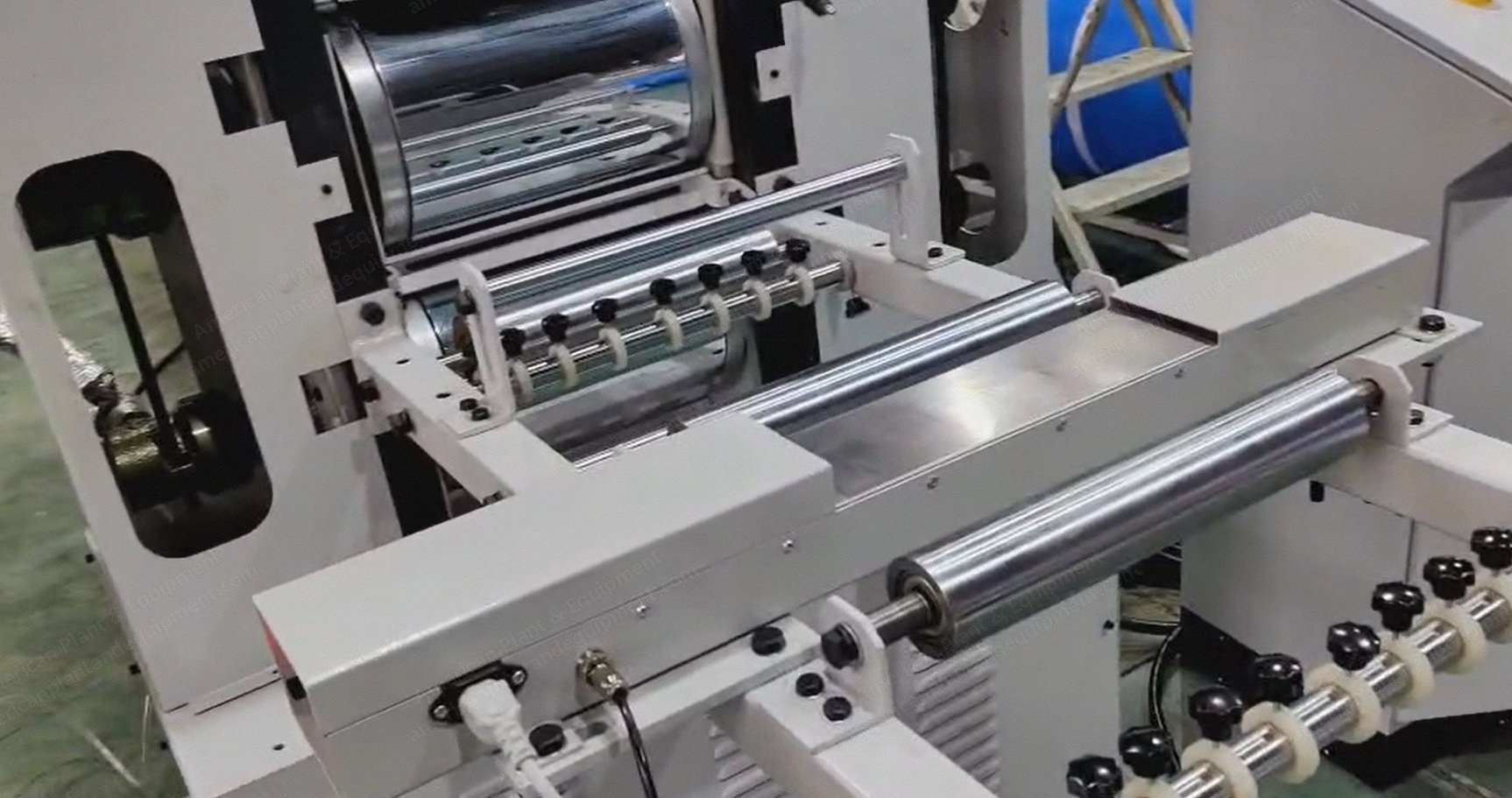

NovaStar, GF300-9II, Narrow Fabric Calender, 300mm Width, 25kW (New)

NovaStar, GF300-9II, Narrow Fabric Calender, 300mm Width, 25kW

Description

  1. Overview
    1. Dedicated to calendering of ribbon, woven mark, clothing, or special narrow fabric.
    2. Fabric calendering can produce different sheen results.
    3. Processing object: ribbon, narrow fabric, weaving trademark.
    4. Type: vertical 2-rollers, both heating mirror roller.
    5. Ribbon outlet type: with way to free fall.
    6. Nominal width: 300 mm (11.8 in).
    7. Max. processing quantity: 6.
    8. Speed: 5 to 40 m/min.
    9. Max. line-pressure: 330 N/mm, 9 t.
    10. Total power: 25 kW (33.5 hp).
    11. Dimension: 4300 mm (169.3 in) x 2500 mm (98.4 in) x 2200 mm (86.6 in).
  2. Calendering Roll Component Parameters
    1. Diameter of mirror roller: Ф260 mm.
    2. Material of mirror roller: alloy forged steel, ground to mirror surface (roughness ≤ 0.2 μm).
    3. Mirror roller cavity constructed with around-the-hole HTF loop, structure conducive to rapid heating.
    4. Bearing of rollers: 22218CA/W33 heavy bearing.
    5. Up and down roller gap adjustment range: 0 to 0.5 mm.
  3. Drive Control System
    1. Power of main motor: 2.2 kW (3.0 hp), driven with gear reducer.
    2. Power of ribbon outlet motor: 0.75 kW (1.0 hp).
    3. Speed-adjust mode: by inverter, adopts Mitsubishi inverter, stepless speed adjust.
  4. Pressure Control System
    1. Pressing way: from the top to down.
    2. Air cylinder diameter: Ф280 mm.
    3. Maximum pressure of air system piping: ≤ 0.75 MPa.
  5. Temperature Control System
    1. Mirror roller heating mode: loop conducting oil heating.
    2. HTF heater working principle: oil after heating is input to the mirror roller through the pump for circulating; a set heater can be used for two calenders simultaneously.
    3. Power of heater: 24 kW (32.2 hp).
    4. Surface working temperature of mirror roller: ≤ 250 °C (482°F).
    5. Control way of heating temperature: SCR.
    6. Heating temperature control accuracy: roller surface temperature difference ± 0.5 °C (33°F).
  6. Cooling Control System
    1. Ribbon cooling mode: steel roller surface cooling.
    2. Number of cooling rollers: 7 steel rollers.
  7. Safety Protection System
    1. Center device of ribbon feed-in unit: steel ring limit device.
    2. Safety protector 1: static eliminator, automatically removes static, protecting the human body and fabric.
    3. Safety protector 2: metal detector, automatically detects metal in the fabric, lifts the roller automatically and alarms, protecting roller surface.
    4. Safety protector 3: finger anti-trap protection.
    5. Safety protector 4: emergency stop cable switch, installed in front of roller to enhance safety of equipment and human body.
