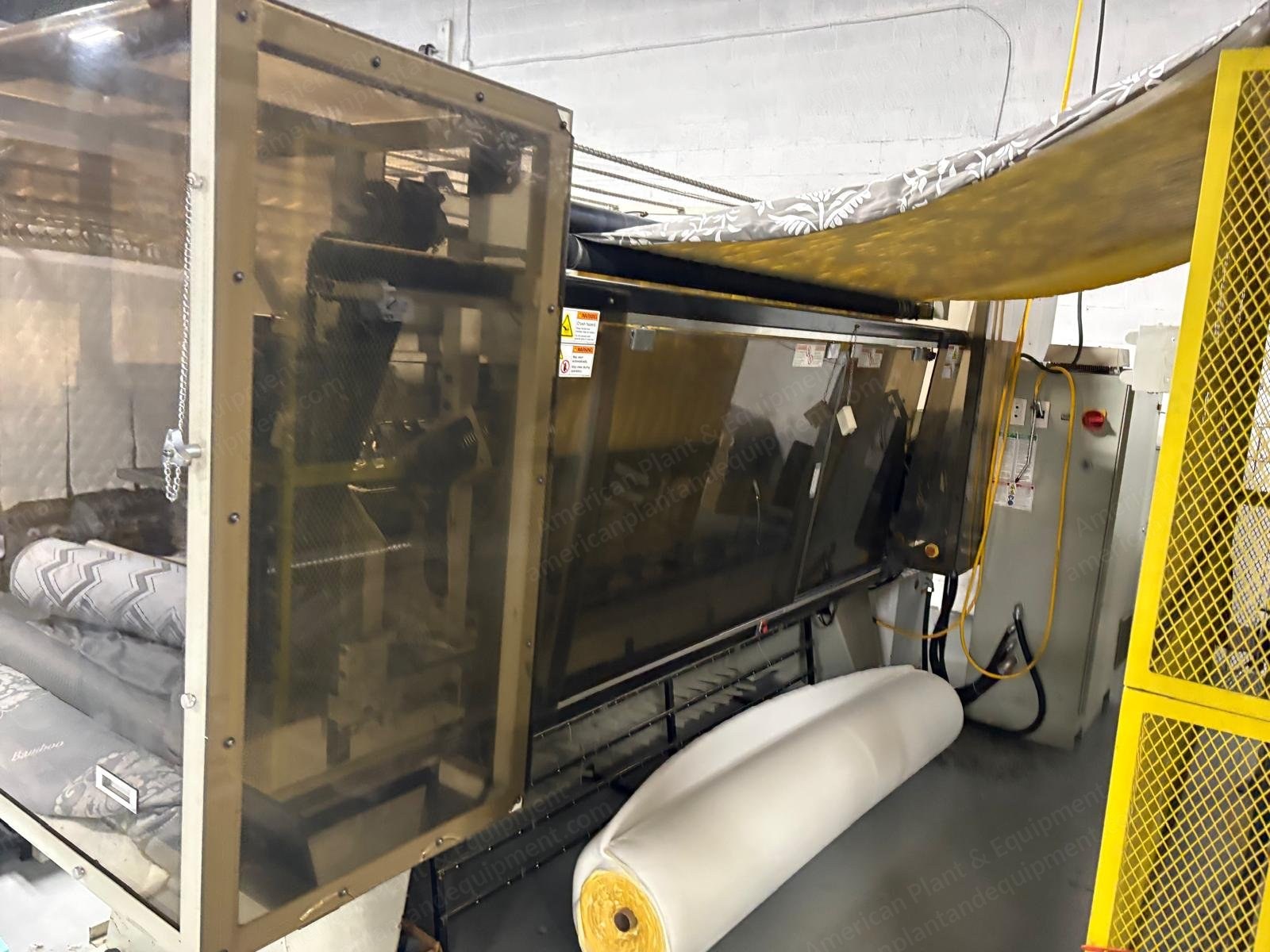

Gribetz, M4 Platform, 2010, 2286mm Width, 3 Needle Bars, 1200 RPM

Gribetz, M4 Platform, 2010, 2286mm Width, 3 Needle Bars, 1200 RPM

Description

  1. Overview
    1. Type: computerized high-speed multi-needle chainstitch quilter
    2. Year 2010
    3. Width 2286mm (90.0 in)
    4. Maximum speed 1200 RPM
    5. Tack and jump speed 1000 RPM
    6. Three bars – 1 x 3 x 6
  2. Specifications
    1. Year 2010
    2. Quilting width: 90 inches (2286mm)
    3. Needle bars: 3
    4. Needle-bar spacing: 3 inches (76.2mm)
    5. Needle spacing: 1 inch (25.4mm)
    6. Needle size: 180/140
    7. Loopers: 45
    8. Stitch length: 5 to 10 SPI; 7 SPI recommended
    9. Maximum speed: 1,200 RPM
    10. Recommended tack & jump speed: 1,000 RPM
  3. Pneumatic Requirements
    1. Air pressure: 90 PSI / 6.2 bar
    2. Air consumption: 1.2 CFM
  4. Electrical Data
    1. Electrical: 3-phase; voltage configuration depends on transformer
    2. 600 volts
    3. 3 phases
    4. 60Hz
    5. 16A full load current
    6. 18 kVA power
    7. 25A input breaker
    8. 14kA interrupt capacity
    9. 11.9 largest load amp rating
  5. Features
    1. Computerized pattern control
    2. Pattern compensation
    3. Equistitch
    4. Point & sew
    5. 360° tack & jump
