Textechno, Lawson Hemphill, Texcontrol, Complete Filament Yarn Testing Laboratory with Statimat DS, Texturmat ME, Dynafil ME and TYT, Used, 2010, 11 Instruments

Textechno, Lawson Hemphill, Texcontrol, Complete Filament Yarn Testing Laboratory with Statimat DS, Texturmat ME, Dynafil ME and TYT, Used, 2010, 11 Instruments

Description

  1. Overview
    1. Complete lab to analyze filament yarn
    2. Year 2010
    3. Very low operating hours
    4. Excellent condition
  2. Scope Of Supply

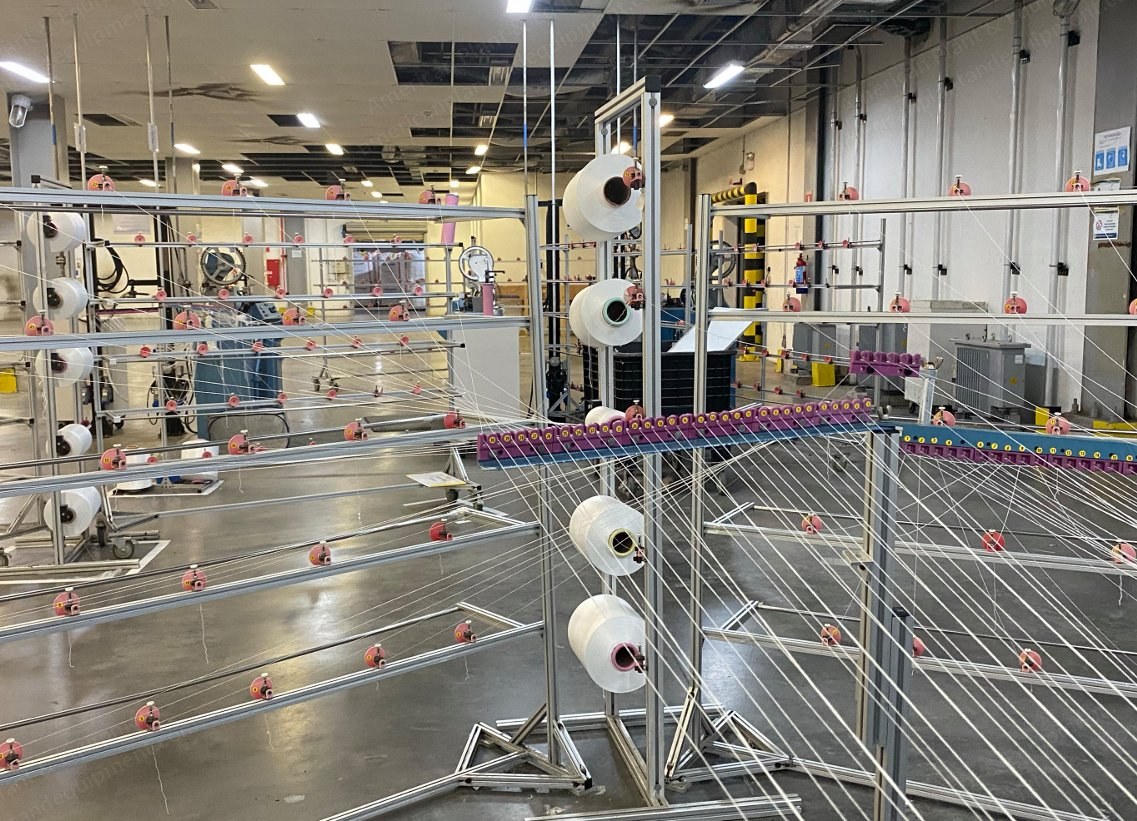

    1. 2 x Lawson Hemphill skein winders - 10 position creel
    2. 1 x Texcontrol skein winder - 6 position creel

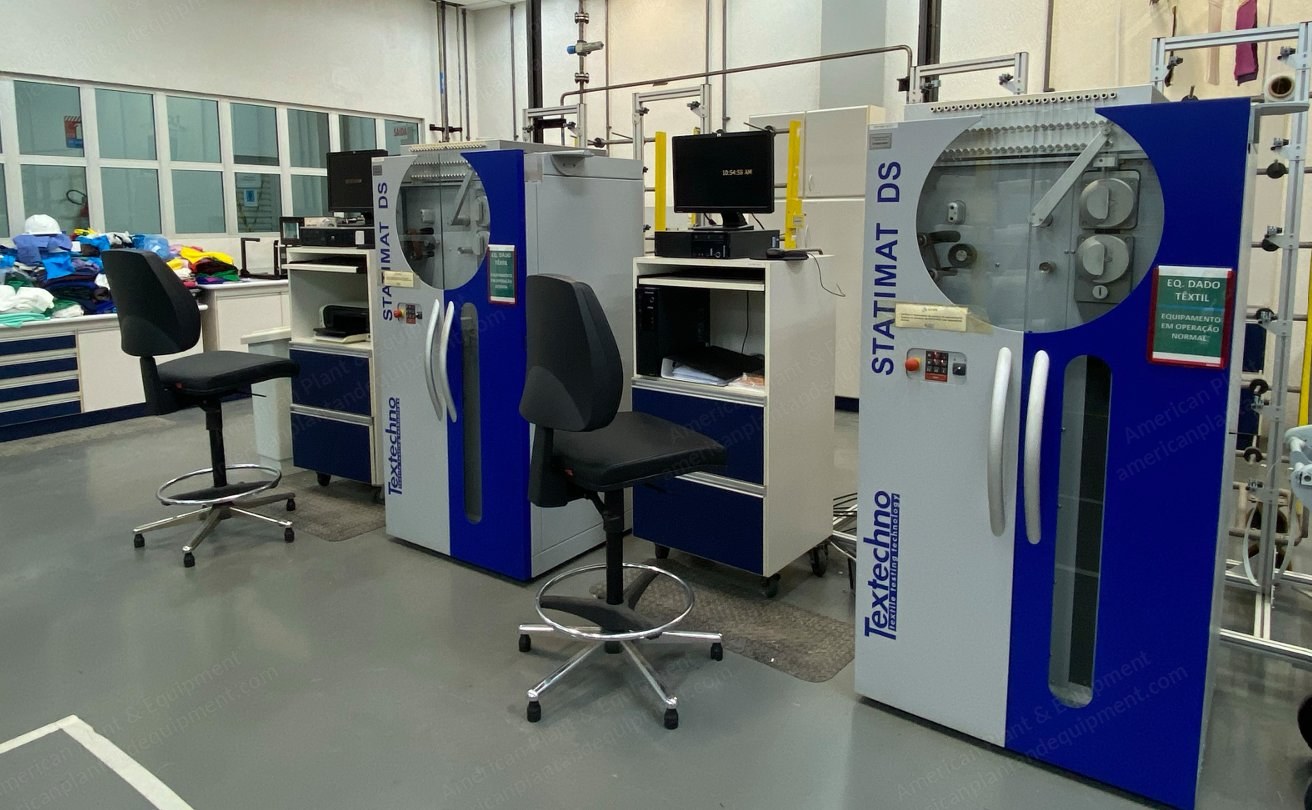

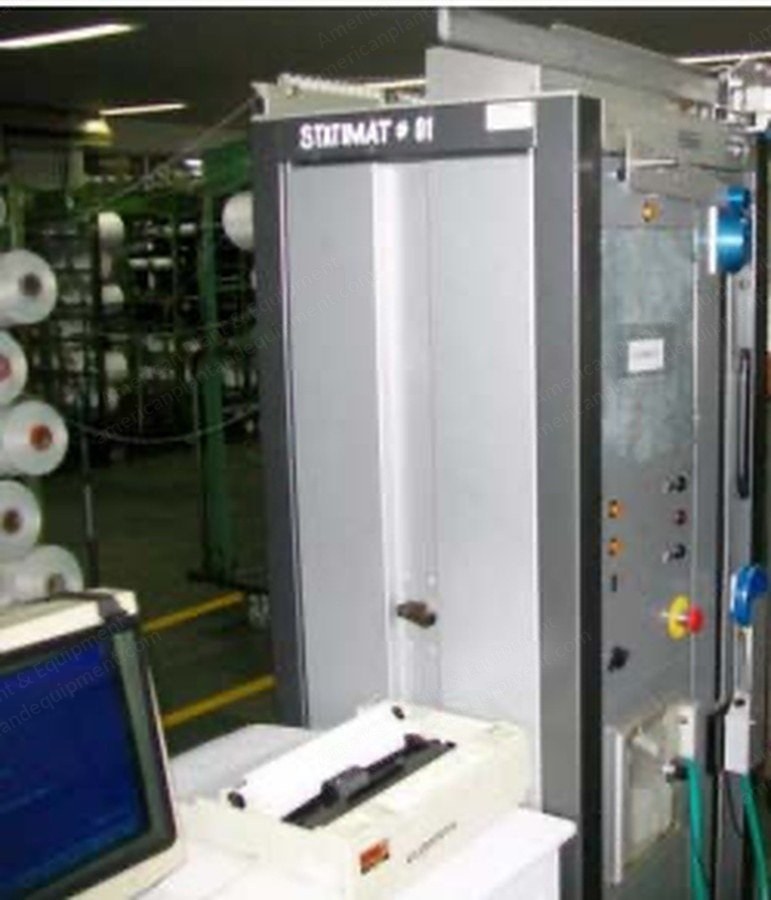

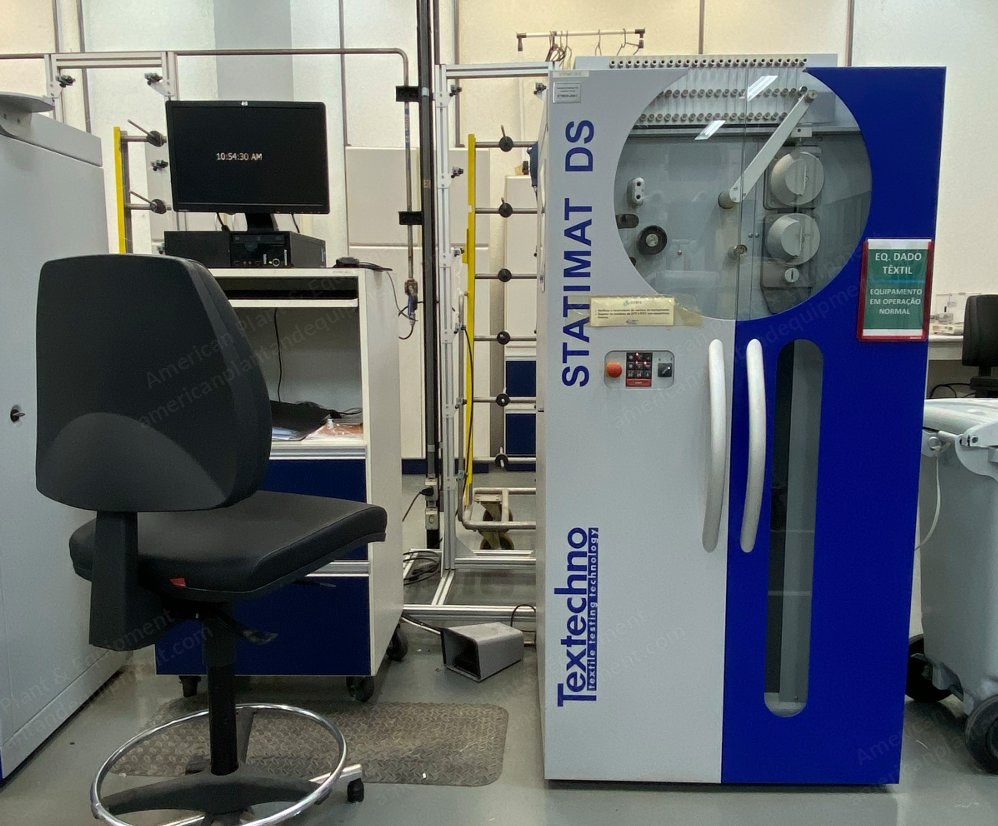

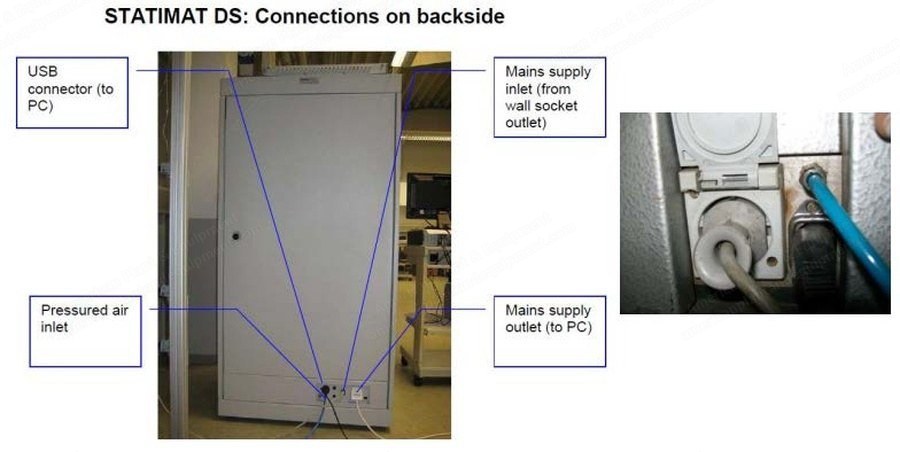

    3. 2 x Textechno/PML automatic yarn tensile tester type Statimat DS

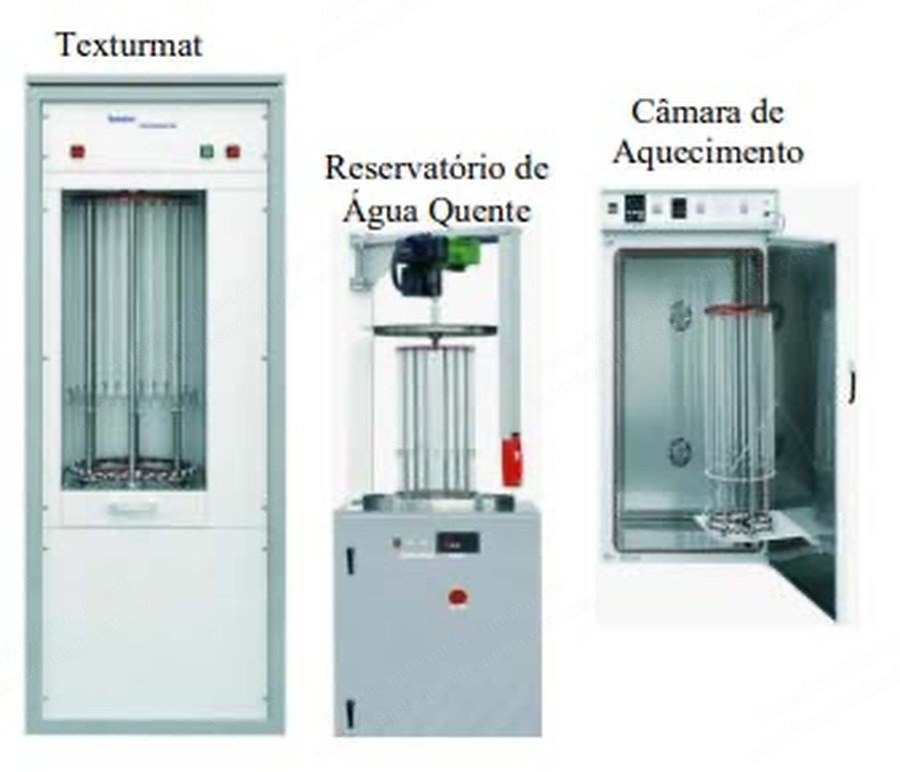

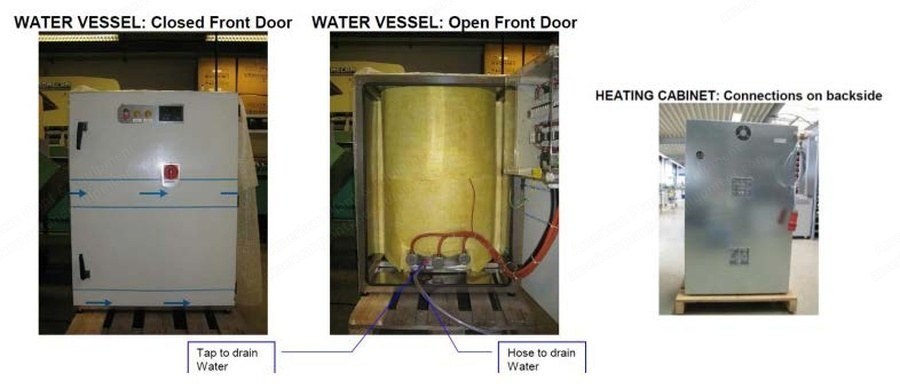

    4. 1 x Textechno/PML automatic yarn shrinkage/crimping tester type Texturmat ME
    5. 2 x Marte twist checkers type Tortiometer

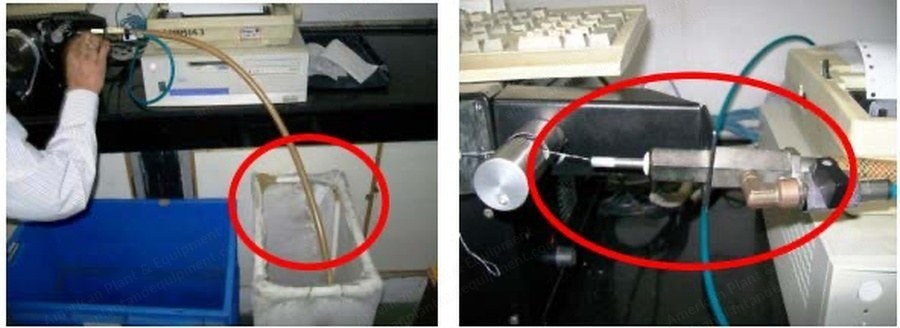

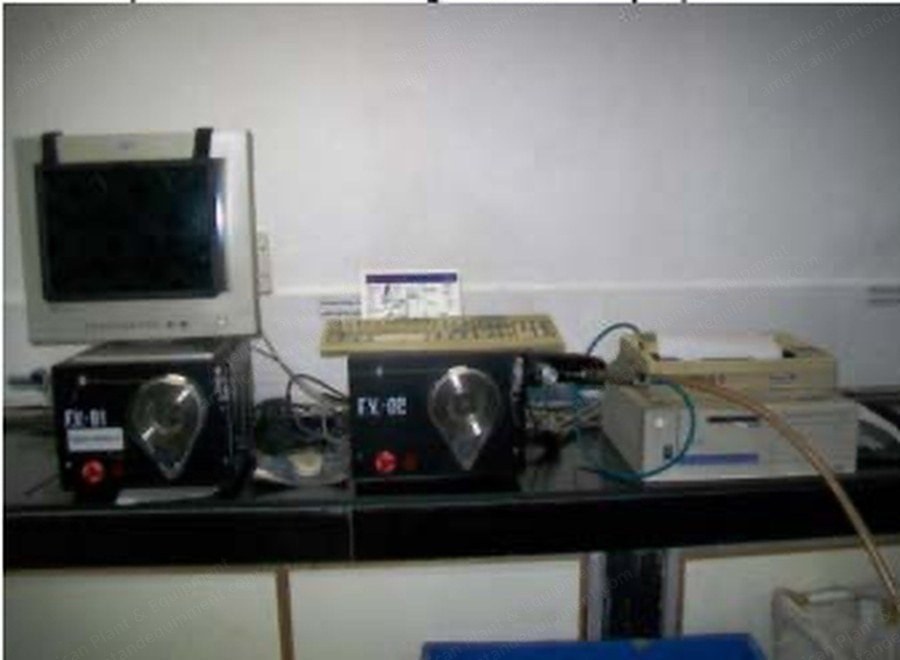

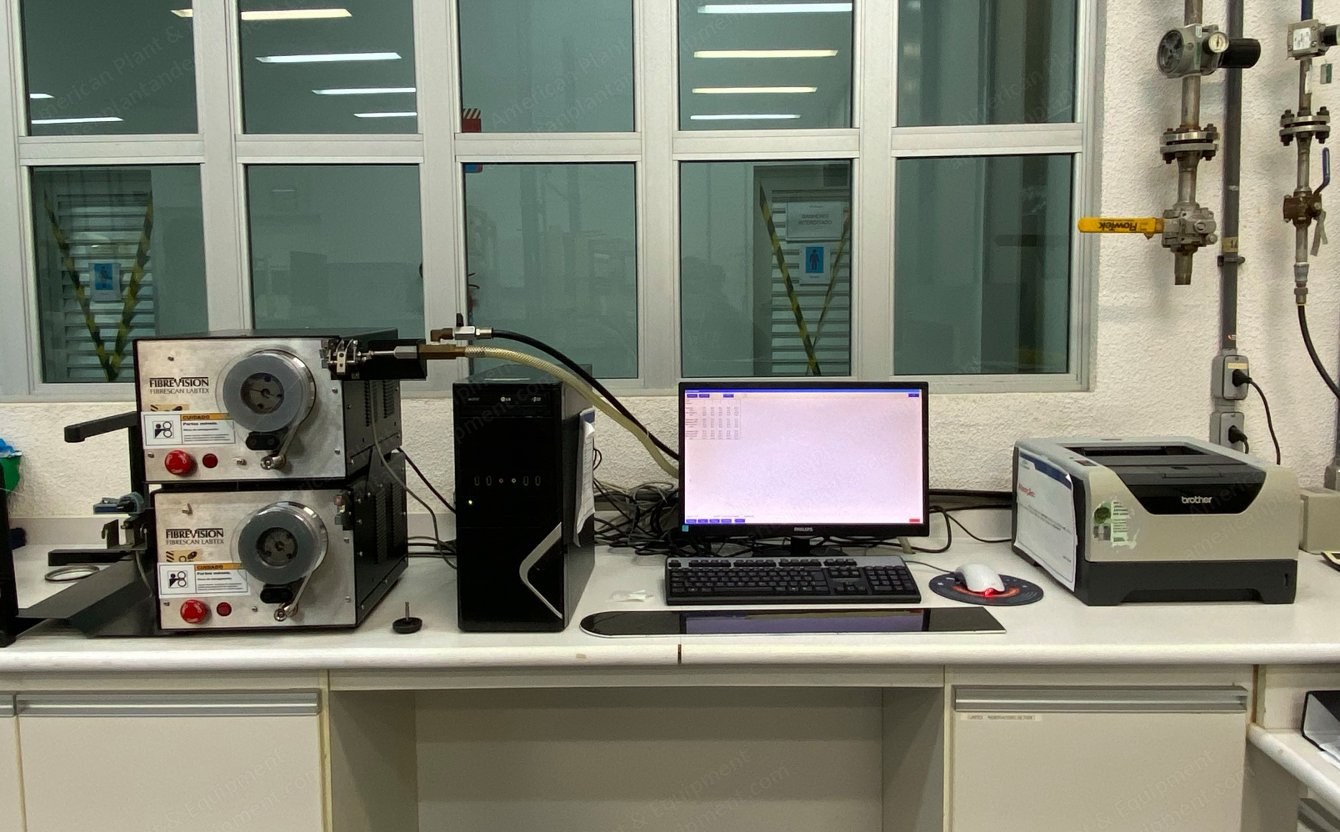

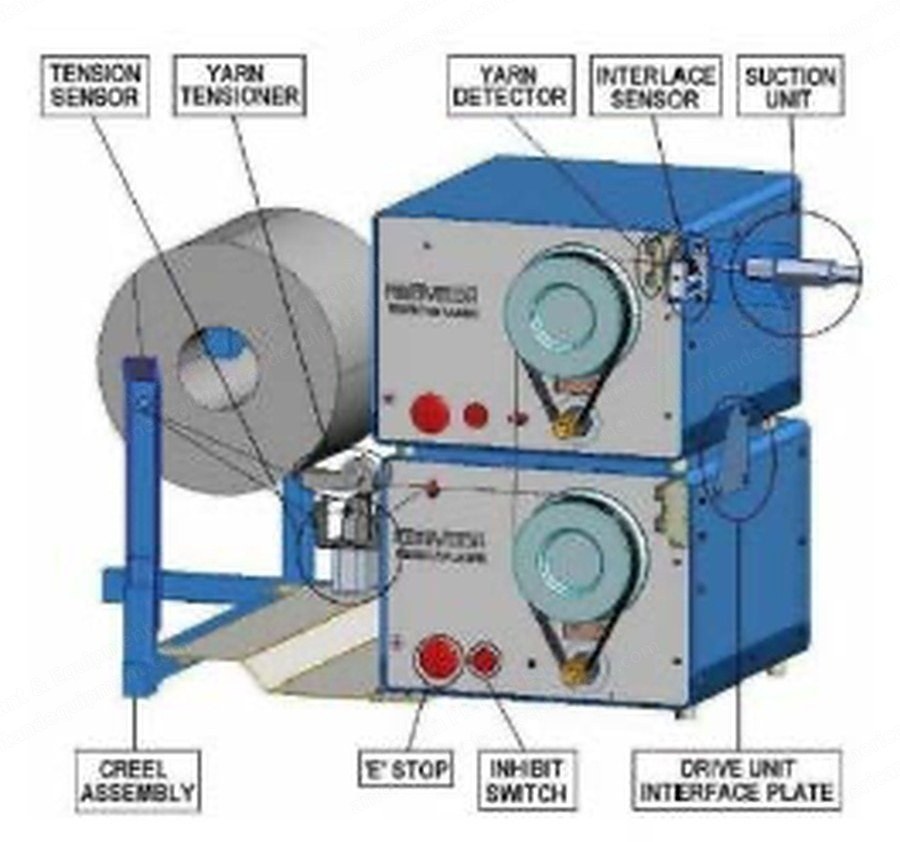

    6. 1 x Fibrevision automatic Labtex PIR to check interlace and broken filaments

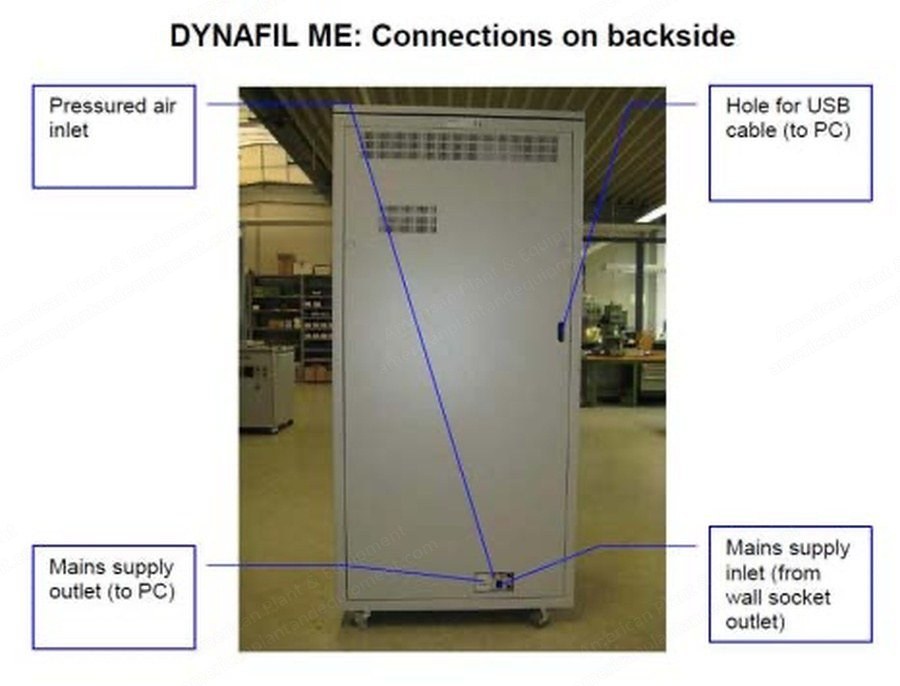

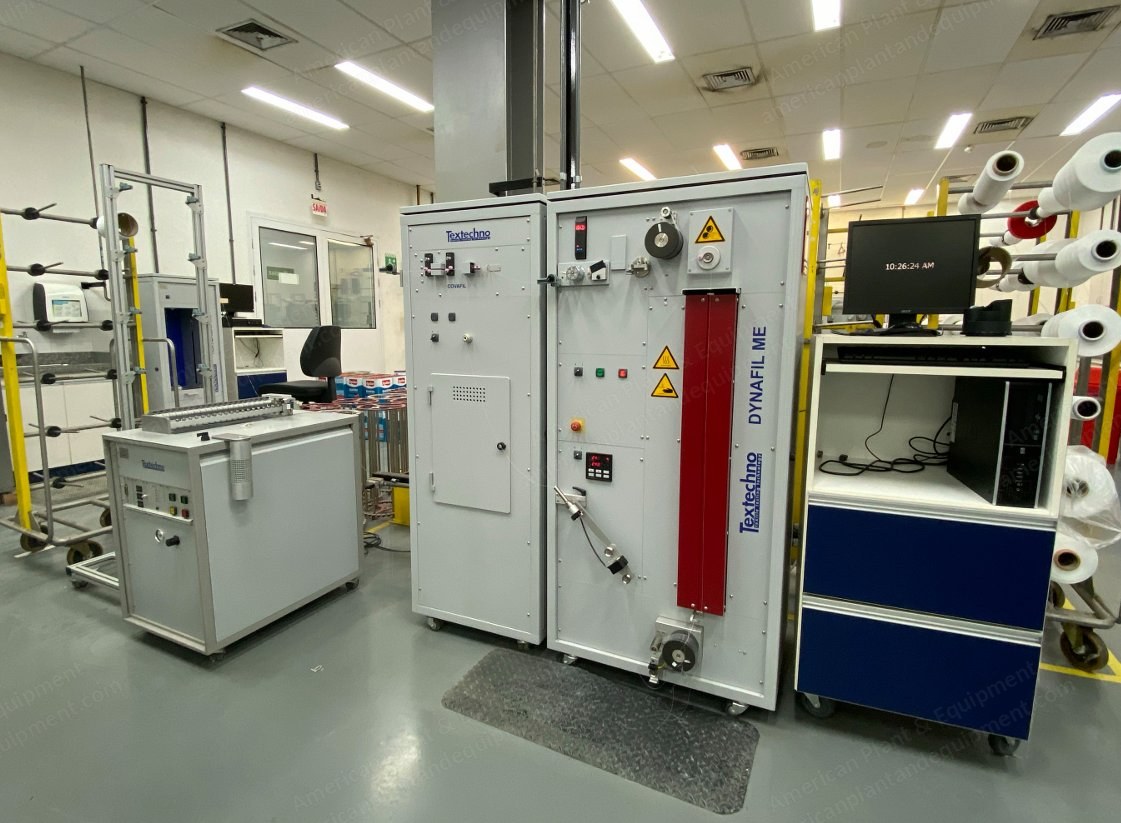

    7. 1 x Textechno universal yarn tester type Dynafil ME

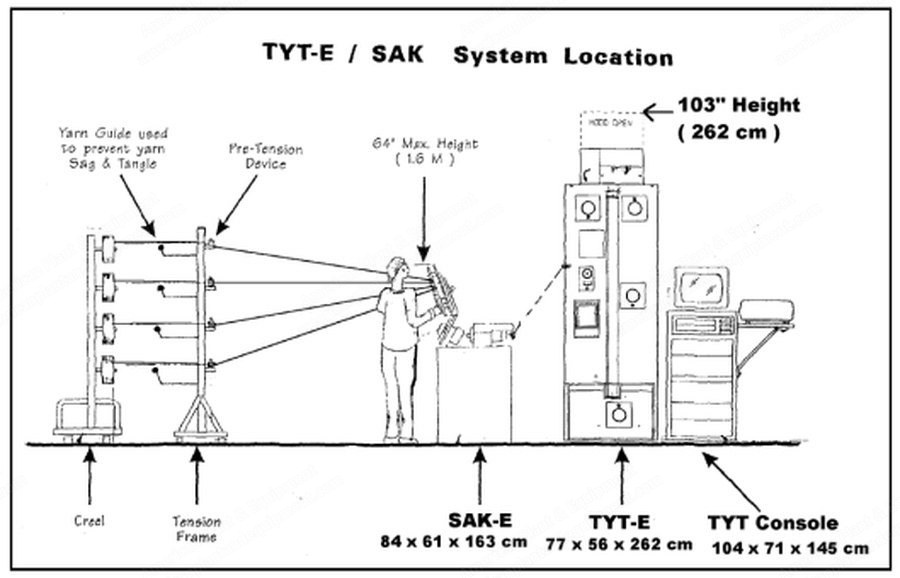

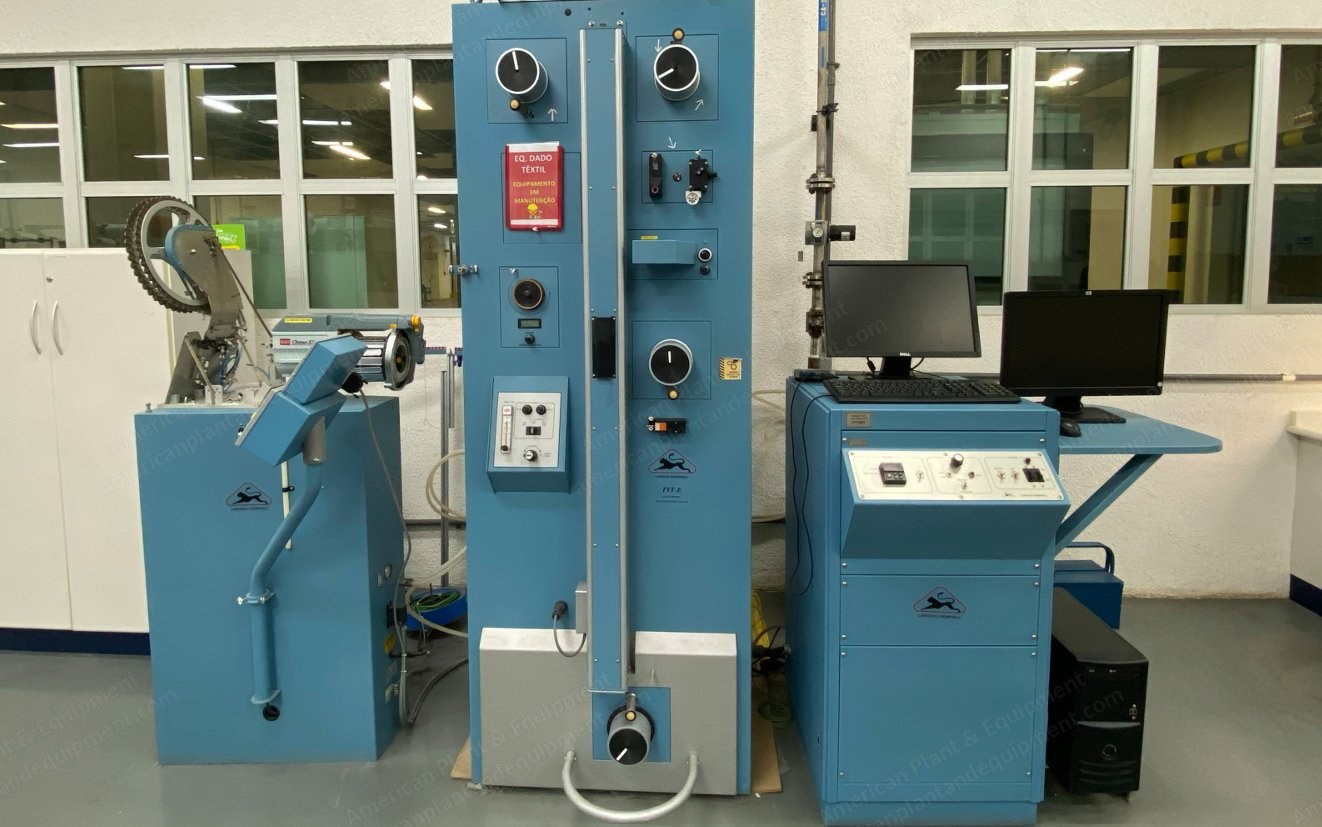

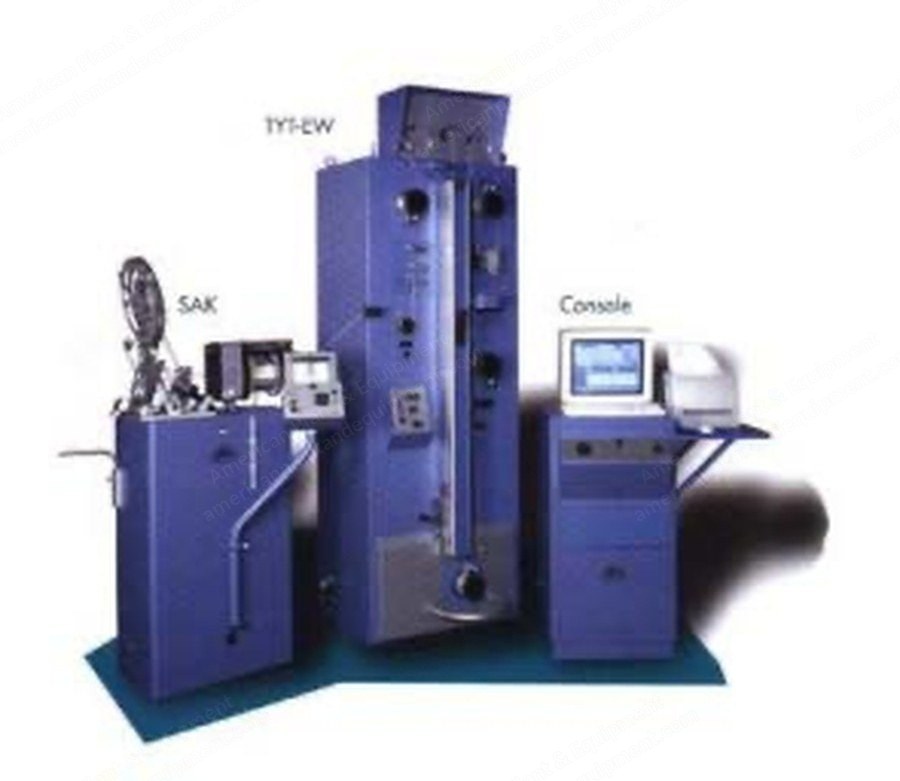

    8. 1 x Texcontrol/Lawson Hemphill textured yarn tester type TYT
  3. Specifications
    1. Capacity: 11 instruments in 8 types, 1,000 packages per shift on the TYT
    2. Power supply: 230 V single-phase 60 Hz on most instruments; 480 V three-phase 60 Hz on Texturmat modules 03B (16 kW) and 03C (4 kW)
    3. Largest items: Tallest: TYT module B 2,620 mm (103.1 in) and Texturmat hot water tank 2,455 mm (96.7 in). Heaviest: TYT module B 437 kg (963 lb) and TYT module A SAK 275 kg (606 lb)
    4. Compressed air: 5 to 7 bar (73 to 100 psi); TYT consumption 240 Nm3/h, Labtex 40 m3/h, Statimat DS 8.46 Nm3/h per unit, Dynafil ME 8.39 Nm3/h
