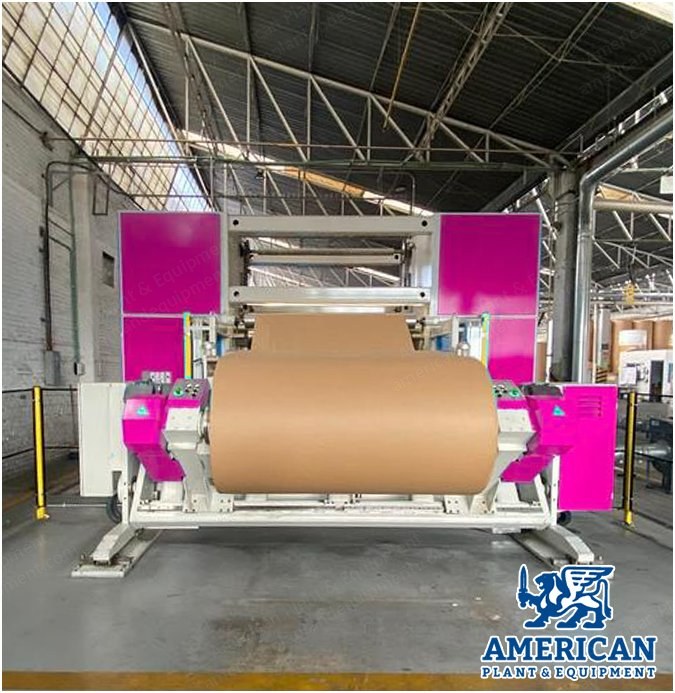

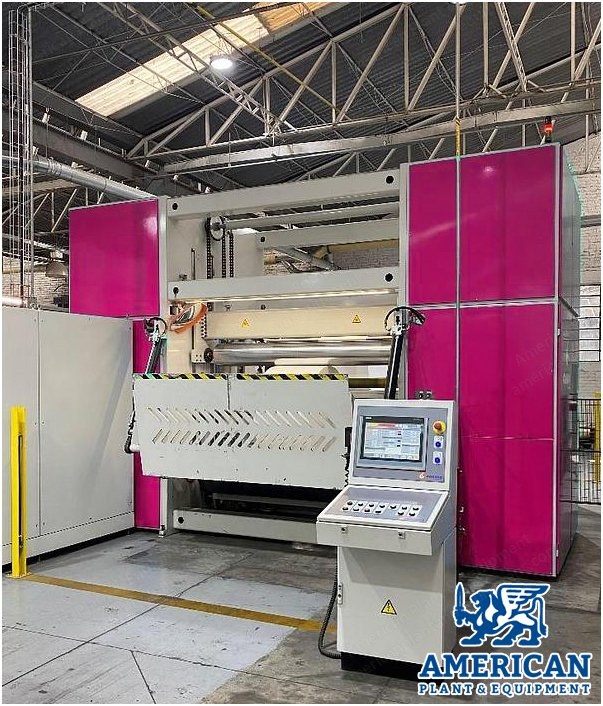

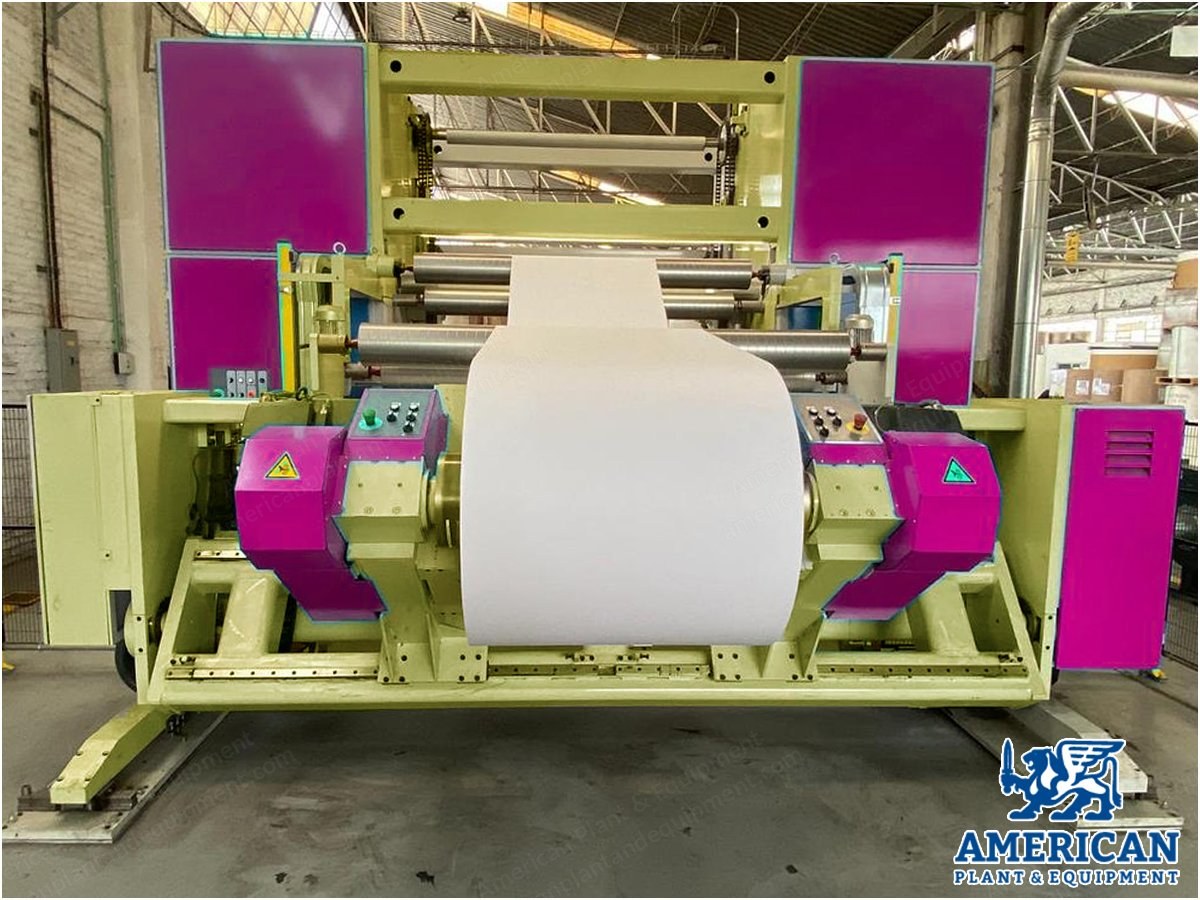

Heavy-duty Conveyq Maxi Slit 1850 slitter rewinder designed for precision slitting and controlled rewinding of wide-web flexible materials
Year 2024
Condition: used
Specifications
73 inches (1,854.2 mm) maximum web width
50 inches (1,270.0 mm) maximum roll diameter
6,614 lb (3,000 kg). roll capacity
2,625 fpm
Maximum operating speed is approximately 2,625 feet per minute
Handles parent and finished rolls from 23.6 to 73 inches (599.4 to 1,854.2 mm) wide, diameters up to 50 inches (1,270.0 mm), core sizes from 3 to 12 inches (76.2 to 304.8 mm), and roll weights up to 6,614 pounds (3,000 kg)
Features

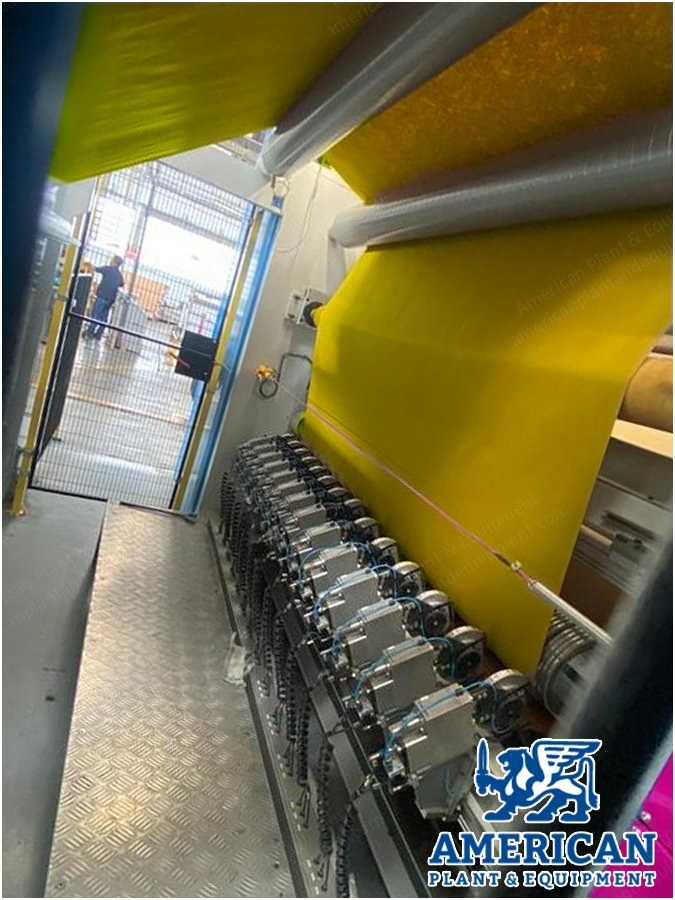

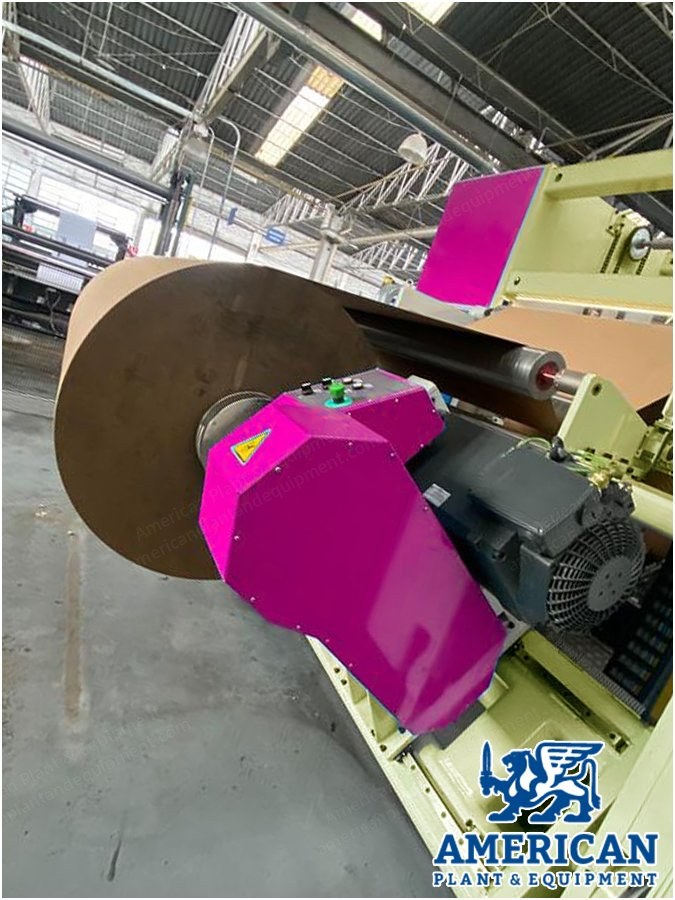

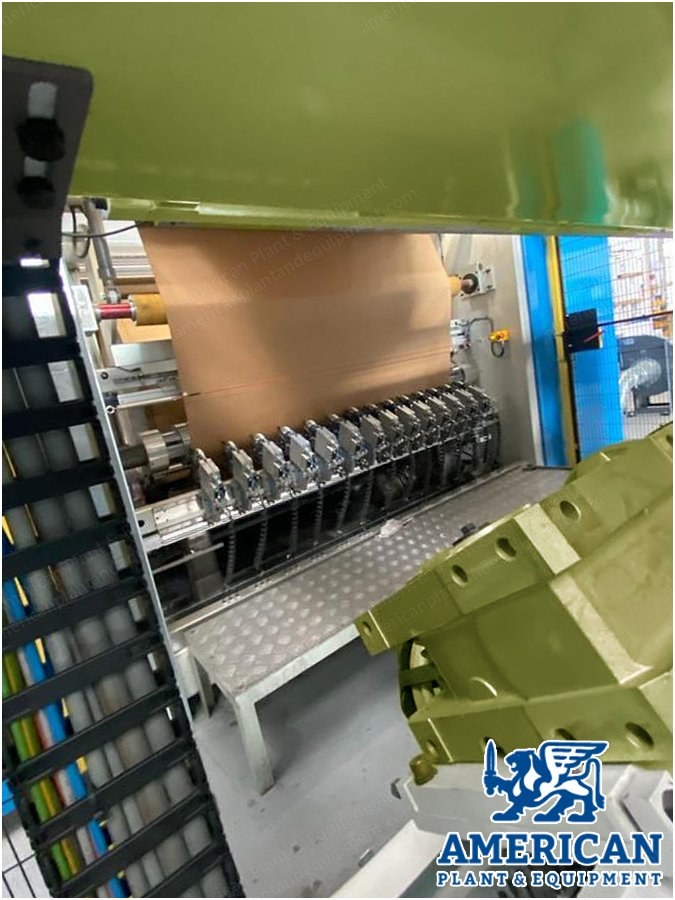

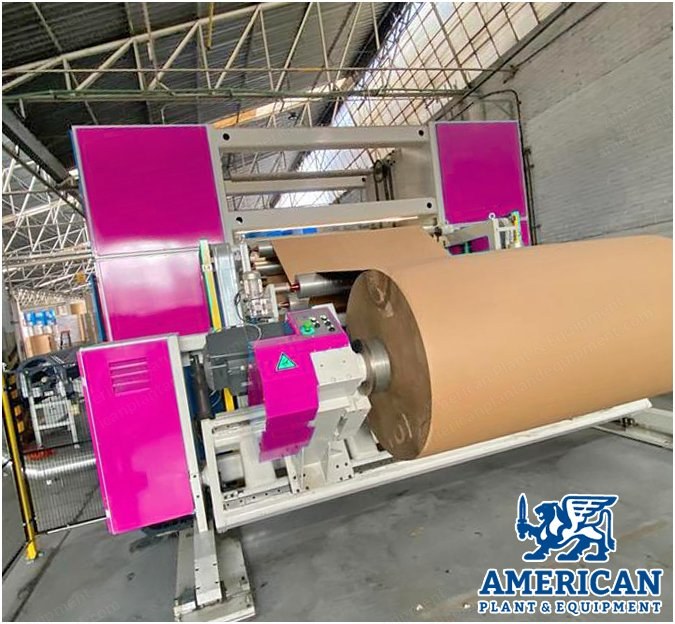

Features a shaftless floor-loading unwind, automatic web alignment, 14 shear-cut slitter sets

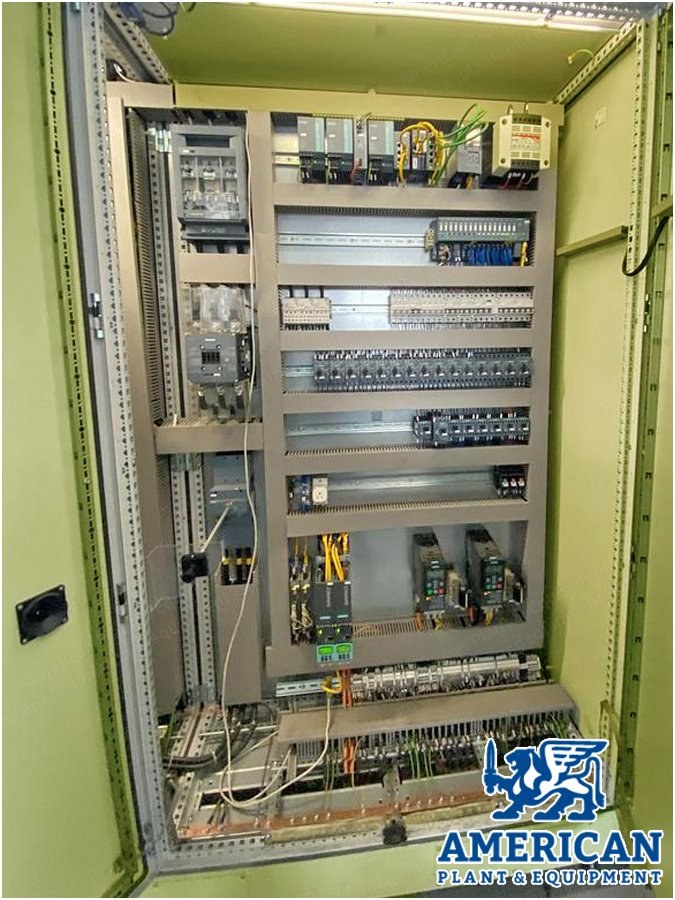

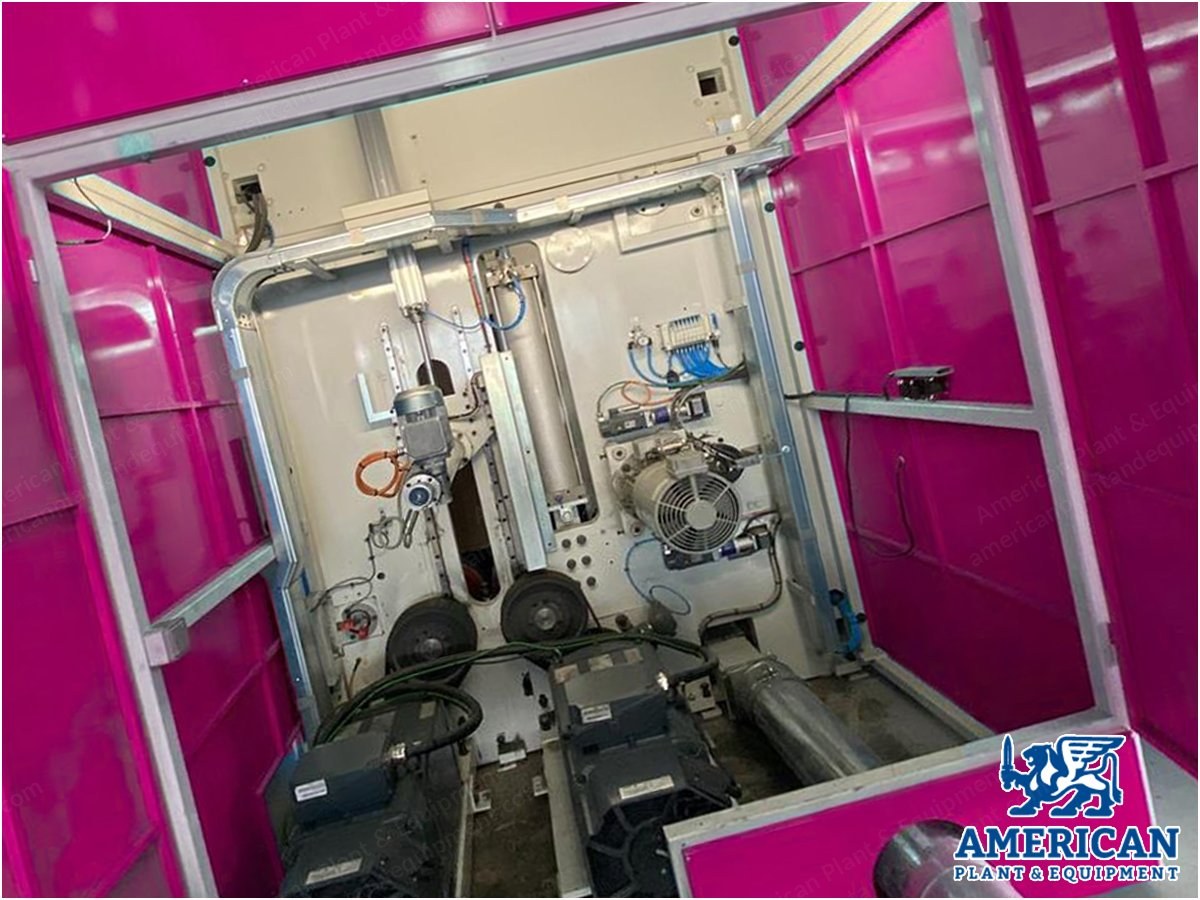

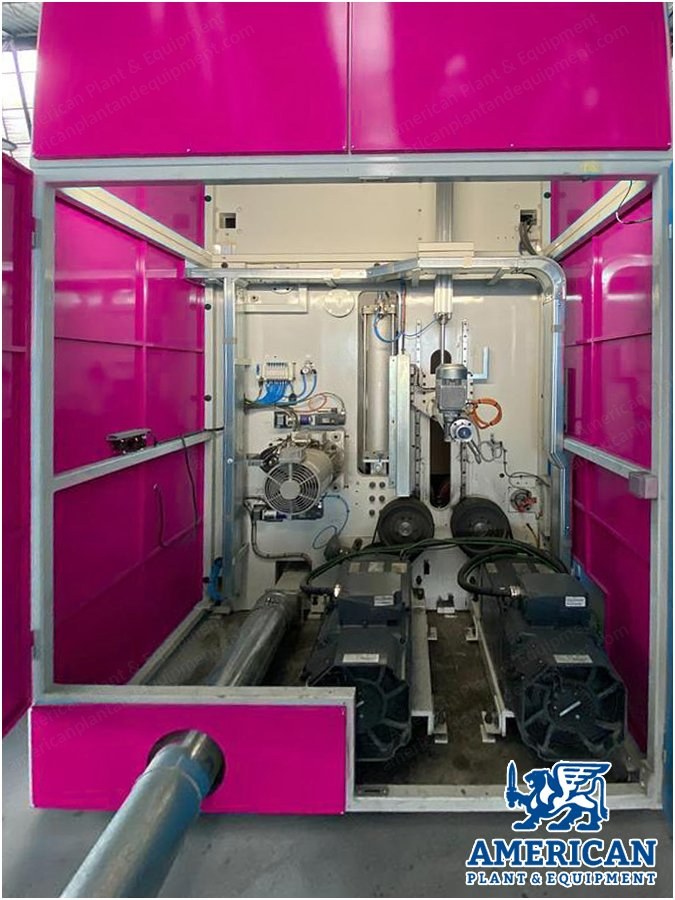

With automatic positioning, Siemens AC motors and vector drives, load-cell tension control, and touchscreen PLC operation
Included

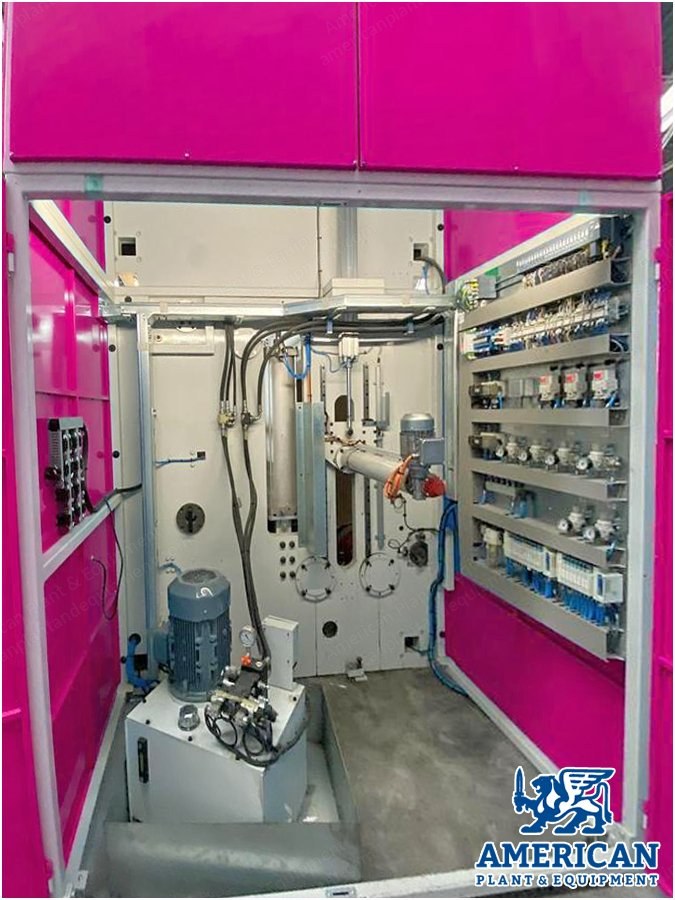

Includes hydraulic roll discharge, trim-removal suction, motorized rewinding supports, and perimeter safety guarding
