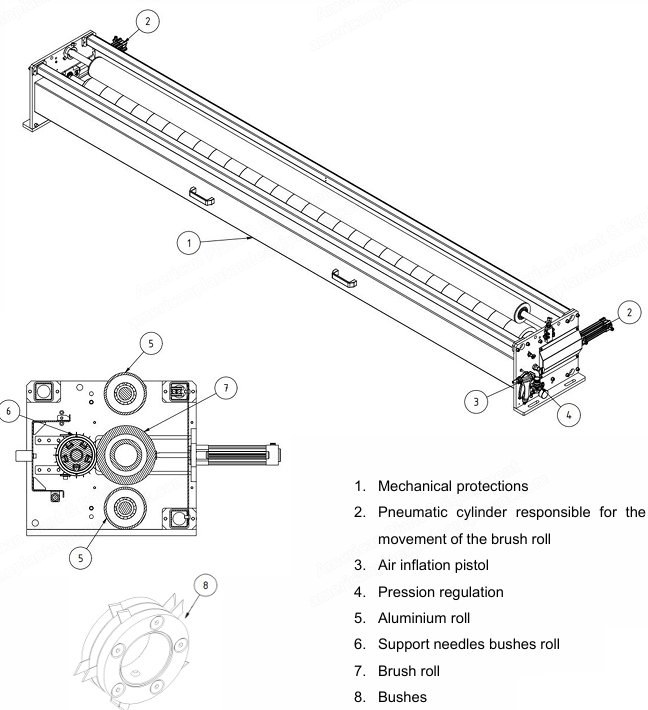

Microtear Longitudinal Film Slitter, 2000mm Working Width, 100m/min (New)

Microtear Longitudinal Film Slitter, 2000mm Working Width, 100m/min

Description

  1. Overview
    1. Designed to make longitudinal cuts in plastic films and other webs.
    2. Cutting is synchronized with line speed.
    3. Suitable for several applications, including agricultural and packaging.
    4. Allows cutting of various types of films and webs.
    5. Cutting is performed using blade holder bushings, which can be supplied according to customer specifications.
  2. Technical Information
    1. Operation is divided into two phases: preparation and cutting.
    2. In preparation, the web is passed through aluminum rollers and between the brush roller and the blade support roller; the brush roller must be kept away from the blade support roller during this process.
    3. For cutting, the brush roller is brought close to the blade support roller, and by dragging the film, cuts are made along its passage.
  3. Mechanical Characteristics
    1. Useful width: 500 to 2000 mm (19.7 to 78.7 in).
    2. Cut measurement: 10 to 30 mm (0.4 to 1.2 in).
    3. Film thickness: 0.4 to 300 microns and webs up to 3 mm (0.1 in).
    4. Material to handle: plastic.
    5. Speed: 100 m/min.
  4. Pneumatic Characteristics
    1. Compressed air pressure: 5 to 6 bar (continuous).
  6. Benefits
    1. Offers a good price-quality ratio.
    2. After-sales assistance is guaranteed by an in-house service department.
    3. Easy to use and of simple construction; integrates into production lines for tearing plastic film across different industrial applications, with simple maintenance thanks to a blade fixing system that allows easy operation.
    4. Includes a 1-year warranty.
    5. Lifetime durability, as all parts and components have lifetime replacement.
