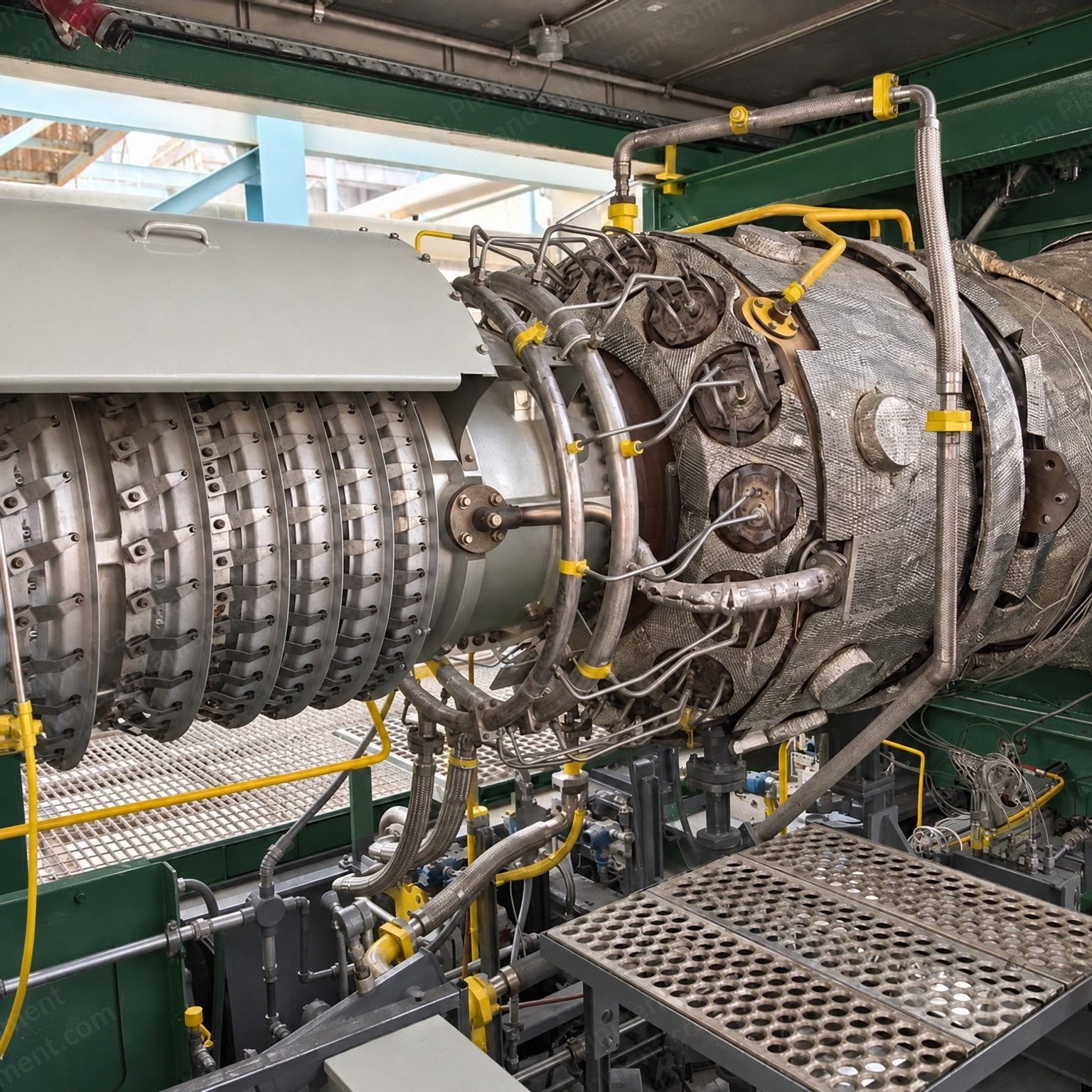

Solar Turbines, Titan 130, 2021, Gas Turbine Power Plant, 14.26 MW, 50/60 Hz, SoLoNOx Low NOx CHP Cogeneration

Solar Turbines, Titan 130, 2021, Gas Turbine Power Plant, 14.26 MW, 50/60 Hz, SoLoNOx Low NOx CHP Cogeneration

Description

  1. Overview

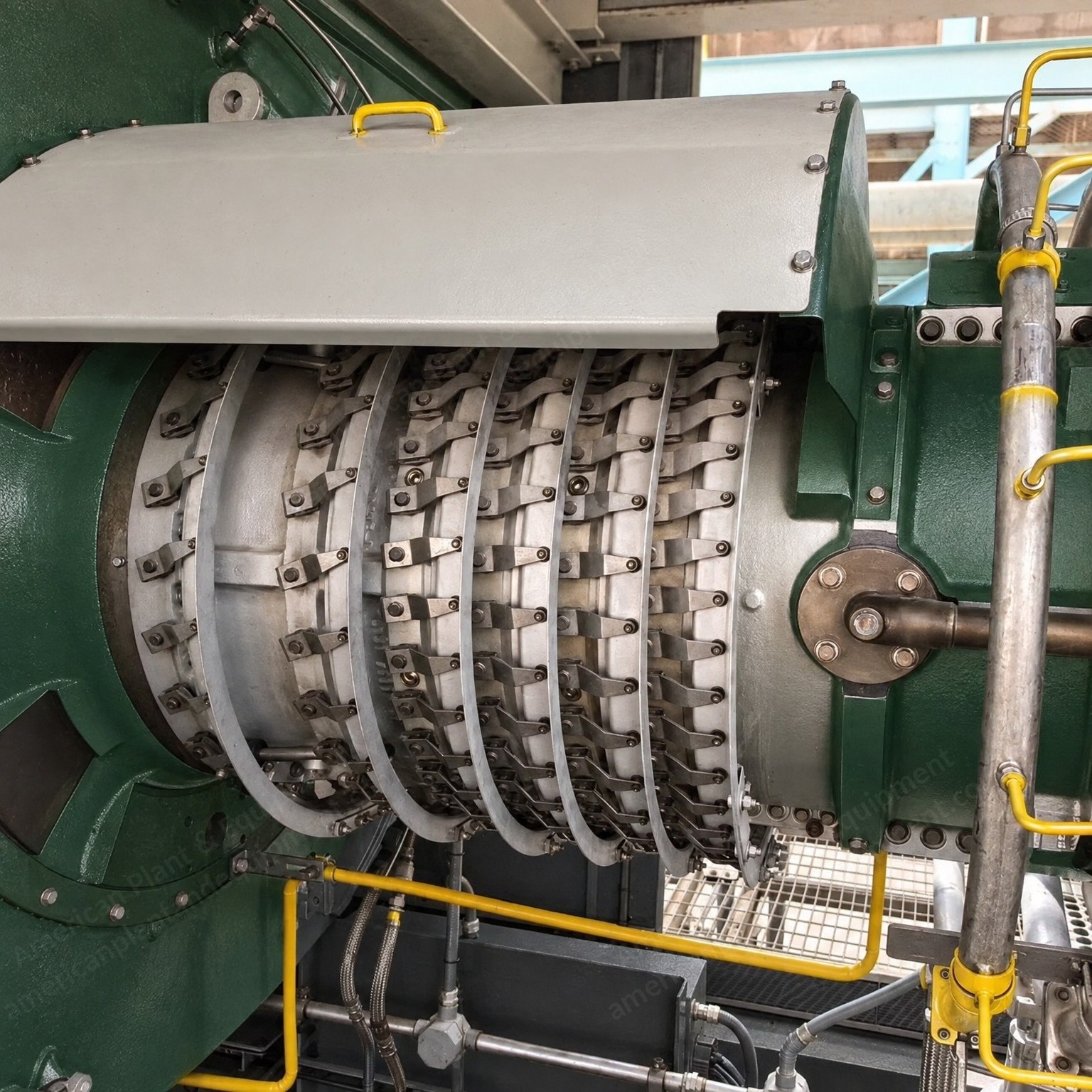

    1. Solar Turbines Titan 130 industrial gas turbine, built in 2021, offered as a used gas turbine power plant.
    2. Rated output 14.26 MW at ISO dry conditions.
    3. Supplied with a PLC intelligent control system and a high precision gearbox reduction gear unit.
    4. SoLoNOx dry low NOx premixed combustion system.
    5. Built by Solar Turbines in the United States, a Caterpillar company.
    6. Compact skid mounted design, so the on site installation cycle is short.
    7. Quantity: 1.
  2. Applications
    1. Independent power generation.
    2. Combined heat and power cogeneration.
    3. Natural gas pipeline compression drive.
    4. Oilfield power supply, industrial self owned power plants and distributed energy stations.
  3. Specifications
    1. Brand: Solar Turbines.
    2. Model: Titan 130.
    3. Year: 2021.
    4. Condition: used.
    5. Rated output power: 14.26 MW (ISO dry condition).
    6. Rated rotating speed: 11,197 rpm at 50 Hz, 11,170 rpm at 60 Hz.
    7. Maximum exhaust temperature setpoint: 1400 F (760 C).
    8. Inlet guide vane control: adjustable angle, +5.0 degrees.
    9. Combustion system: SoLoNOx dry low NOx premixed.
    10. Applicable fuels: natural gas, associated gas, landfill gas, biogas and light diesel fuel.
    11. Overall energy efficiency: over 80 percent in combined heat and power mode.
  4. Core Standard Components
    1. PLC intelligent control system.
    2. High precision gearbox reduction gear unit.
  5. Features
    1. Stable heavy duty operation for oilfield power supply, gas pipeline compression, industrial self owned power plants and distributed energy stations.
    2. Fully automatic PLC monitoring and interlock protection, with real time operating data available remotely.
    3. Matched gearbox stabilizes speed and transmits torque efficiently, with low vibration and long service life.
    4. SoLoNOx low NOx combustion technology for very low nitrogen oxide emissions.
    5. Wide fuel adaptability, including low calorific value gases, and it can be modified for hydrogen blending.
    6. Rugged structure suited to harsh outdoor, offshore and remote unattended duty.
    7. Worldwide factory service network, a standard maintenance cycle and full spare parts supply.
  6. Condition
    1. Condition: used.
