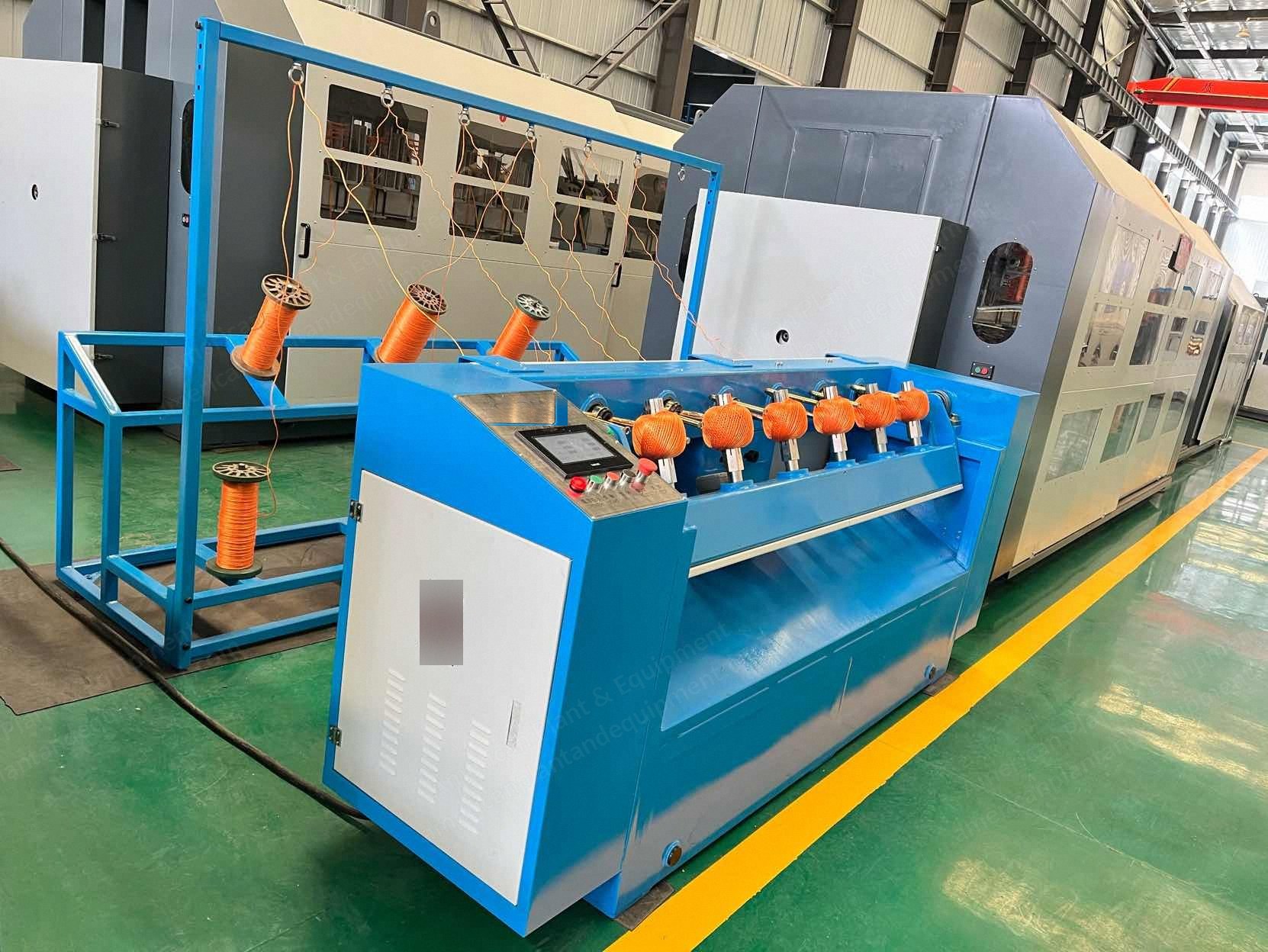

NovaStar, GN156, 6 Heads, 4 kW, 500 to 1,000 grams Ball Weight (New)

NovaStar, GN156, 6 Heads, 4 kW, 500 to 1,000 grams Ball Weight

Description

  1. Overview
    1. 6 heads ball winder, for 500 to 1,000 grams ball
    2. Number of balls: 6
    3. Operation mode: touch screen
    4. Control model: semi-automatic, controlled by PLC, driven by 3 motors driven by synchronous belt
    5. Unloading system: manually
  2. Specifications
    1. Power: 4kW (5.4 hp)
    2. Motor: 480V, 3 phase 60Hz; 220 V, 3-phase, 60 cycle
    3. Ball weight: 500 to 1,000 grams
    4. Ball diameter: 40mm to 150mm (1.6 to 5.9 in)
    5. Twine (film) size: 1mm to 5mm (around 9000 denier to 40000 denier)
    6. Twine (film) material: PP raffia, fibrilated film, cotton, jute, sisal, etc
    7. The core: metal core with 10 angles
    8. Machine dimension: 2660 x 900 x 1360mm
    9. Machine weight: 650kg (1,433 lb)
    10. Voltage: 480V 3 Phase 60Hz; 220 V, 3-phase, 60 cycle
