Siemens, SGT800DLE, 2017, 53MW Gas Turbine, 25MW Steam Turbine, 50Hz, 10500V

Siemens, SGT800DLE, 2017, 53MW Gas Turbine, 25MW Steam Turbine, 50Hz, 10500V

Description

  1. Overview
    1. Brand: Siemens
    2. Model: SGT800DLE
    3. Year: 2017
    4. Combined cycle power plant
    5. Running hours: 8,619
  2. Gas Turbine and Generator
    1. Gas turbine power: 53 MW
    2. Speed of gas turbine: 6,300 rpm
    3. Generator: Siemens, made in Germany
    4. Generator type: 1DS2093-8, built 2016
    5. Generator rating: 67,162 kVA at 0.85 power factor
    6. Speed of generator: 1,500 rpm
    7. Frequency: 50 Hz
    8. Voltage: 10,500 V
    9. Generator cooling: water cooled, 1,633 L/min, enclosure IP55, insulation class 155 (F)
    10. Generator weight: 82.2 t (181,220 lb)

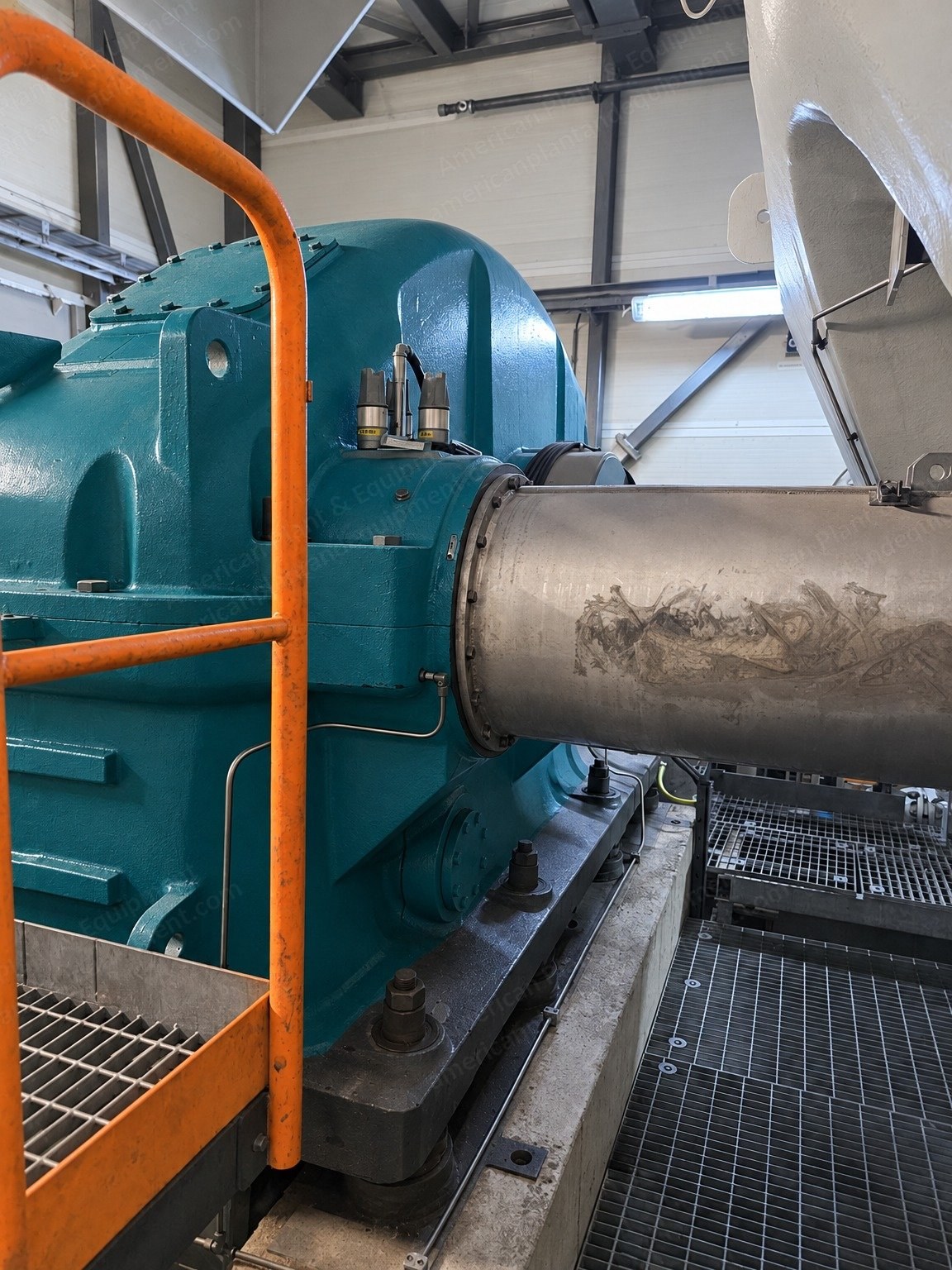

    11. Reduction gearbox: BHS Getriebe
  3. Steam Turbine and Heat Recovery Steam Generator
    1. Steam turbine power: 25 MW
    2. Steam turbine manufacturer: Hangqi

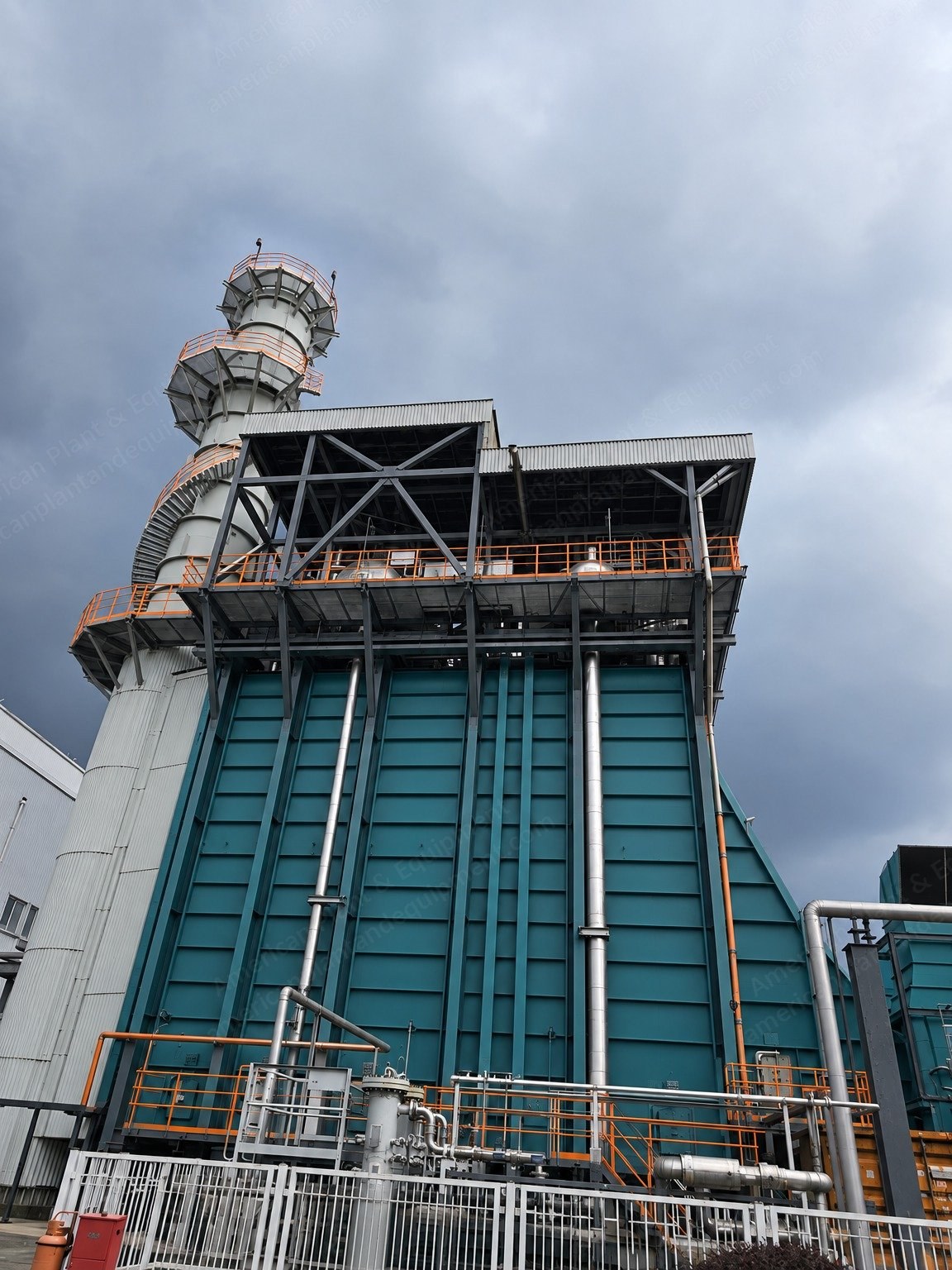

    3. Heat recovery steam generator capacity: 66.4 t/h (146,387 lb/h)
    4. Heat recovery steam generator manufacturer: Hangguo
  4. Scope of Supply
    1. Gas turbine
    2. Gearbox
    3. Alternator
    4. Cooler
    5. Lube oil system
    6. Gas supply equipment
    7. Water treatment
    8. Steam tank
    9. Steam turbine
    10. Heat recovery steam generator
    11. Steam turbine alternator
    12. Chimney
    13. Tube
    14. Fire fighting system
    15. Transformer
    16. Control system
    17. High voltage cabinet
    18. Low voltage cabinet
    19. Motor control centre
    20. High voltage components
