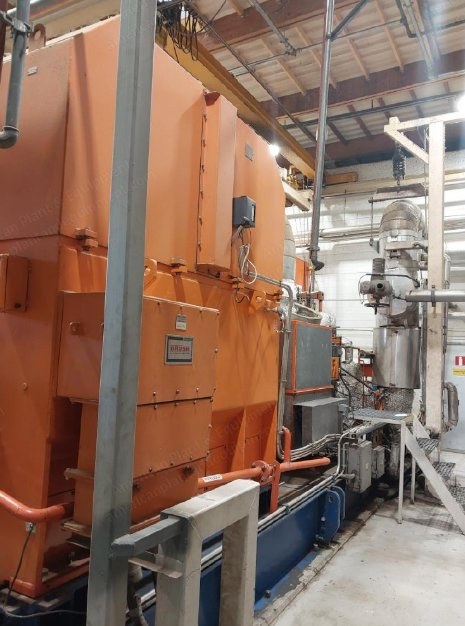

Peter Brotherhood, 13B, 1994, 3.6 MW, 42 bar, 480 deg C, 50Hz

Description

  1. Overview
    1. Peter Brotherhood 3.6 MW steam turbine generator set, 42 bar / 480 °C (896 °F)

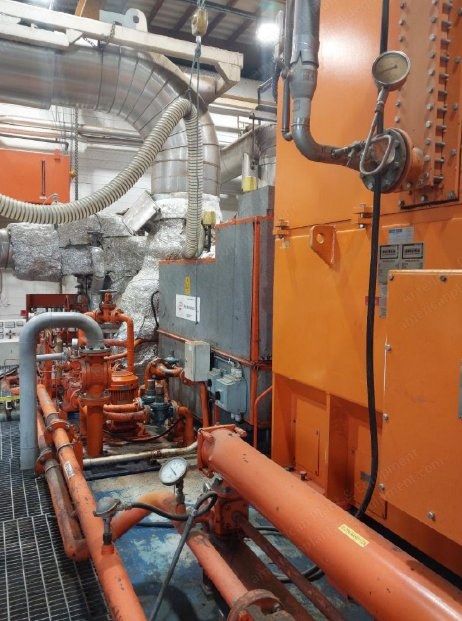

    2. Peter Brotherhood geared extraction steam turbine coupled through a reduction gearbox to a Brush synchronous generator
    3. Originally supplied for power generation and steam extraction service; suited to industrial power generation, CHP and steam process applications
    4. In normal industrial operation until June 2026, taken out of service in very good operating condition; the shutdown was not related to the condition or performance of the set
    5. Extensive overhaul and inspection program in 2023 to 2024
    6. Available for inspection now; it will be dismantled and moved to storage after about mid-November 2026
    7. Extensive technical documentation, drawings and photographs available
  2. Steam Turbine Technical Data
    1. Brand: Peter Brotherhood Ltd., England
    2. Type: geared extraction steam turbine
    3. Turbine frame: 13B
    4. Rated output: 3,692 kW (4,951 hp)
    5. Steam inlet pressure: 42 bar(a) (609 psia)
    6. Steam inlet temperature: 480 °C (896 °F)
    7. Extraction pressure: 12 / 16 / 18 bar(a) min. / normal / max. (174 / 232 / 261 psia)
    8. Exhaust pressure: 0.65 / 2.2 bar(a) normal / max. (9.4 / 31.9 psia)
    9. Turbine speed: 9,067 rpm
    10. Generator speed: 1,500 rpm
    11. Gearbox ratio: 6.045:1
    12. Rotation: counter-clockwise viewed from steam end
    13. Control system: Woodward 505E digital controller
  3. Documented Performance Points (16 bar(a) extraction)
    1. 3,692 kW: steam consumption 7.0 kg/s (55,560 lb/h), extraction steam flow 2.22 kg/s (17,620 lb/h); guarantee point
    2. 3,130 kW: steam consumption 7.0 kg/s (55,560 lb/h), extraction steam flow 3.11 kg/s (24,680 lb/h)
    3. 2,620 kW: steam consumption 7.0 kg/s (55,560 lb/h), extraction steam flow 3.90 kg/s (30,950 lb/h)
    4. 1,235 kW: steam consumption 2.5 kg/s (19,840 lb/h), zero extraction steam flow
    5. Points other than the guarantee point are stated as indicative in the original documentation
    6. Additional operating points at 12 bar(a) (174 psia) extraction pressure are in the documentation

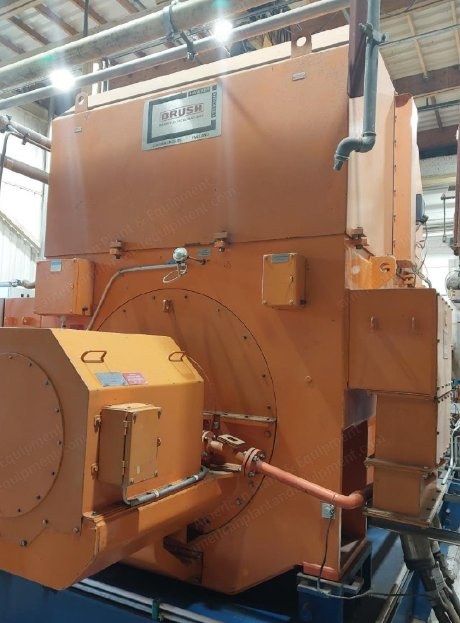

  4. Generator Technical Data
    1. Brand: Brush Electrical Machines Ltd., England
    2. Type: synchronous generator
    3. Frame size: BJHW 45L.101/4
    4. Rated output: 3,692 kW / 4,615 kVA
    5. Terminal voltage: 6.3 kV
    6. Rated current: 422.9 A
    7. Frequency: 50 Hz
    8. Speed: 1,500 rpm
    9. Power factor: 0.8
    10. Enclosure: IP44
    11. Applicable standard: BS 5000 Part 99
    12. Cooling: water-cooled air cooler, fresh water
    13. Cooling water flow: 5.4 l/s (85.6 US gpm)
    14. Cooling water inlet / outlet: 25 / 30.8 °C (77 / 87.4 °F)
    15. Air flow: 6.1 m³/s (12,925 cfm)
    16. Rated air inlet temperature: 40 °C (104 °F) at 25 °C (77 °F) cooling water inlet
    17. Year: 1994
  5. 2023 to 2024 Overhaul
    1. Covered the Peter Brotherhood Frame 13B turbine, gearbox, valves and Brush generator
    2. Turbine dismantled, cleaned and inspected, including extensive NDT examinations
    3. Turbine rotor high-speed balanced through the complete operating speed range up to 9,067 rpm
    4. Final bearing-housing vibration: 0.282 / 0.277 mm/s RMS, against a permissible 0.450 mm/s
    5. Follow-up condition monitoring classified the turbine, gearbox and generator in Condition Class A
    6. Overhaul work report and rotor balancing test report available
  6. Control and Auxiliary Equipment
    1. Turbine monitoring and control panels
    2. Generator measurement and synchronization panels
    3. Turbine control system: Woodward 505E digital controller
    4. Vibration monitoring: Sensonics monitoring system
    5. Generator transformer and associated electrical equipment available; final scope of supply to be confirmed
  7. Condition
    1. Very good operating condition; stopped since June 2026
    2. Detailed maintenance, overhaul, control and instrumentation documentation and original drawings available to serious buyers
