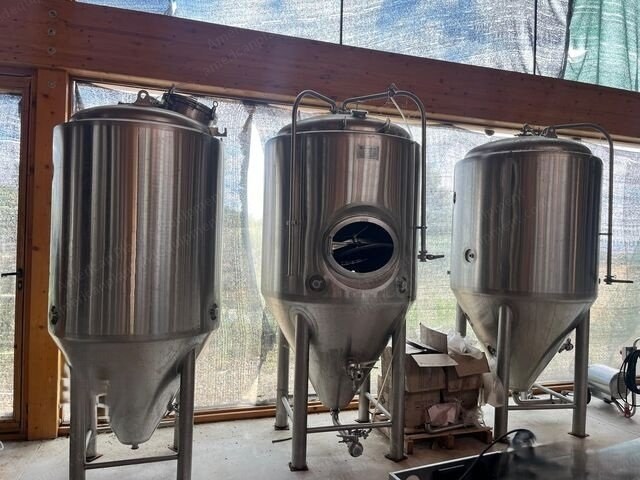

Shandong Tiantai, Fermentation and Storage Cellar, 2019, 3 Tanks, 1000L and 820L, SS304, 4-5 Bar

Shandong Tiantai, Fermentation and Storage Cellar, 2019, 3 Tanks, 1000L and 820L, SS304, 4-5 Bar

Description

  1. Overview
    1. Shandong Tiantai 2x 1000 L, 1x7BBL (820 L) fermentation and storage cellar.
    2. Year of construction: 2019.
    3. Condition: used.
    4. Update: 15.09.2026.

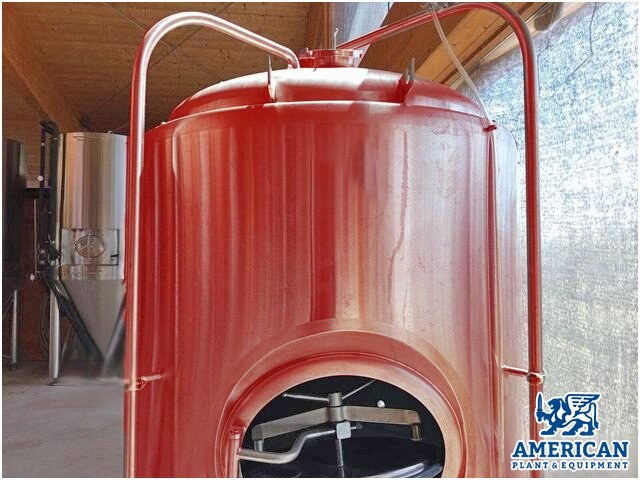

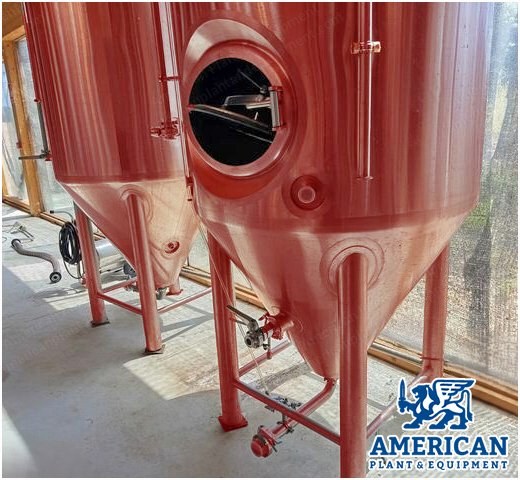

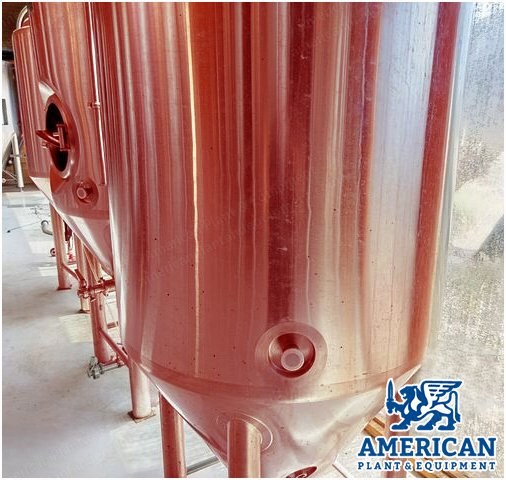

    5. Set of three cylindro-conical fermentation tanks built by Shandong Tiantai in 2019 - two of 1,000 litres (264.2 gal) and one of 7 BBL (approx. 820 litres).

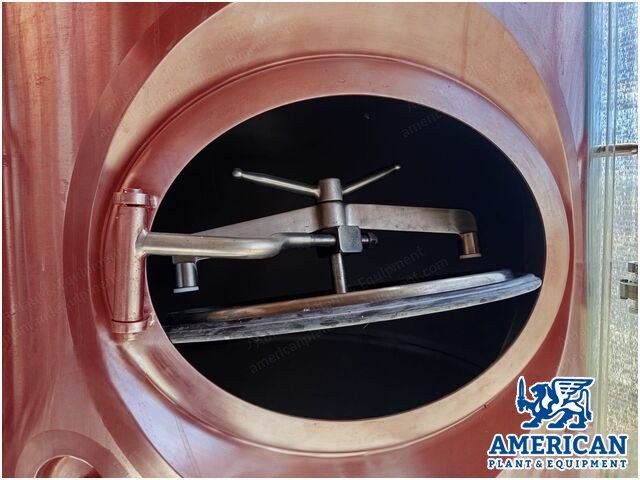

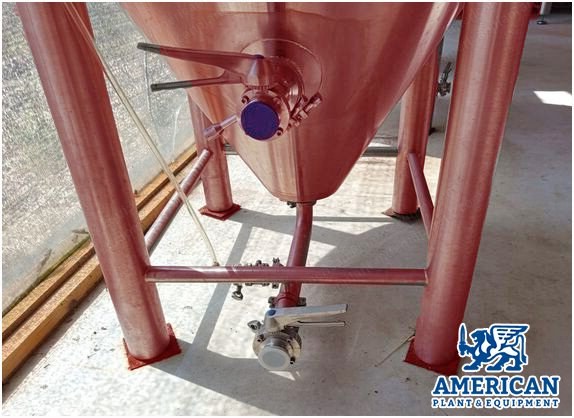

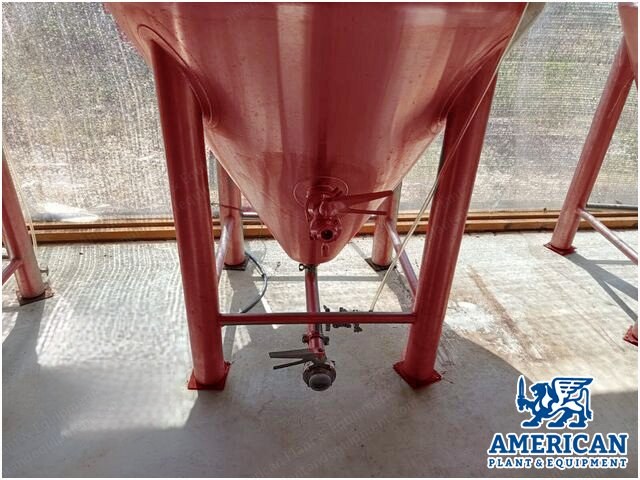

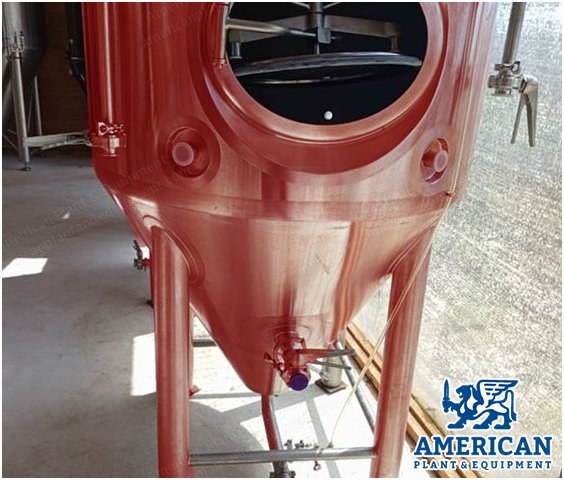

    6. All three vessels are built in stainless steel SS304, rated for 4 to 5 bar working pressure and fitted with a cooling jacket with glycol inlet and outlet, a level gauge, an inward-opening side manway and a bottom outlet valve.

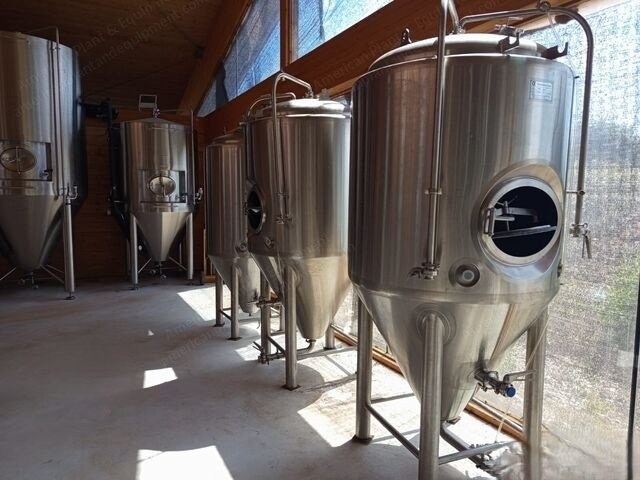

    7. The tanks stand on welded legs and are still installed, where they can be viewed by appointment.
    8. A compact fermentation block for a craft brewery adding or replacing tank capacity.
  2. Technical Data
    1. Year of manufacture: 2019.
    2. Units: 3 tanks - 2 x 1,000 L and 1 x 7 BBL (approx. 820 L).
    3. Dimensions (approx.): Ø1210 x H2550mm (1,000 L tanks), Ø1060 x H2550mm (7 BBL tank).
    4. Material: stainless steel SS304.
    5. Design: cylindro-conical, isobaric pressure vessels on welded legs.
    6. Working pressure: 4 to 5 bar.
    7. Cooling: cooling jacket on every tank, glycol inlet and outlet.
    8. Fittings: level gauge, inward-opening side manway, bottom outlet valve.
  3. Scope of Delivery
    1. Fermentation tank, Shandong Tiantai, 1,000 L (264.2 gal), cylindro-conical, SS304, cooling jacket with glycol inlet and outlet, level gauge, 4 to 5 bar, 2019.
    2. Fermentation tank, Shandong Tiantai, 1,000 L (264.2 gal), cylindro-conical, SS304, cooling jacket with glycol inlet and outlet, level gauge, 4 to 5 bar, 2019.
    3. Fermentation tank, Shandong Tiantai, 7 BBL (approx. 820 L), cylindro-conical, SS304, cooling jacket with glycol inlet and outlet, level gauge, 4 to 5 bar, 2019.
  4. Condition
    1. Used, still installed at the current site.
    2. Viewing possible by appointment.
  5. Availability
    1. Immediately available.
  6. Specifications
    1. Working pressure: 4 to 5 bar.
  7. Further Specifications
    1. Quantity: 1.
