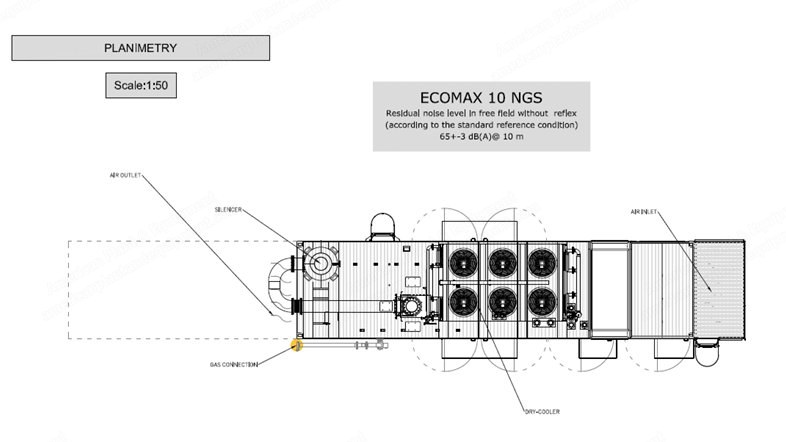

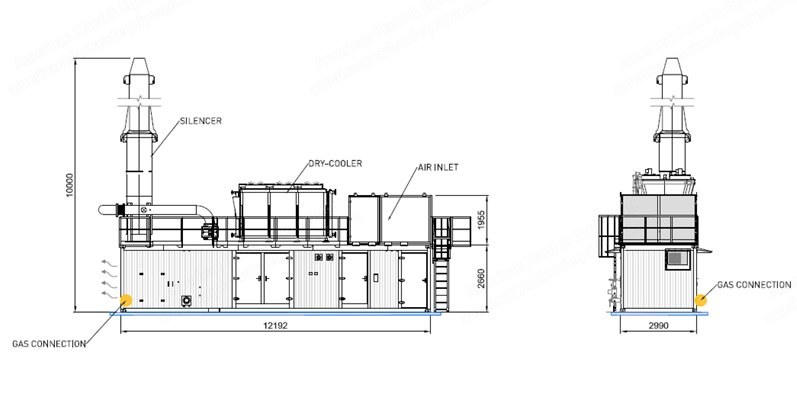

Description Overview New containerised units (new containers and fittings) with reconditioned 1 MW engines New power plants with reconditioned generating sets Ecomax 10 NGS Ecomax G2P NGS with JGS 320 400V New container, new fittings, DIA.NE XT4 and fully overhauled generating set, like new Drawings and engine data sheet are available Option to switch to the EGHE 200°C (392°F) + by-pass configuration Ecomax version: core Machine: generator Brand: Jenbacher Model: C02 Model description: JMS 320 GS-N.L Year of manufacturing: 2023 Conditions: reconditioned Immediately available Specifications Noise level: 70dB @10m (32.8 ft) Engine model: JGS 320 CXX Gross electrical power: 1.067 kW to be defined according to local grid code Standards: CE Frequency: 50 Hz Feeding gas: biogas/NGS Container dimensions: 12.192x2.438x2.896mm Chimney height: 6m (19.7 ft) Altitude: 500m (1,640.4 ft) A.S.L. Minimum external temperature: -10 °C Maximum external temperature: 35 °C (95°F) Class of resistance to corrosion: C3-M Oil system: dail tank 200L Control and supervision: AB standard Generator breaker panel: included EGHE connection: engine side By-pass: excluded Ecomax CE FCA, 70dB @10m (32.8 ft), -10 °C...+35 °C (95°F), not insulated Gas type: biogas/NGS Output frequency: 50 Hz Output voltage: 400 V Rated power: 999 - 1.067 kW Options For Ecomax Extra for high altitude <35 °C (95°F) <1990m (6,528.9 ft) A.S.L. Extra for hot climate <40 °C (104°F) <500m (1,640.4 ft) A.S.L. Extra for corrosive environment C4-M Catalyst CO<800m (2,624.7 ft) NM3 HCOH<150 mg/Nm3 not insulated Thermal recovery only from JW circuit 65 °C - 85 °C (149 to 185°F) Galvanized parapets and ladders Structure for exhaust gas sampling Scope Of Supply JMS 320 GS-N.L Long block + alternator with ABB Unitrol + new control panels with DIA.NE XT4 Lead Time Lead time: 6 months Quantity Quantity: 4
