NovaStar, T-S601, Cardboard Corner Board Protection Machine, 60 m/min, 1.5-10mm Thickness, 25x25mm - 100x100mm (New)

NovaStar, T-S601, Cardboard Corner Board Protection Machine, 60 m/min, 1.5-10mm Thickness, 25x25mm - 100x100mm

Description

  1. Overview
    1. Edge board machine with V board function
    2. Function: V profile / L profile
    3. Servo cutter: 1 set (new design)
    4. Automatic stacking machine: 1 set
    5. Applicable glue type: PVA / PVC / white latex / starch glue
    6. Service engineer available to service machinery overseas
    7. Warranty 1 year after machine arrived
  2. Specifications
    1. Max speed: 60m per min
    2. Max speed: 60 to 65 m/min
    3. Capacity: 60 m/min
    4. Edge board size: 25 x 25mm - 100 x 100mm
    5. Corner board leg width: 25 x 25mm - 100 x 100mm
    6. Cutting thickness: 1.5mm to 10mm (0.1 to 0.4 in)
    7. Corner protector thickness: 1.5 to 10mm (0.1 to 0.4 in)
    8. Cutting thickness: 1 to 10mm
    9. Min cutting length: 50mm (2.0 in)
    10. Min. cutting length: 40mm (1.6 in) - 9000
    11. Power: 15KW (20.1 hp) (7.5KW main motor, 5.5KW servo motor)
    12. Total power (W): 14KW (18.8 hp)
    13. Voltage: 230V / customized
    14. Voltage: 230V 3 phase 60Hz
    15. Voltage: 230V 3Phase 60Hz
    16. Dimension (L x W x H) around: 33m x 2m x 3m per set
    17. Weight: around 4500kg (9,921 lb)
    18. Paper stand: 11 + 1 layer L type stand
    19. Glue machine: 11 + 1 layer glue device
    20. Paper roll stands: 12 sets, straight pneumatic type
    21. Glue machine: double size glue machine
    22. Core diameter of paper reel: 76mm (3 inches)
    23. Cutting precision: ±0.5mm
    24. Control system: Delta brand
    25. Container: 1 x 40GP
    26. Lead time: 40 days
    27. Main motor: 7.5KW (10.1 hp) 1 unit
    28. Main motor: 7.5KW (10.1 hp), 1 unit
    29. Main motor: 7.5KW (10.1 hp) (1 unit)
    30. Voltage: 230V 3Phase 60Hz
  3. Machine Parts
    1. 1 paper roll stand, straight line type 12 units
    2. 2 gluing systems, standard double side glue 1 unit
    3. 3 forming wheels, 45# steel, high-frequency heat treatment and chrome plated 10 units
    4. 4 cylinder Φ 63 x 50-50 10 units
    5. 5 pressure regulating valve SAZN 10 units
    6. 6 manual reversing valve SAZN 10 units
    7. 7 main motor 7.5KW (10.1 hp) 1 unit
    8. 8 reducer 1 unit
    9. 9 convey or device 1 unit
    10. 10 stacking device 1 unit
    11. 11 cover paper device 1 unit
    12. 12 servo cutter 1 unit
  4. Control System
    1. 13 touch screen Delta 1 unit
    2. 14 frequency converter Delta 1 unit
    3. 15 servo driver Delta 1 unit
    4. 16 PLC Delta 1 unit
    5. 17 2000PBR encoder Omron Japan 1 unit
    6. 18 servo motor Delta 5.5KW (7.4 hp) 1 unit
    7. 19 relay Schneider 4 units
    8. 20 general relay switch Schneider 1 unit
    9. 21 air switch 1 unit
  5. Included Items
    1. Spare part: 5 set cutting blade
    2. 5 meter glue pipe 3 set cutting pad
    3. 22 blades for cutter 5 units
    4. 23 glue pipe for glue scratch 5 meters
    5. 24 plastic pad for cutter 5 units
    6. 25 installation toolbox 1 unit

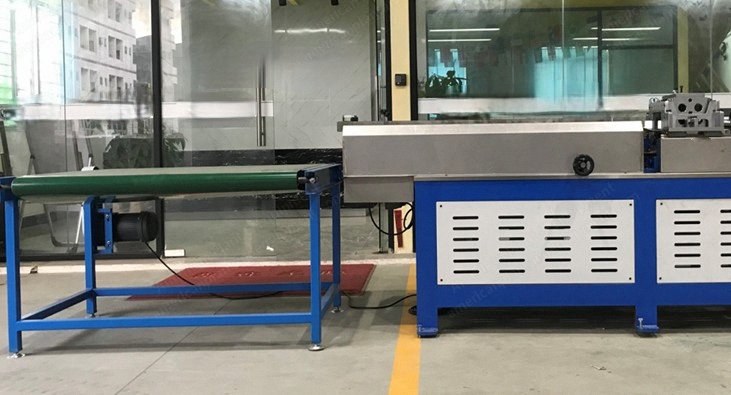

  6. Stacking, Conveying and Device
    1. PVC belt as stacking table
    2. Photoelectric eye & counter relay records the edge board of stacking
    3. Belt table size: 2000 x 1200mm
    4. Stacking qty (each stack): 1-15 units/stack
    5. Newest design as cutter & conveyor two in one, more convenience to stacking short corner boards
  7. PLC and Servo Control Cutter
    1. Newest design servo control cutter, using cam device and put the servo motor in the bottom; the device is smaller and working stable
    2. Using newest aviation grade aluminum material for the cutter structure, together with slider device for the whole set cutter, make it more stronger strengthen but with more lighter weight; with using servo motor, when cutting in high speed, make sure the machine working more stable
    3. The cutter are available to adjust the pressure (on the top of the screws)
    4. Servo driver precise control system: control the cutter device

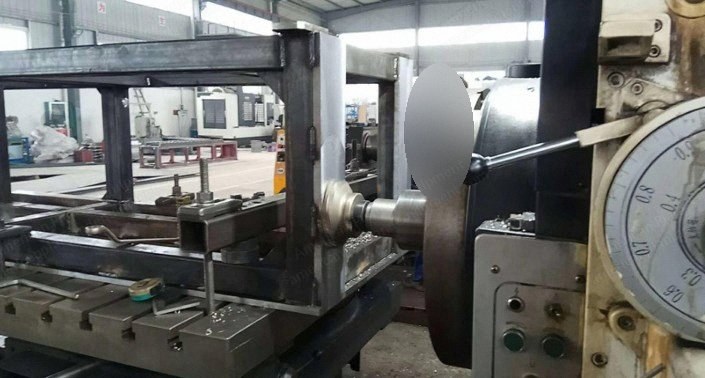

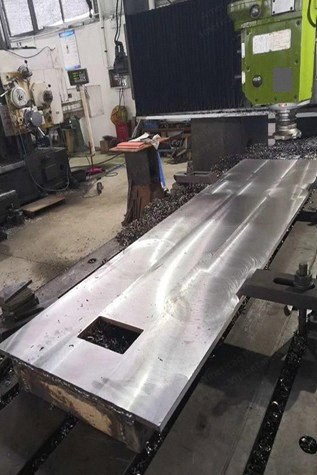

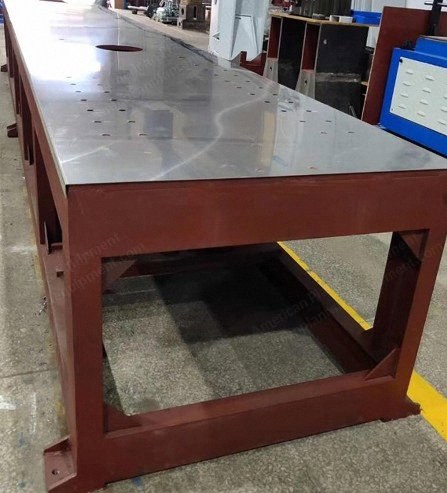

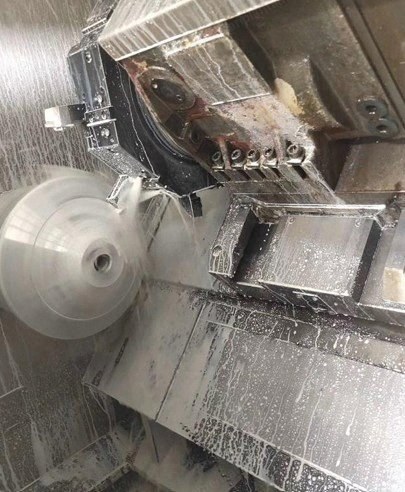

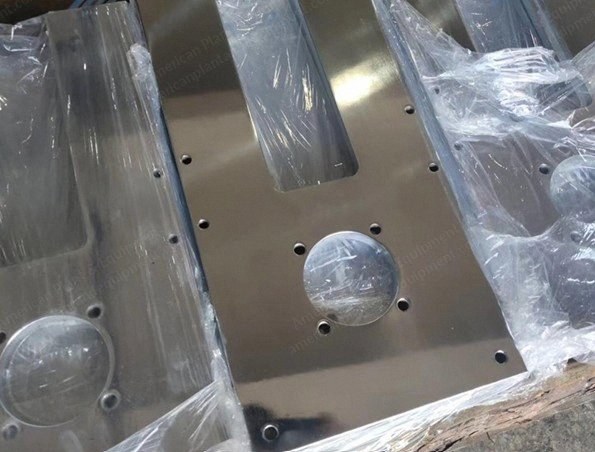

    5. Using CNC machine milling the cutter table and edge side of machine frame, so the machine will have higher precision and match more better
    6. Cutting more quiet and almost no shake
  8. Main Machine (Forming Rollers)
    1. Remark: the covers are customized, not standard configuration
    2. 10 sets pneumatic pressure control forming rollers; all frame and roller are chromed plate and pressure adjustable; between the forming roller there have auxiliary forming wheel and two sets of heating devices; make sure the machine could make nice corner board under high speed

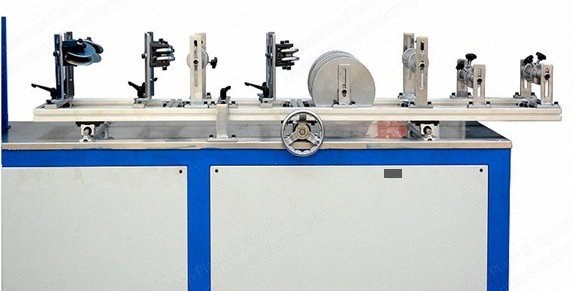

  9. Cover Paper Machine
    1. Newest design cover paper device, all roller adjustable and chromed plated, with hand wheels and easy to make V profile corner board and L profile corner board (unbalance)
  10. Glue Machine

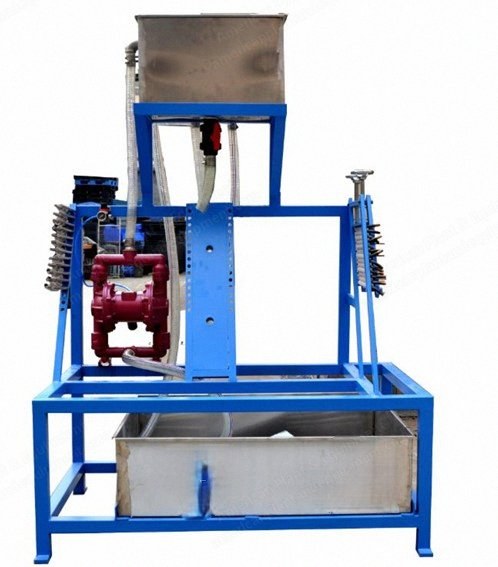

    1. Pneumatic water pump for inner paper and top paper glue system; double side glue with glue scratch device; inner paper max 11 layers paper and 1 layer top paper; glue recycled
  11. Paper Roll Stand

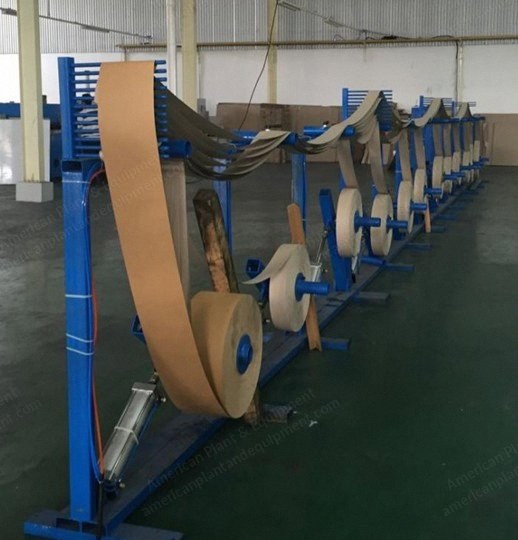

    1. Straight line roll stand with pneumatic control (around 17m length)
