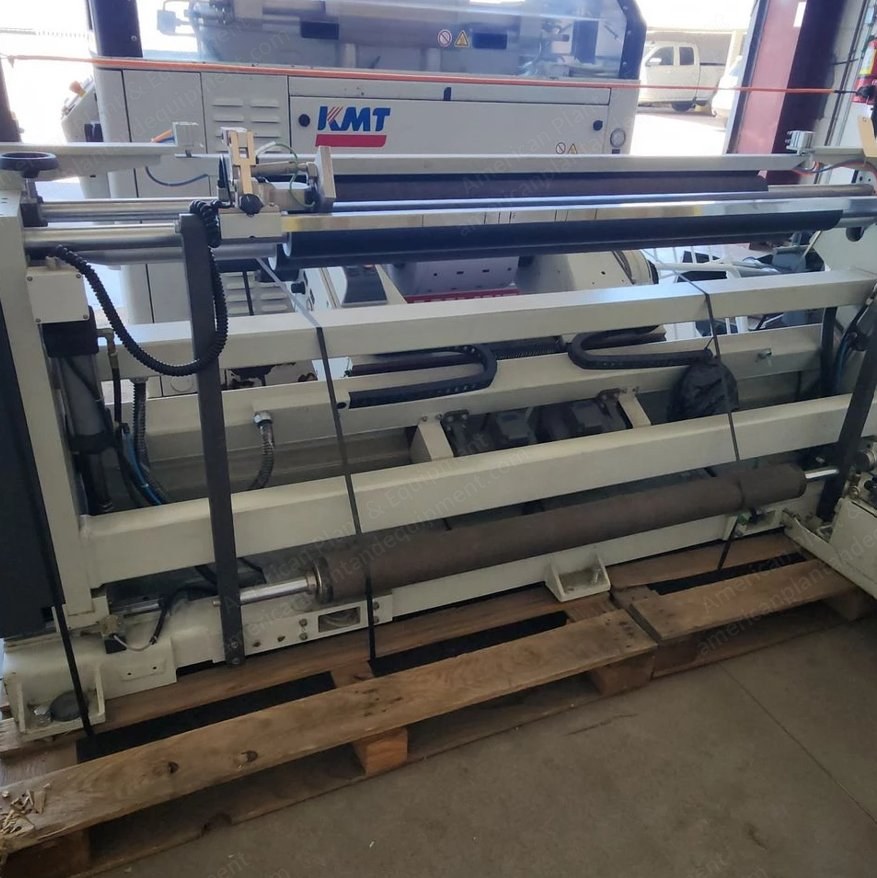

Karlville, HS-PRO-1300, 2021, Slitter Rewinder, 1300mm Width, 500 m/min Speed

Karlville, HS-PRO-1300, 2021, Slitter Rewinder, 1300mm Width, 500 m/min Speed

Description

  1. Overview
    1. Handles a maximum web width of 1300mm (51.2 in).
    2. Unwind roll diameter is independent, up to 1000mm (39.4 in).
    3. Unwind roll weight up to a maximum of 1,200 kg (2,645 lbs).
    4. Unwind and finished roll cores are 3″ (76.2 mm) I.D., with 6″ (152.4 mm) I.D. available as an option.
    5. Finished roll diameter runs to a maximum of 610mm (24.0 in).
    6. Slit width is 50mm (2.0 in) and up, lower upon request.
    7. Knife options include shear, razor and pneumatic shear with a tangential web path.
    8. Winding tension is 0.5 PLI to 2.5 PLI standard.
    9. Maximum machine speed is 500 m/min depending on material type and quality.
    10. Runs shrink sleeve materials including PE, PP, PET, PVC films, papers and laminates.
    11. Rigid films 10~200 micron and soft films 12~300 micron.
  2. Specifications
    1. Unwind roll diameter: 1000mm (39.4 in) independent.
    2. Unwind roll weight: max 1,200 kg (2,645 lbs).
    3. Unwind roll cores: 3” I.D. / 6” I.D. (option).
    4. Finished roll diameter: max 610mm (24.0 in).
    5. Finished roll cores: 3” I.D. / 6” I.D. (option).
    6. Slit width: 50mm (2.0 in) and up (lower upon request).
    7. Knifes: shear, razor & pneumatic shear with tangential web path.
    8. Winding tension: 0.5 PLI to 2.5 PLI standard.
    9. Machine speed (max): 500 m/min (depending on material type/quality).
    10. Shrink sleeve materials: plastic films made from PE, PP, PET, PVC, papers and laminates (depending on material type and thickness).
    11. Rigid films: 10~200 micron / soft films: 12~300 micron.
    12. Slit width: 50mm (2.0 in) and up
    13. Unwind roll cores: 3" I.D. (6" I.D. optional)
    14. Finished roll cores: 3" I.D. (6" I.D. optional)
  3. Condition
    1. The machine can be seen under power for an inspection.
  4. Further Specifications
    1. Model: HS-PRO-1300
    2. Year: 2021
