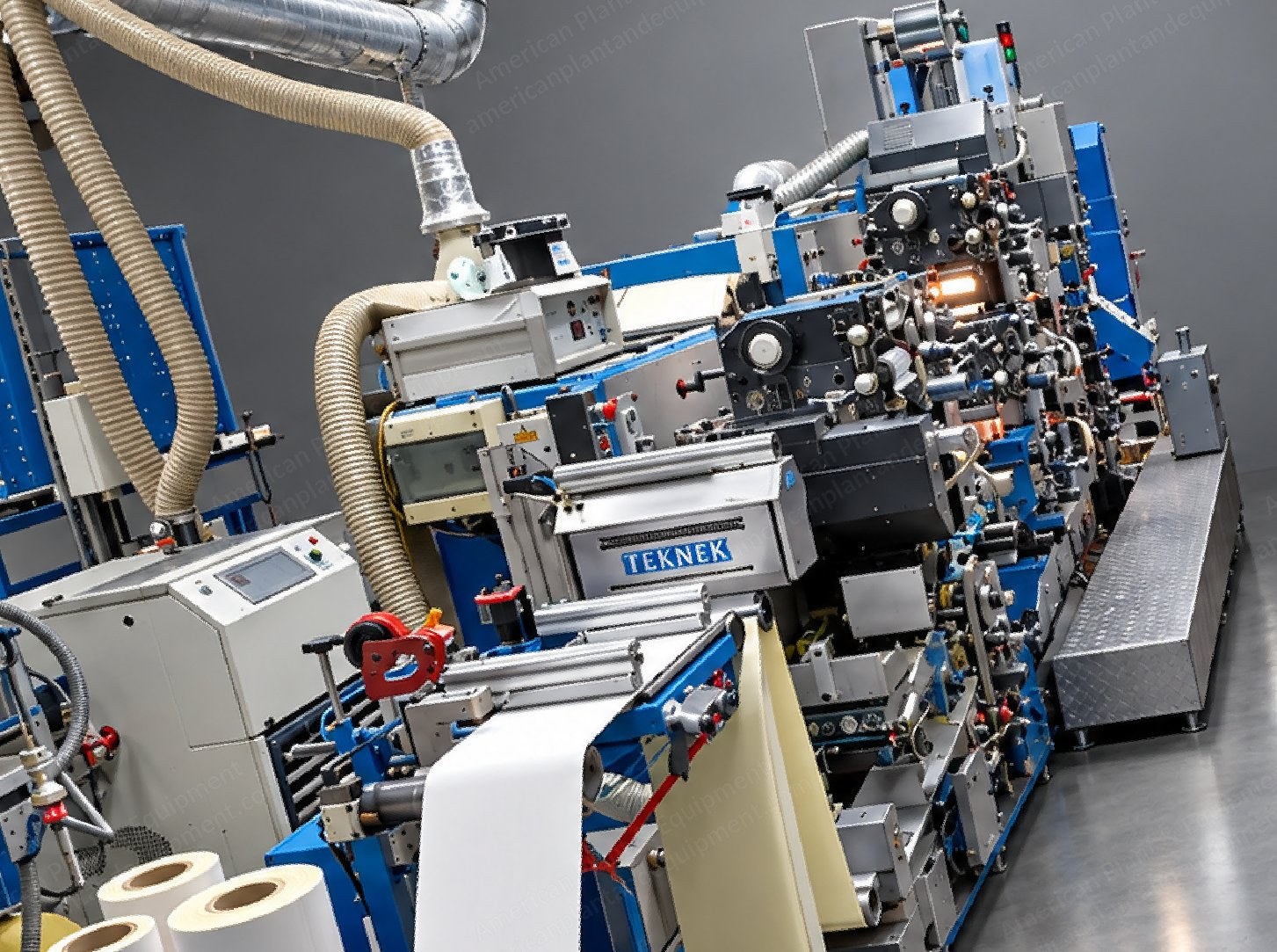

Graficon, R 200, 2005, 9-Color Flexographic Printing Machine, 222mm Max Width

Graficon, R 200, 2005, 9-Color Flexographic Printing Machine, 222mm Max Width

Description

  1. Overview
    1. Graficon Gallus R200 9-color flexographic printing machine
    2. Brand: Graficon Maschinenbau
    3. Model: R 200
    4. Year: 2005
    5. Number of colors: 9
    6. 1 UV rotary screen + 7x UV letterpress + 1 UV flexo
    7. Rotary hot stamp unit (after 5th unit)
    8. Printing to glue / liner (2 units)
    9. 2x rotary die cutting unit
    10. Longitudinal slitting
  2. Specifications
    1. Max. width of material: 222 mm (8.7 in)
    2. Max printing width: 205 mm (8.1 in)
    3. Magnetic cylinders: 72, 78, 84, 90, 96, 132, 136 teeth
    4. Printing cylinders: 72, 78, 84, 90, 96, 103, 110, 117, 124, 132 teeth
    5. Collars for screen: 110, 117, 124, 132, 144, 156, 168 teeth
    6. Cores for hot stamp: 72, 78, 84, 96, 103, 110, 117, 124 teeth
  3. Condition
    1. Functional, condition and wear and tear according to its age, well maintained
    2. Can be seen running
  4. Availability
    1. Immediately
