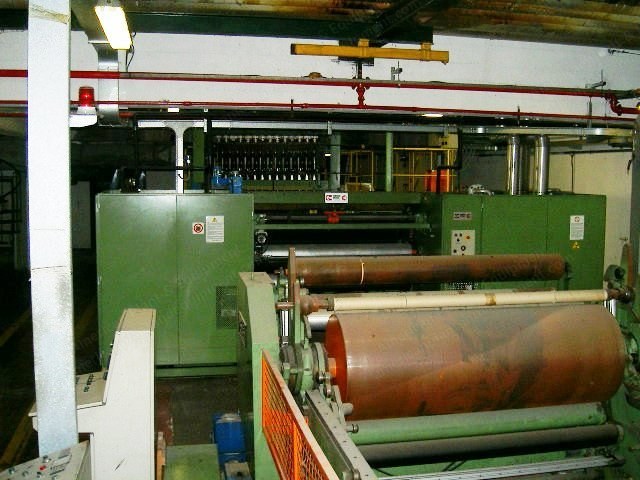

Spunbonding Line, 1800mm Working Width, 350 to 400 kg/h Capacity, PP Nonwoven Production

Spunbonding Line, 1800mm Working Width, 350 to 400 kg/h Capacity, PP Nonwoven Production

Description

  1. Overview
    1. Spunbonding line for nonwoven production with pp.
    2. Working width 18000 mm.
    3. Weight from 12 to 300 gr/mq.
    4. Capacity from 350 to 400 kg/h.

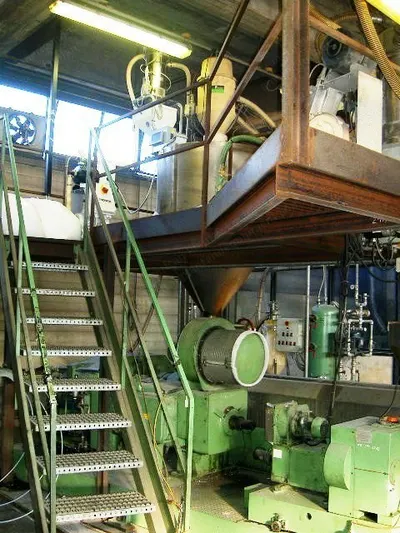

  2. Mixer And Feeder
    1. Mixer feeder Moretto Yoc 2001.
    2. One station of mixer.
    3. Three volumetric proportioner.
    4. One unity aspiration.

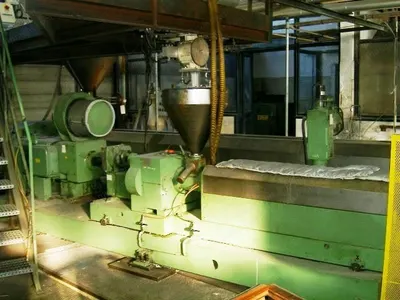

  3. Extruder
    1. O.M.B. Battaglio extruder, Yoc 2001.
    2. Capacity 450 kg/h.
    3. Material pp.
    4. Electrical power 195 kW.
    5. Diameter of screw 150 mm.
    6. Line speed 120 m/m.
  4. Filtration
    1. Filter automatic clean Cofit Yoc 2001.

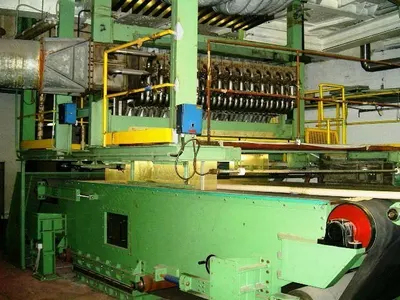

  5. Spinning System
    1. Spinning chest system by Ima Yoc 2001.
    2. Fourteen spinning positions.
    3. Fourteen plus two gear pumps.
    4. Eighteen spins group.
  6. Quench And Air Conditioning
    1. Fifteen quench.
    2. Fourteen ejector.
    3. Air conditioning quench.
    4. Capacity air aspiration 20000 m3/h.
    5. Temperature water 7 °C.
    6. Capacity exchange 205000 kcal/h.
  7. Forming Belt
    1. Forming belt Vecom width 2000 m/m.
    2. Belt Cofpa type Monostat 23 PC 850.
    3. Aspiration by Savio type SCRD 140.

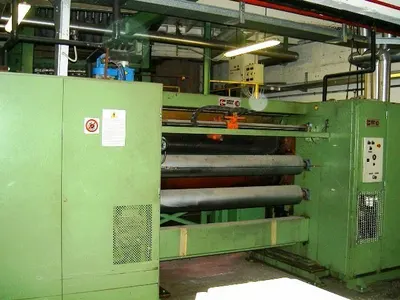

  8. Calendar
    1. Feeder calendar belt Vecom.
    2. Hydraulic calendar by Comerio Yoc 1997.
    3. Two cylinders diameter 360 x 1900.
    4. Speed from 5 to 100 m/m.
    5. Temperature 280 °C.
    6. Cylinder pressure from 50 to 100 N/mm.
  9. Winder
    1. Winder by Celli Yoc 1990.
    2. Type AC£ working width 2000 m/m.
  10. Included
    1. All the line including panel controls, cables and console with two touch-screens.
