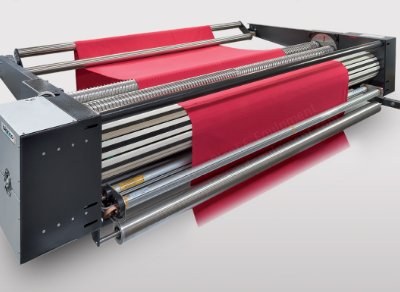

Bianco, Dogal 04, Centering Roller with Single Slats, 2400mm Roller Width, 2200mm Fabric Width, 460V (New)

Bianco, Dogal 04, Centering Roller with Single Slats, 2400mm Roller Width, 2200mm Fabric Width, 460V

Description

  1. Overview
    1. For stretching and centering with motorized twin stretcher roller unit.
    2. Maximum speed: 80 m/min.
  2. Specifications
    1. Roller width: 2400 mm.
    2. Fabric width: 2200 mm.
    3. Voltage: 460 V, 60 Hz.
    4. Entry frame with 2 brake bars, L = 900 mm.
    5. Ac inverter drive and motor.
  3. Stretching and Centering Unit
    1. Comprising 2 motorized stainless rollers, with fabric variable using a handwheel.
    2. Includes a Dogal 04 centering roller, diameter 250.
    3. Dogal 04 is a centering roller comprising a drum with a crown of single slats on its surface with their ends connected to two tilting rings to the sides of the drum.
    4. By tilting the rings with respect to the perpendicular to the axis, and rotating the drum, the fabric is moved.
    5. If controlled by a unit which reads the position of the fabric, extremely accurate movements can be obtained, resulting in perfect centering.
  4. Included
    1. Fluo full width sensor included.
    2. Electrical cabinet included.
    3. With complete electrical panel for Dogal drive.
