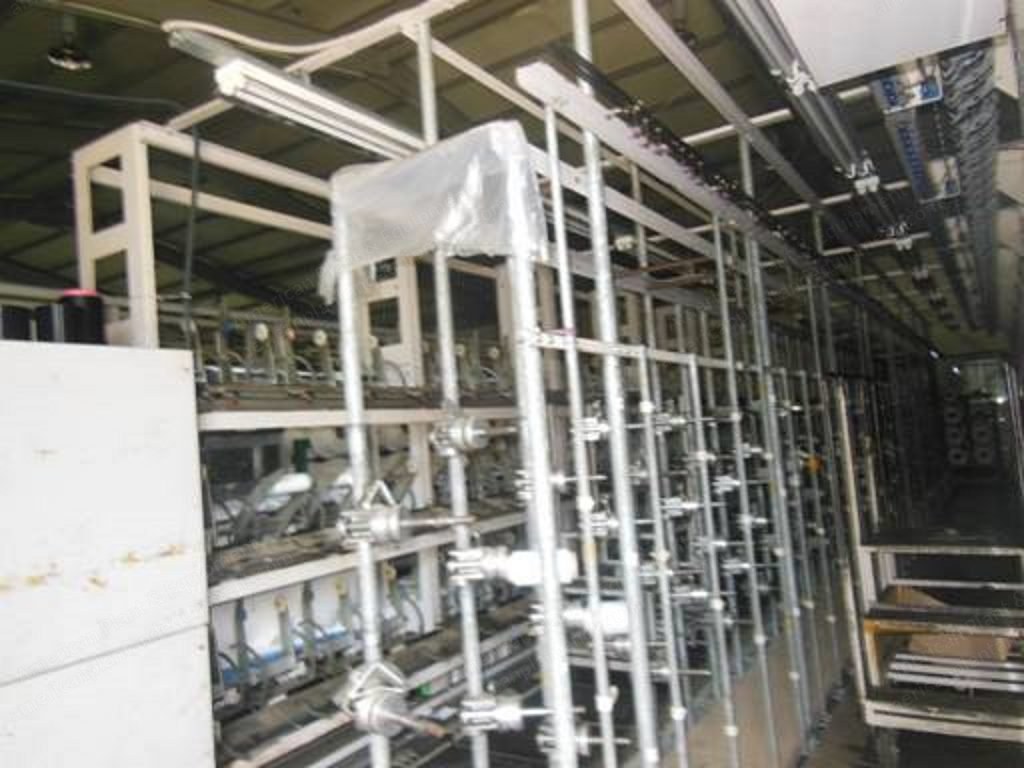

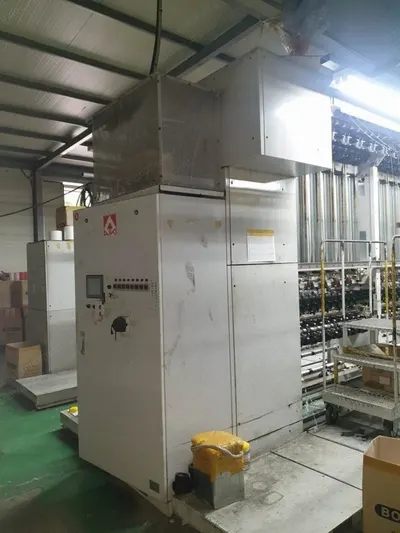

Aiki, TH-211, 2003, Single Heater, 192 Spindles, 180m/min Yarn Speed

Aiki, TH-211, 2003, Single Heater, 192 Spindles, 180m/min Yarn Speed

Description

  1. Overview
    1. Model: TH-211 single heater type
    2. Number of spindles: 192
    3. Texturing part: 3 rollers nip spindle system
    4. Spinner: standard 3.0 mm (max. 400 de), option: 2.5 mm (max. 300 de)
    5. Yarn speed: max. 180 m/min
    6. Texturing range: 2000 to 4000 twist/min

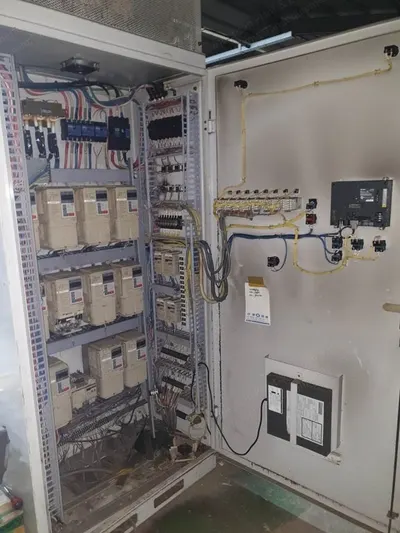

    7. Feed change: inverter system (1 feed, 1 motor) type MC3000
    8. Direction of twist: all S, all Z, S and Z
    9. Frame: steel plate
  2. Feed Roller Part
    1. FR1: 80 mm carbon steel with hard chrome plating, apron nip system, apron belt size: w 29 mm x t 1.2 mm x 90 mm
    2. DR1: 80 mm carbon steel with hard chrome plating, apron nip system: w 29 mm x t 1.2 mm x 90 mm

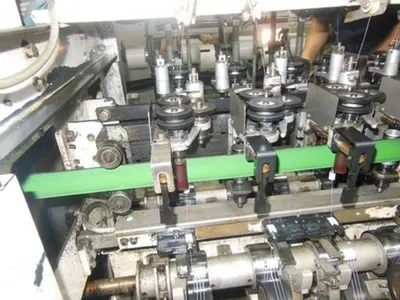

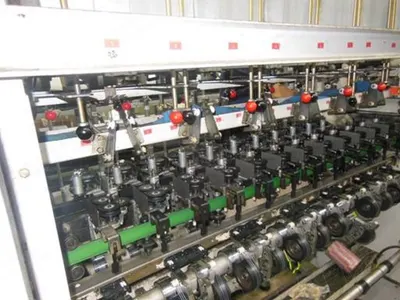

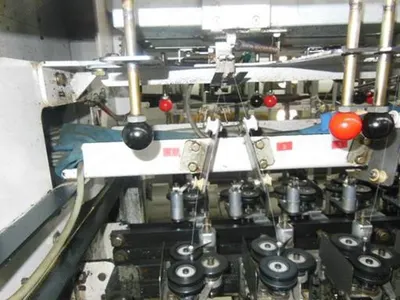

  3. Spindle Part
    1. 3 rollers nip spindle system
    2. Spinner: standard 3.0 mm (350,000 rpm) max. 400 de
    3. Drive roll: option: 2.5 mm (450,000 rpm) max. 300 de
    4. Driving belt: disc roller dia. 40 mm, width 30 mm
  4. Heater
    1. 1st heater: 24 sp per block, 3 kW per block
    2. System: downtherm vapor heating system
    3. Type: plate type
    4. Length: 1000 mm (R. 13,000 mm)
    5. Temperature range: 160 °C to 250 °C
  5. Yarn Cutter and Sensor
    1. Yarn cutter: 1 pc per spindle, electric type
    2. Yarn sensor: 1 pc per spindle, static electric type
  6. Accessories
    1. Suction gun: 4 pcs (without air compressor and piping out of side of machine)
    2. Working truck: included

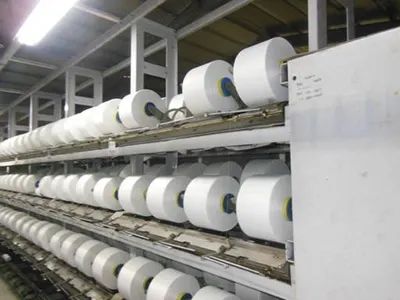

  7. Take-Up Device
    1. Type: TLP-14 spls
    2. Creel part: supply 14 kg take-up package
    3. Take-up part: 14 kg
    4. Supply package size: max. 14 kg
    5. Take-up package size: 14 kg package (yarn density 0.4 g/cm³), 10 inches (250 mm) x 430 mm (straight)
    6. Machine layout: take-up and creel part on another sheet

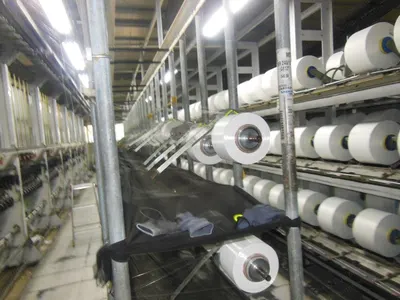

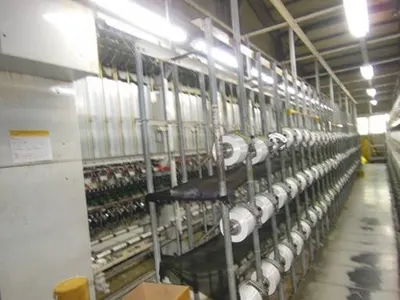

  8. Creel Part
    1. Supply package: 342 mm x 170 L (14 kg)
    2. Drum supply number per position: 1 ply, 2 pegs per position
    3. Way of package change: turn over doffing style
    4. Put package in or off: one touch style
    5. Creel peg: ball bearing rolling style
    6. Stop over run device: included
    7. Creel length: 2 drum per position under 2,700 mm

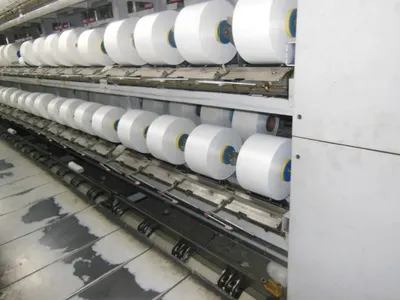

  9. Take-Up Part
    1. Take-up package size: 10 inches (250 mm) x 430 mm (straight)
    2. Paper tube size: 69 mm x 75 mm x 290 mm (L)
    3. Type of take-up: center less cradle style (surface drive), scroll cam style
