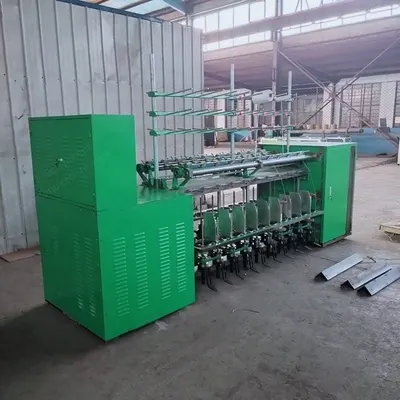

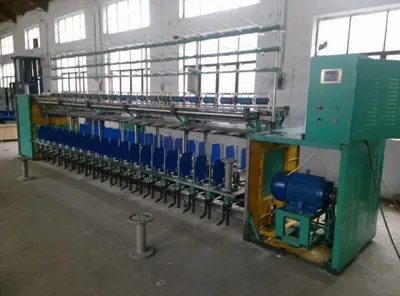

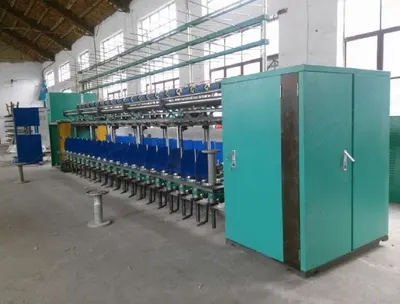

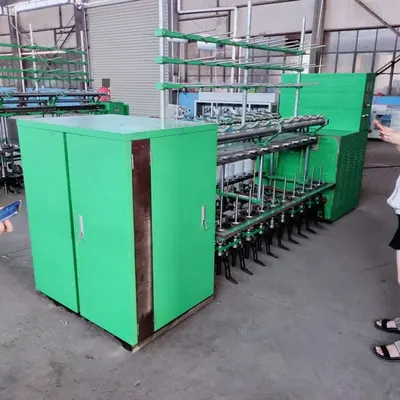

NovaStar, WN328, Ring Twisting Machine, 48 Spindles, 15 kW, 7940x1300x2130mm (New)

NovaStar, WN328, Ring Twisting Machine, 48 Spindles, 15 kW, 7940x1300x2130mm

Description

  1. Overview
    1. Used for plastic silk, cotton and chemical fiber, etc.

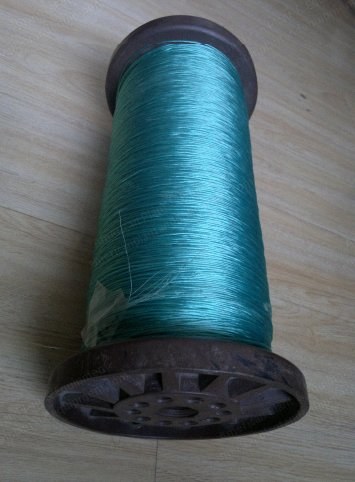

    2. Suitable for all kinds of long fiber thread to make single rope, fishing lines and type cord, etc.
    3. Features compact structure, smooth running, low vibration noise and adjustable steel plate lift.
  2. Specifications
    1. Model: WN328
    2. Number of spindle: 48
    3. Bobbin size: ᶲ170x350mm
    4. Spindle gauge: 250mm
    5. Max traverse (ring rail stroke): 300mm
    6. Ring specification: ᶲ200x38.1mm
    7. Speed of spindle: 2000~4000 r/min
    8. Motor power: 15kW
    9. Form of operation: double face
    10. Spindle dish dia: ᶲ70
    11. Spindle pole dia: ᶲ22
    12. Spindle direction: Z or S
    13. Range of twist: 33~275T/m
    14. Brake way: feet trample type
    15. Input: 200V/60Hz
    16. Dimensions: 7940x1300x2130mm
