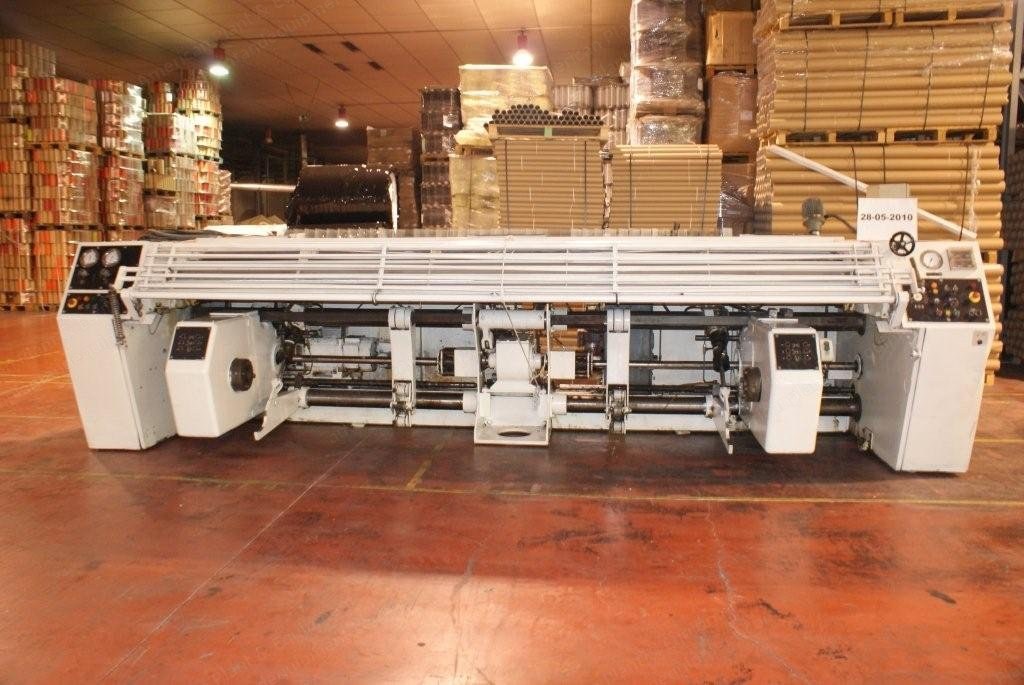

Sucker Muller, WNS-10, 1985, 4000mm Max Beam Width, 200 m/min, 26 kW

Sucker Muller, WNS-10, 1985, 4000mm Max Beam Width, 200 m/min, 26 kW

Description

  1. Overview
    1. Maximum beam width: 4000 mm
    2. Maximum beam flange diameter: 1016 mm
    3. Minimum beam width: 1000 mm
    4. Maximum warp width: 3400 mm
    5. Minimum warp width: 860 mm
    6. Maximum speed: 200 m/min
  2. Specifications
    1. Main motor: 26 kW
    2. Maximum winding tension: 5400 N
    3. Press roll maximum pressure: 8000 N
    4. Creel included: False
  3. Compatible Beam Types
    1. Half beam Sulzer loom beams: 213 in
    2. Half beam Sulzer loom beams: 152 in
    3. Half beam Sulzer loom beam: 130 in
    4. Full beam Sulzer loom beams: 85 in and 130 in
  4. Included Items
    1. No creel included
