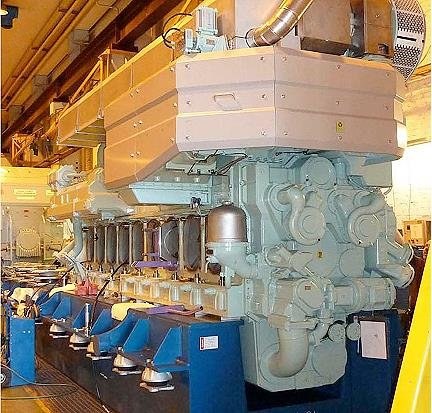

Wartsila, 8L32, 2009, 3.84 MW, 50Hz, HFO Engine, Siemens Alternators (New)

Wartsila, 8L32, 2009, 3.84 MW, 50Hz, HFO Engine, Siemens Alternators Sold

Description

  1. Overview
    1. Wartsila 8L32 gensets, heavy fuel oil (HFO) engine
    2. Model: 8L32
    3. Output: 3.84 MW (3,840 kWh)
    4. Speed: 720 rpm
    5. Year: 2009
    6. Running hours: zero
    7. Quantity: 6
  2. Fuel Oil Systems
    1. 2 fuel oil systems for 3 x Wartsila 8L32
    2. 2 feeder/booster units
    3. 2 overflow valves (HFO/MDF)
    4. 2 suction strainers (MDF)
    5. 2 separator units (HFO) common
    6. 6 circulation pumps
    7. 6 safety filters (HFO)
  3. Lubricating Oil System
    1. 1 lubricating oil system
    2. 5 separator units
  4. Compressed Air Systems
    1. 2 compressed air systems for 3 x Wartsila 8L32
    2. 4 starting air vessels
    3. 2 starting air compressor units (water cooled)
  5. Cooling Water Systems
    1. 2 cooling water systems for 3 x Wartsila 8L32
    2. 2 temperature control valves (heat recovery)
    3. 2 preheating units
    4. 4 central coolers
  6. Combustion Air and Exhaust Gas Systems
    1. 1 combustion air and exhaust gas system
    2. 2 turbocharger cleaning devices
    3. 6 exhaust gas bellows
    4. 6 exhaust gas silencers with spark arrestor
    5. 6 connection pieces
  7. Control and Monitoring Systems
    1. 1 control and monitoring system
    2. 6 power units
    3. 1 electric motor starters
    4. 12 starters for electric motor driven pumps
    5. 6 starters for engine turning gear
  8. Foundation and Connections
    1. 1 foundation
    2. 1 flexible pipe connections, spare set
    3. 6 flexible pipe connections
    4. 6 common base frames
  9. Power Transmission
    1. 1 power transmission
    2. 6 flexible couplings (flywheel)
  10. Tools and Spare Parts
    1. 1 tools for engine according to enclosed tools list
    2. 1 spare parts according to recommendations of the IACS for unrestricted service
    3. 6 consumable spare parts for 2-years operation
  11. Packing and Transportation
    1. 1 packing and transportation
    2. 6 VCI-coating
    3. 6 tarpaulins
  12. Documentation and Support
    1. 3 technical documentation packages
    2. 6 engine manuals
    3. 1 ELDOC (electronic documentation)
    4. 1 commissioning support
    5. 1 supervision support for assembly (30 man-days in 1 trip)
  13. Siemens Alternators
    1. 6 main generators (3AC 6,600V, 60 Hz, 4,600 kVA, cos = 0.8, 720 rpm, B3, IP44, water cooled)
    2. 1 documentation set in English
  14. Siemens Switchboards and Power Management
    1. 1 6,600V main switchboard including neutral earthing transformers
    2. 1 power management system PMA 300 3
    3. 1 Siemens GPA system
    4. 1 power plant protection system
  15. Siemens Multi-Drive Package
    1. 4 converter transformers, 5,200 kVA, three winding type, 12/Q24-pulse, fresh water cooled
    2. 8 inverter modules, 1,200-kW
    3. 5 inverter modules, 800-kW
    4. 6 inverter modules, 560-kW
    5. 5 inverter modules, 315-kW
    6. 1 inverter module, 200-kW
    7. 11 inverter modules, 90-kW
  16. Siemens Distribution Transformers
    1. 2 distribution transformers, 6,600/450V, 3,000 kVA
    2. 2 distribution transformers, 6,600/450V, 3,500 kVA
    3. 2 distribution transformers, 220 kVA, 450/230V, GS to DB switchboards
    4. 4 documentation sets in English
