NovaStar, FG199, Automatic Box Foaming Machine, 7 Chemical Groups, 2050x2440x1200mm Square Mold Size, 180L Max Output (New)

NovaStar, FG199, Automatic Box Foaming Machine, 7 Chemical Groups, 2050x2440x1200mm Square Mold Size, 180L Max Output

Description

  1. Overview
    1. Model: XF-75
    2. Square mold size: 2050 x 2440 x 1200 mm high
    3. With 7 chemical groups: PPG, TDI, MC, water, amine, silicone, tin
    4. Maximum output: 180 L
    5. Foaming density: 10 to 60 kg/m³
    6. Foaming height: less than 1200 mm
    7. Viking foaming pumps
    8. Touch screen control panel
    9. With heating and cooling machine
    10. Mixing head power: 7.5 kW
    11. Total power: 35 kW
    12. With manual foaming molds, 2 pieces
    13. Guarantee: CE certificate, for one year
  2. Main Technique Parameters And Equipments
    1. Main machine size: H 2000 mm x L 2300 mm x W 700 mm
    2. Big material tanks: PPG 3 ton, 1 piece; TDI 2 ton, 1 piece
    3. Small material tanks: MC 500 L, 1 piece; water 100 L, 1 piece; amine, tin, silicone 50 L, 3 pieces
    4. Square mold: W 2050 mm x L 2440 mm x H 1200 mm; round mold: dia 1600 mm x H 2200 mm
  3. Main Technique Specifications
    1. Automatic foaming computer system with man-machine touch screen
    2. Material groups: 7 groups (PPG, TDI, MC, amine, tin, silicone, water)
    3. Foaming density: 10 kg/m³ to 60 kg/m³
    4. Output max: 180 L
    5. Mixing head motor power: 7.5 kW
    6. Total power: 35 kW
  4. Molds
    1. Square mold and round mold options available
    2. Square mold foam size: W 2050 x L 2440 x H 1200 mm
    3. Round foam size: dia 1600 x H 2200 mm
    4. Choose two molds with the machine: two square molds, two round molds, or one square and one round mold
    5. Additional mold sizes available to order
  5. Material Tanks
    1. Big material tank for PPG: 3 ton capacity, with temperature controlling and stirrer system, quantity 1
    2. Big material tank for TDI: 2 ton capacity, stainless steel, with temperature controlling and stirrer system, quantity 1
    3. Small material tank for MC: 500 L capacity, stainless steel, quantity 1
    4. Small material tank for water: 100 L capacity, stainless steel, quantity 1
    5. Small material tanks for amine, tin, silicone: 50 L capacity, stainless steel, quantity 3
  6. Foaming System

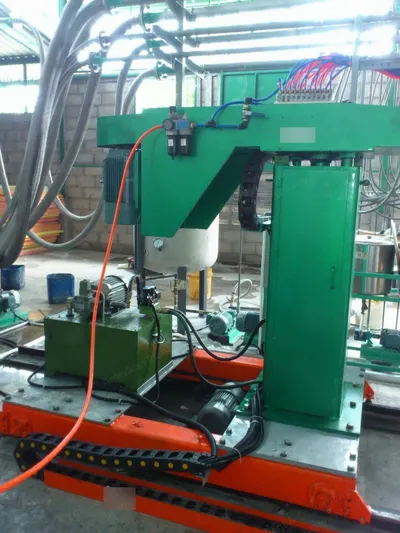

    1. Mixing head: 7.5 kW 4P motor with brake, quantity 1
    2. Main machine moving: 1.5 kW motor, quantity 1
    3. Inject PPG: 3 kW/4P motor, HL4195 gear pump (USA), quantity 1
    4. Inject TDI: 2.2 kW/4P motor, H432 gear pump (USA), quantity 1
    5. Inject MC: 1.5 kW/4P motor, SG-0510 gear pump (USA), quantity 1
    6. Inject water: 0.75 kW/8P motor, CAT230 gear pump (USA), quantity 1
    7. Inject tin and amine: 0.75 kW/4P motor, SG-0418 gear pump (USA), quantity 2
    8. Inject silicone: 0.75 kW/4P motor, SG-0518 gear pump (USA), quantity 1
    9. PPG loading: 5.5 kW/6P motor, KCB200 gear pump, quantity 1
    10. TDI loading: 2.2 kW/4P motor, NB2-C32F gear pump, quantity 1
    11. MC loading: 1.5 kW/4P motor, NB2-C20F gear pump, quantity 1
    12. PPG mixing: 2.2 kW/4P motor, WPWRK0100-30-B gear box, quantity 1
    13. TDI mixing: 1.5 kW/4P motor, WPWRK080-30-B gear box, quantity 1
  7. Pneumatic Equipments Included
    1. Air butterfly valve, 5 inch, for TDI, quantity 1
    2. Air 3-way valve, 1.5 inch, for PPG, quantity 1
    3. Air 3-way valve, 1 inch, for TDI, quantity 1
    4. Air 3-way valve, 1/2 inch, for MC and water, quantity 2
    5. Air 3-way valve, 1/4 inch, for amine, tin, silicone, quantity 3
  8. Auxiliary Components
    1. Oil press system: 2.2 kW/80 L, 1 set
    2. Cold-hot water machine: 5 HP/12 kW, 1 set
    3. Water tower: 8 T, 1 set
    4. Voltage: 220 V, 60 Hz, 3 HP
    5. It takes 20 minutes to make a bun
    6. Machine dimensions: H 2000 x L 2300 x W 700 mm
    7. Entire machine fits in a 40 foot HC container for shipment
