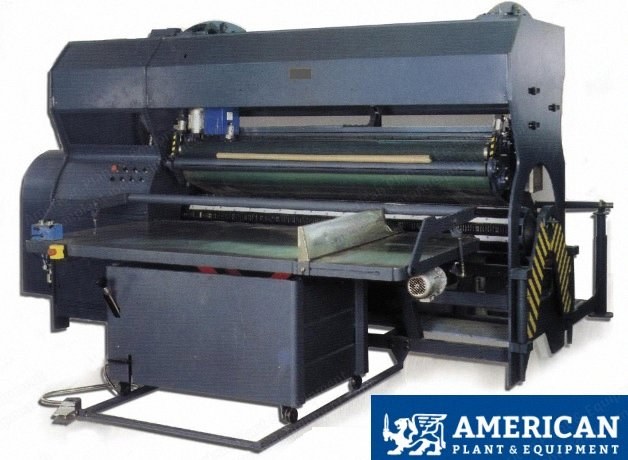

Description Overview Innerspring roll winding and packing machine Rolls and packs about 8 to 10 Bonnell spring units into one roll Portable carrier for compressed roll International patented and electronically controlled discharging system for compressed roll Safety switch for discharging the compressed roll Safety device for feeding Bonnell spring units Two videos available Specifications Production capacity: 8 minutes per roll Packing paper type: craft paper, thickness: 0.2 mm Inner diameter of packing material: minimum 75 mm Outside diameter of packing material: maximum 1200 mm Width of packing material: maximum 2200 mm Mattress width: maximum 2000 mm Mattress length: maximum 2300 mm Mattress thickness: maximum 180 mm Diameter of finished roll: 700 mm Air consumption: 5 m³/h at 0.8 MPa Air pressure: 0.6 MPa to 0.7 MPa Power consumption in total: 6 kW Voltage: as per customer Frequency: 50/60 Hz Power requirements: input fuse 15 A, cable section 4 x 6 mm² Working temperature: +5 °C to +45 °C Weight: 3000 kg
