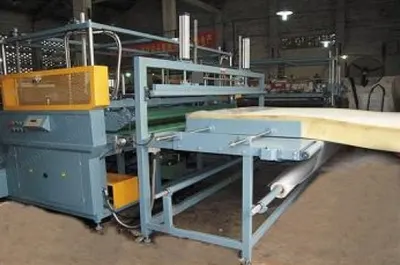

NovaStar, MP186, Mattress Roll Packing Machine, Max Mattress Width 2000mm, Max Mattress Height 350mm, Capacity 1 Mattress / 40s (New)

NovaStar, MP186, Mattress Roll Packing Machine, Max Mattress Width 2000mm, Max Mattress Height 350mm, Capacity 1 Mattress / 40s

Description

  1. Overview
    1. Rolls and packs mattresses (without border frame) made with foam, latex or pocket springs
    2. With pre-compressing system
    3. Pre-saved compressing proportion adjusting system
    4. Reliable dual-wave seal
  2. Performance
    1. Production capacity: one mattress every 40 seconds
  3. Consumption Material Data
    1. Type: PE/PE film
    2. Thickness: 0.1 mm
    3. Inner diameter of packing material: min. 70 mm
    4. Outer diameter of packing material: max. 200 mm
    5. Width of packing material: max. 2350 mm
  4. General Data

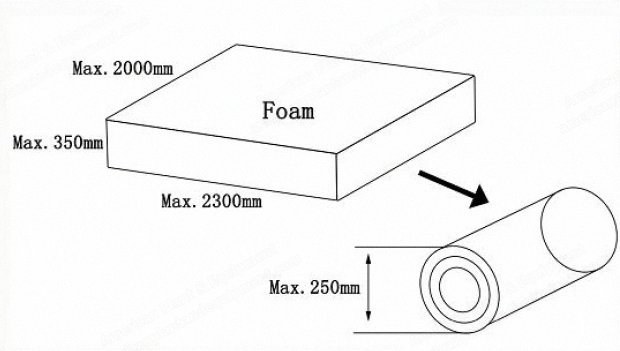

    1. Mattress width: max. 2000 mm
    2. Mattress length: max. 2300 mm
    3. Max mattress height: max. 350 mm
    4. Diameter of finished roll: min. 250 mm
    5. Air consumption: 18 m³/hour at 0.7 mpa
    6. Air pressure: 0.6 to 0.7 mpa
    7. Total power consumption: voltage as per customer
    8. Frequency: 50/60 Hz
    9. Power requirements: input fuse 25 A, cable section 4 x 10 mm²
    10. Working temperature: 5 degrees Celsius to 45 degrees Celsius
    11. Weight: approx. 4500 kg
  5. Specifications
    1. Voltage: As per customer (e.g., 3AC 220V 60Hz)
