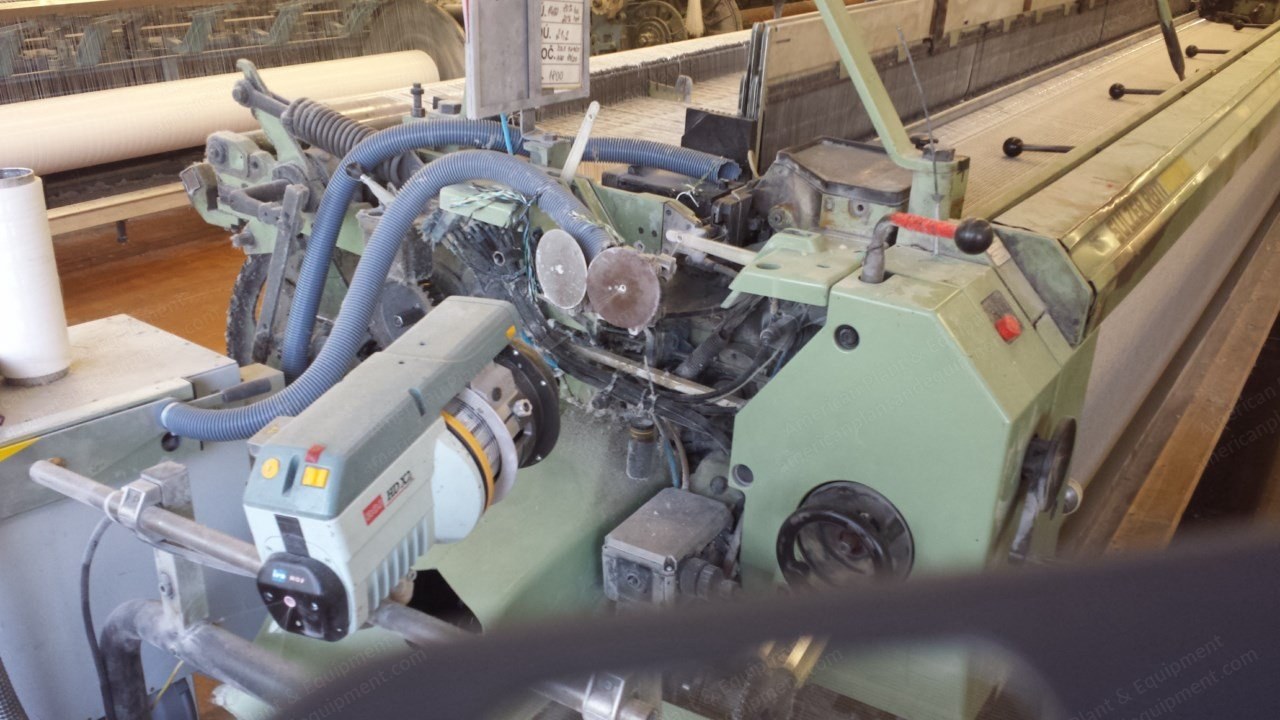

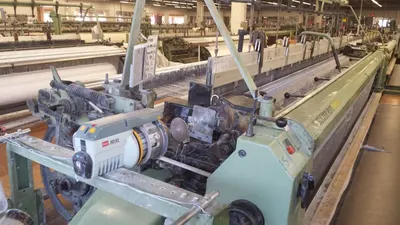

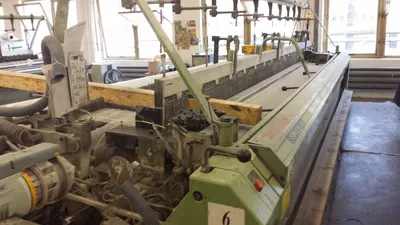

Sulzer, P7100 P540 N1 EP D2, 5400mm Working Width, 1 Color, Metal D2 Projectile, Polypropylene/Monofilament Loom

Name: Sulzer, P7100 P540 N1 EP D2, 5400mm Working Width, 1 Color, Metal D2 Projectile, Polypropylene/Monofilament Loom
Brand: Sulzer
SKU: V-1102

‹ Go Back Next Product ›

Description

Overview
1. Brand: Sulzer

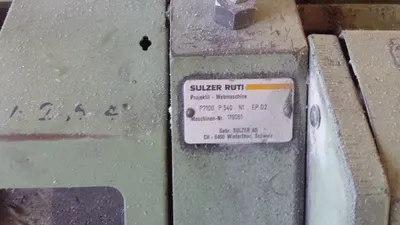

2. Model: P 7100 P 540 N1 EP D2
3. Projectile type: Metal D2
4. Quantity: 7
Specifications
1. Working width: 5400 mm
2. Color number: 1, total number 27
3. Clamping force: 3800 gr
4. Cam box up to 10 cams, installed 6 x 6 + 1 x 4
5. Heald frame drive: 6 x 6, 1 x 4
6. Heald frame install: each 2 (type Grob)
7. Guide teeth: single
8. Weft brake: Elektro Loepfe
9. Warp stop bar Sulzer: no. 2
10. Droppers per loom: 4 x 2400, 1 x 900, 1 x 1000, 1 x 5400
11. Number of heddles: approximately 1200 (leno)
12. Actual 6 looms running for leno fabrics
13. Let off: mechanical, ratio 2 x 6:36, 5 x 3:38

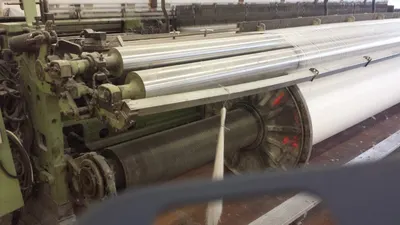

14. Warp beam: tube diameter 270 mm, flange diameter 940 mm, square 45 x 45
15. Selvage: left and right tuck in selvage (no middle)
16. Picking point: 110
17. Weft feeder: no. 1 Roj HD x2
18. Bobbin creel: 2 position

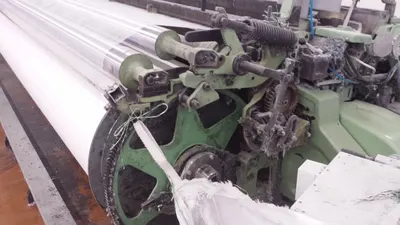

19. Big batcher

Cam Box	Up to 10 cams
Capacity	5400mm working width
Clamping Force	3,800 GR
Projectile Type	Metal D2
Selvage Type	L+R tuck in selvage
