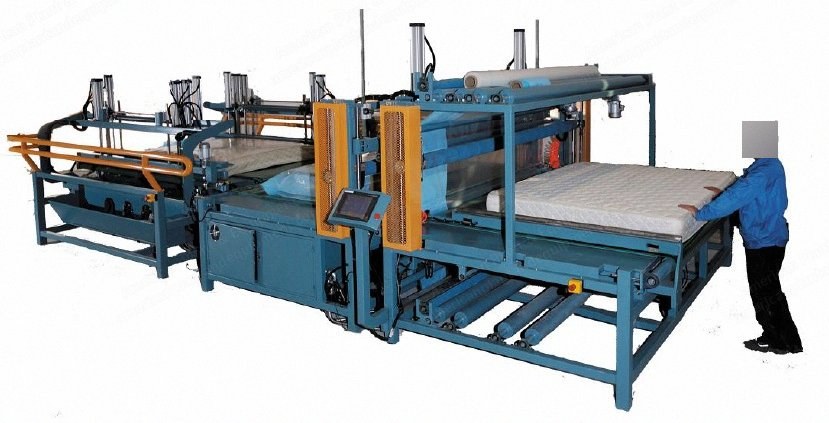

NovaStar, MP188, Automatic Mattress Packing Machine, 1.5 units/min, Max Width 2000mm, Max Thickness 450mm (New)

NovaStar, MP188, Automatic Mattress Packing Machine, 1.5 units/min, Max Width 2000mm, Max Thickness 450mm

Description

  1. Overview
    1. Accepts all kinds of mattresses and soft cushions made from sponge
    2. Accepts mixed product length, width and thickness in any sequence; seal bars are self-adjusting for all mattress sizes
    3. Unique water- and air-circulation system to cool heat bars and provide perfect seal
    4. Compact design minimizes floor space
    5. Lateral reinforcements as film holders on the two sides to position extra film in different colors or with logo mark
    6. Low and easy maintenance
    7. Easy to operate; short training period
  2. Performance
    1. Production capacity: 1.5 units per minute
  3. Consumption Material Data
    1. Type: PE/PE film
    2. Thickness: 0.08 to 0.10 mm
    3. Inner diameter of packing material: min. 75 mm
    4. Outer diameter of packing material: max. 200 mm
    5. Width of packing material: max. 2900 mm
  4. General Data
    1. Mattress width: 800 to 2000 mm
    2. Mattress length: 1600 to 2200 mm
    3. Mattress thickness: 100 to 450 mm
    4. Air consumption: 42 mm³ per hour, 0.8 mpa
    5. Air pressure: 0.6 to 0.7 mpa
    6. Power consumption in total: voltage 3AC 480V, frequency 50/60 Hz
    7. Power requirements: input fuse 30A, cable section 4 x 10 mm²
    8. Working temperature: 5 degrees Celsius to 45 degrees Celsius
    9. Weight: approx. 5000 kg
