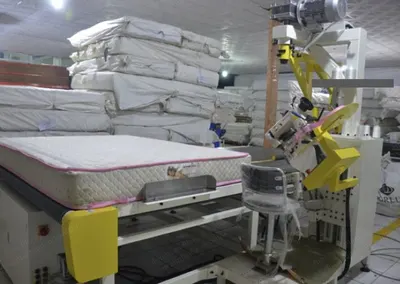

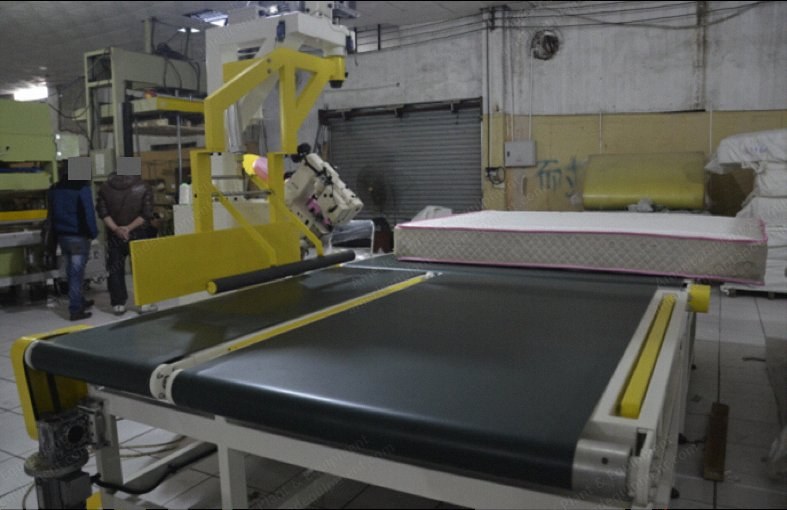

NovaStar, MB230, Automatic Tape Edge Machine, Singer-300U Head, with Flip Over and Conveyor, 2000x3950x900mm Worktable (New)

NovaStar, MB230, Automatic Tape Edge Machine, Singer-300U Head, with Flip Over and Conveyor, 2000x3950x900mm Worktable

Description

  1. Specifications
    1. Mattress thickness: 150 to 450 mm
    2. Head lifting range: 125 to 450 mm
    3. Adjust angle: 30° to 55°
    4. Worktable size: 2000 × 3950 × 900 mm
    5. Machine dimensions: 2380 × 1830 × 1650 mm
    6. Power supply: 3-phase, 480 V, 60 Hz (or as per customer)
    7. Total power: 3 kW
    8. Air supply: 0.7 to 1.0 MPa
    9. Total weight: 1300 kg
    10. Efficiency: 15 to 18 units/h
    11. Sewing head: Singer-300U
