NovaStar, PQ141, 2026, Pillow Compression Packing Machine, 800x800mm Plate, 1.3 Ton Pressure, 1.5 kW (New)

NovaStar, PQ141, 2026, Pillow Compression Packing Machine, 800x800mm Plate, 1.3 Ton Pressure, 1.5 kW

Description

  1. Overview

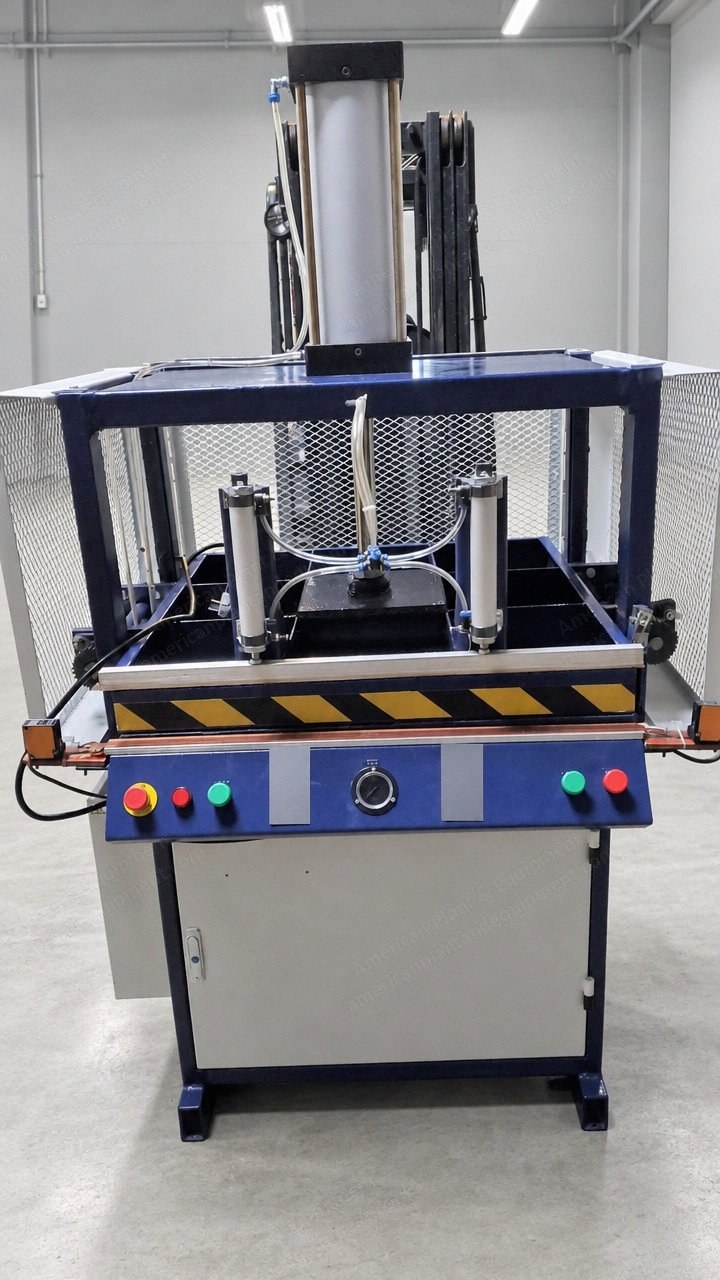

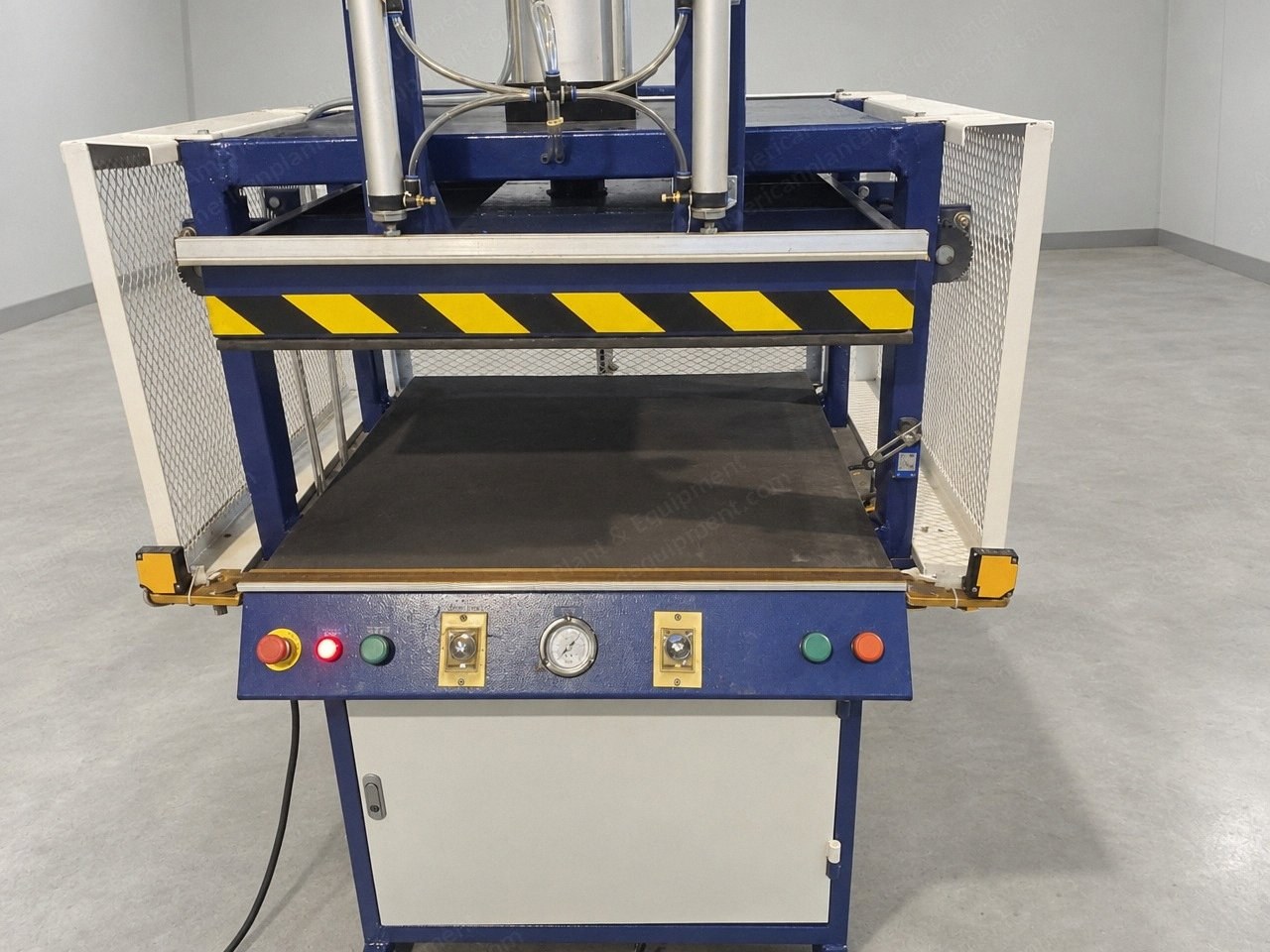

    1. Pillow compression and packing machine with 800 x 800 mm (31.5 x 31.5 in) plates
    2. Double band sealing

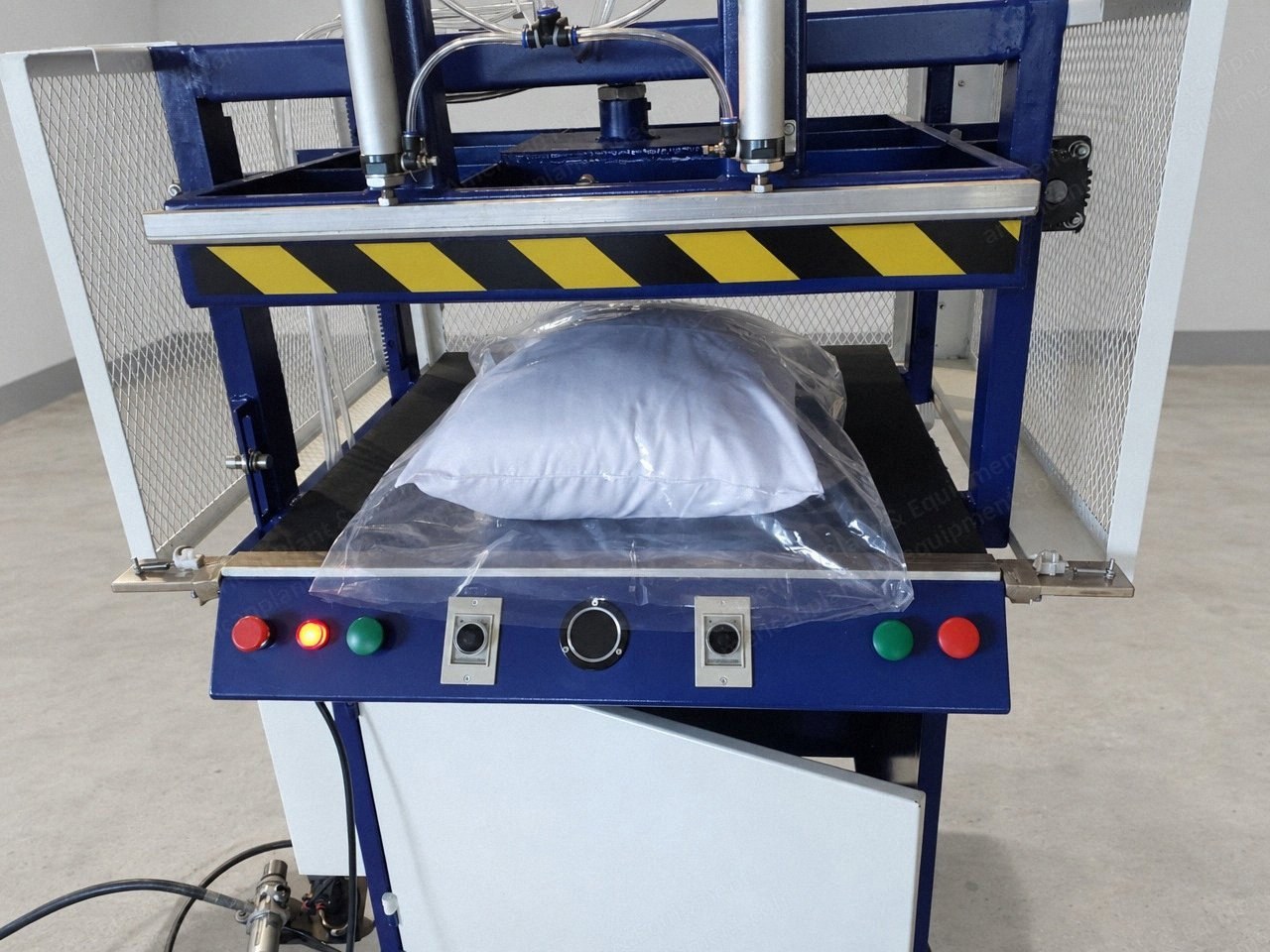

    3. Compresses and seals all kinds of bedding and fiber goods such as quilts, pillows and bedspreads
  2. Specifications
    1. Capacity: 4 pieces per minute
    2. Volume: 2.2 m3

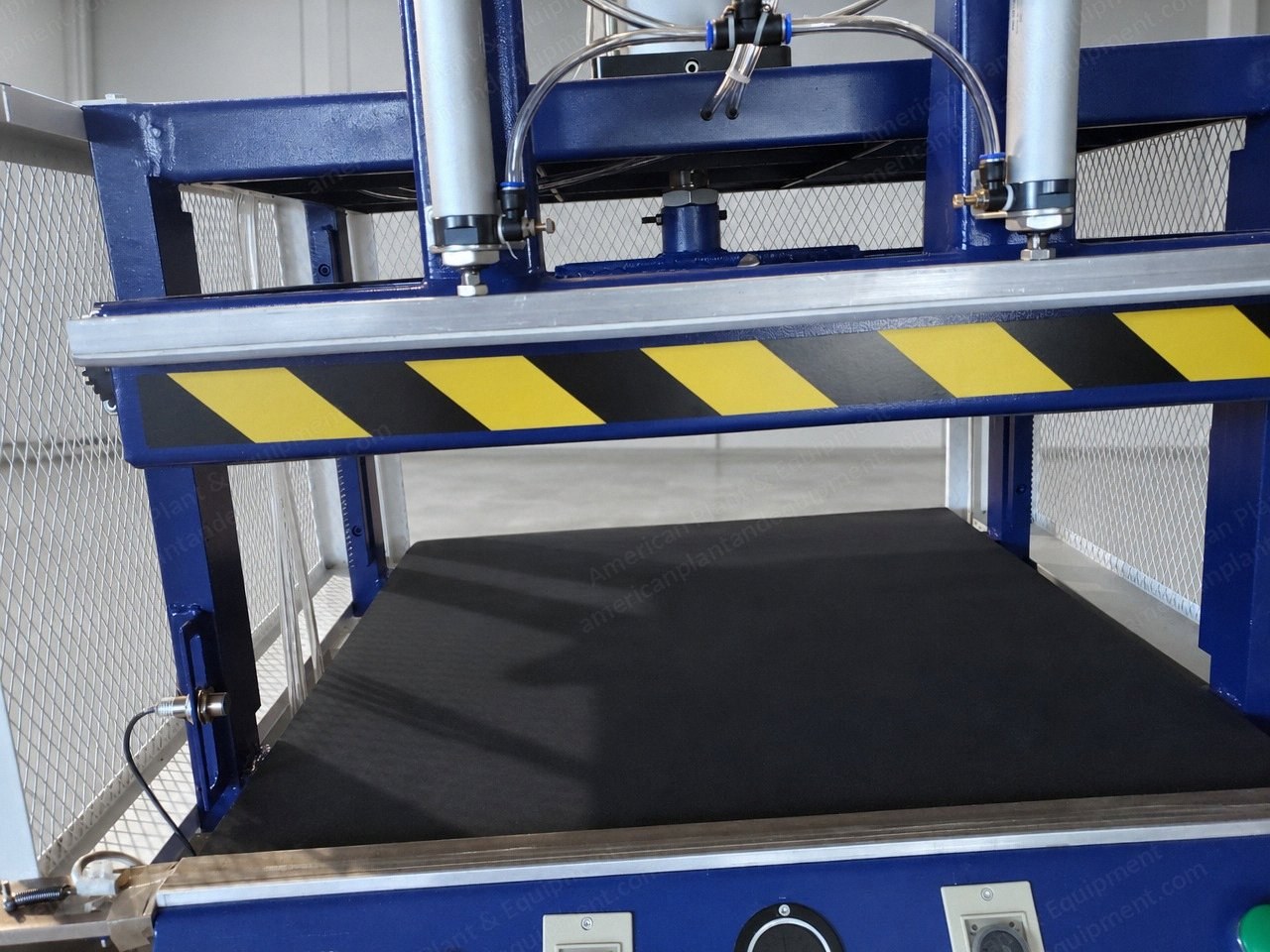

    3. Plate size: 800 x 800 mm (31.5 x 31.5 in)
    4. Bag gauge: 1.5 to 6 mil
    5. Overall pressure: 1.3 tons
    6. Maximum opening between plates: 11.5 in
    7. Cylinders: small 80 x 150 mm, large 160 x 300 mm
    8. Power: 1.5 kW
    9. Voltage: 220V, 3-phase
    10. Air compressor required (not included): 75 PSI minimum, 145 PSI maximum, 30 gallon recommended
    11. Air supply: 6 bar, 1/2 in; air consumption 40 liters per minute
    12. Working pressure: 0.6 MPa (87 PSI)

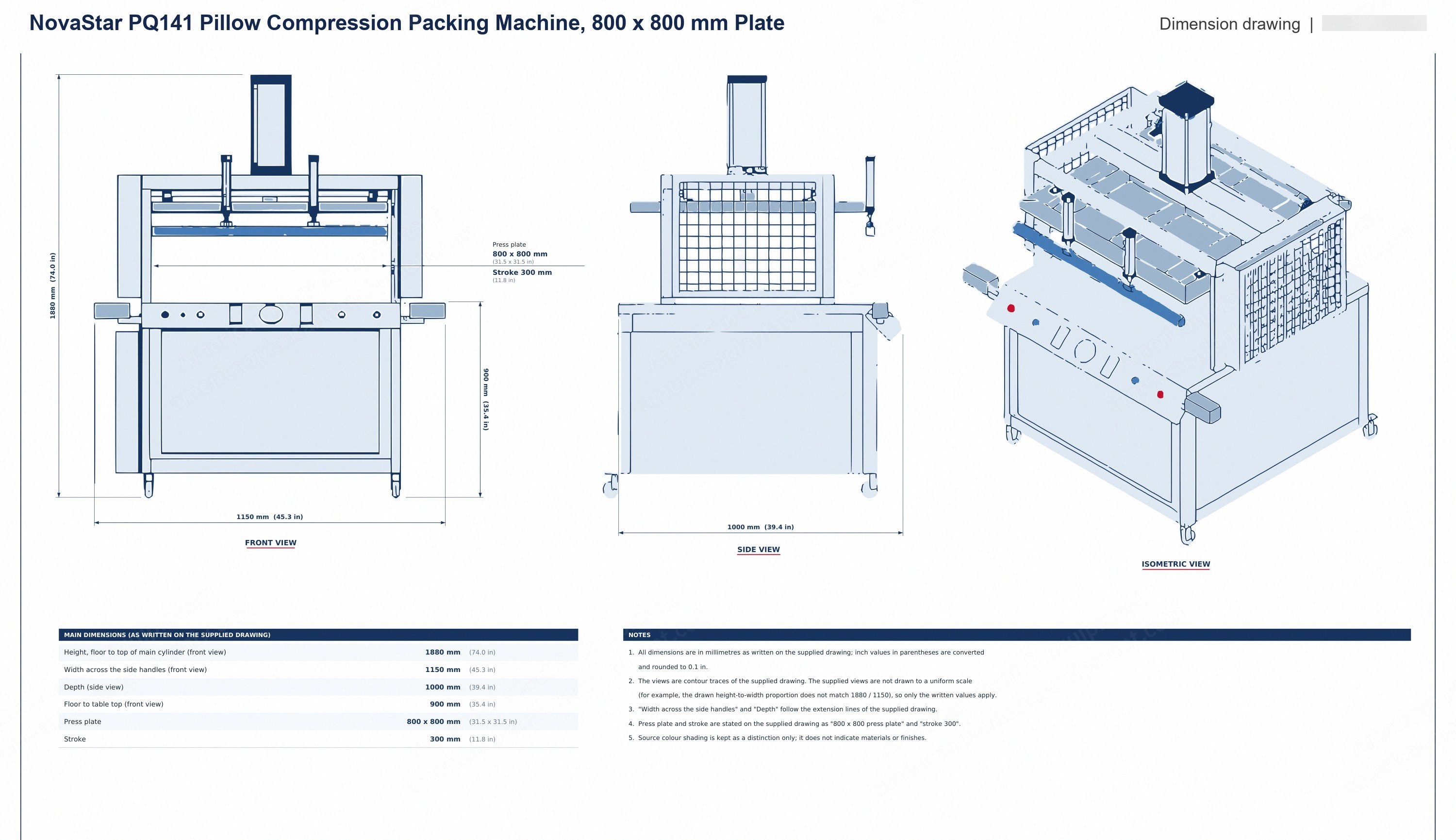

  3. Dimensions and Weight
    1. Machine footprint: 42 x 44.5 in
    2. Dimensions: 1200 x 1150 x 1600 mm
    3. Shipping dimensions: 1220 W x 1110 L x 2060 mm H
    4. Net weight: 110 kg; gross weight: 320 kg
