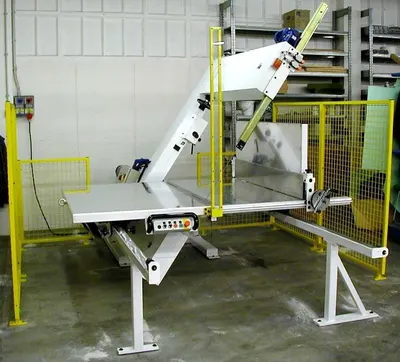

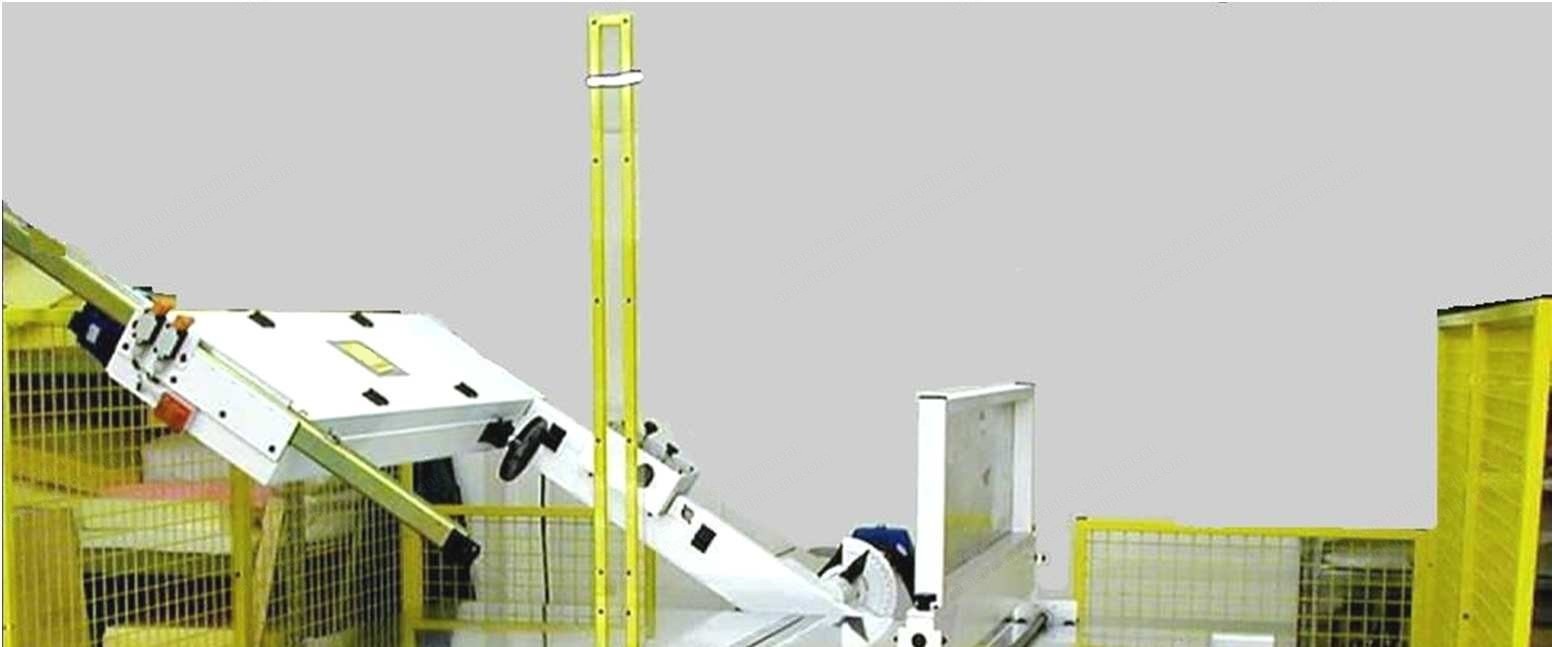

Inclining machine M-900 is available to produce vertical and inclining cuts of small and medium size blocks of foam; an essential machine where the prototypes office exists.
The reduced dimensions of M-900 and its front working system make the operator action easy.
Specifications
Working cutting height: 900 mm
Right table: 1000 mm
Left table: 1000 mm
Cutting length: 1200 mm
Headboard height: 200 + 400 mm
Maximum inclination: 60°
Power: 4 kW
Voltage: 400 V, 50 Hz
Net weight: 1255 kg
Max inclination: 60 degrees
Features
The working table on the right of the blade is equipped with a 0-1000 mm incised rod where cutting thickness size can be read.
The feed handle of the headboard is supplied with a particular device by which the operator repeats thicknesses from 0.5 to 100 mm, without checking the value on the rod.
The motor-driven grinding unit is complete with grinding dust aspirator.
A push button drives a gear motor that tilts the machine; maximum inclination 60°.
A graduated sector allows to control inclination.
The double-edge crossed blade is guided by four adjustable hard metal inserts.
