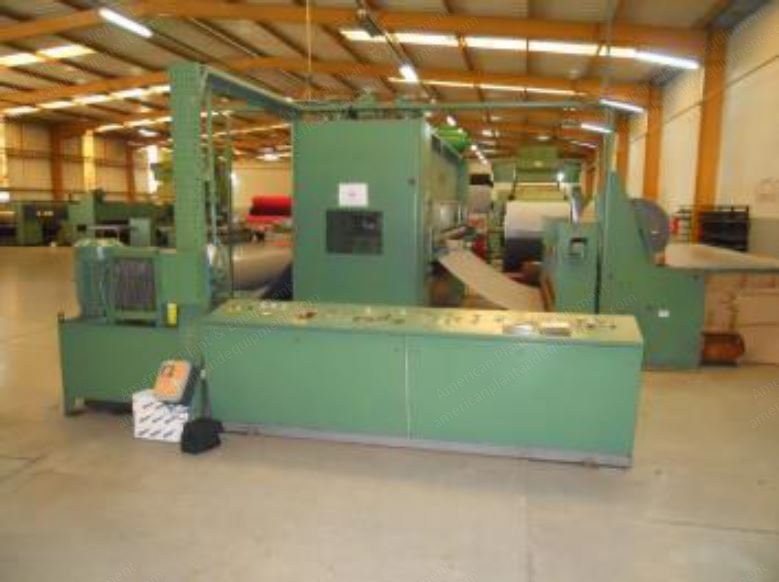

Dilo, OD SD 45, 1982, Needle Loom for Patterning, 4500mm Working Width, Single Board Down Stroke, 1500 RPM

Dilo, OD SD 45, 1982, Needle Loom for Patterning, 4500mm Working Width, Single Board Down Stroke, 1500 RPM Sold

Description

  1. Overview
    1. Brand: Dilo
    2. Model: OD SD 45
    3. Year: 1982
    4. Work width: 4500 mm
    5. Weight: 28,000 kg
  2. Specifications
    1. Needling: Single board down stroke
    2. Strokes: 1500 rpm
    3. Stroke: 40 mm
    4. Needles: ca. 1 x 4000 needles / m
    5. Lamella gauge: 3.5 mm
  3. Unwinder
    1. Brand: Dilo
    2. Model: AWS 45
    3. Work width: 4500 mm
    4. Max. diameter: 1.200 mm
    5. Velocity: 11 m/min

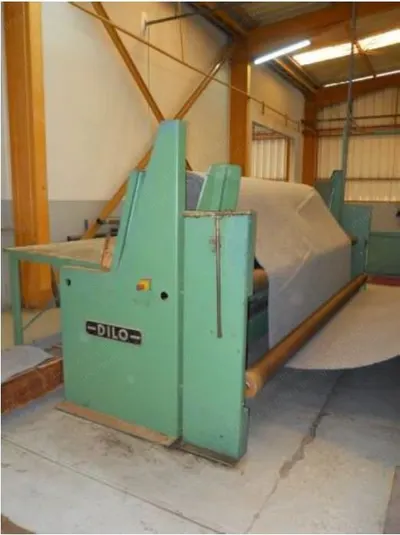

  4. Winder
    1. Brand: Dilo
    2. Model: SW 45
    3. Year: 1989
    4. Work width: 4500 mm
    5. Machine is with hydraulic system for patterning
