NovaStar, LI, Pillow and Cushion Filling Machine, 7 CBM Silo, 8-10 pcs/min, 11.1kW (New)

NovaStar, LI, Pillow and Cushion Filling Machine, 7 CBM Silo, 8-10 pcs/min, 11.1kW

Description

  1. Overview
    1. Whole line for virgin or recycle material cushion filling machine.
    2. Can be used for cushion, pillow and large toys.
    3. Complete with a funnel feeding blower, silo and filling system.
    4. The filling system can be arranged according to the material type, production and client's requirement.
    5. It can be handled by 2 operators adjusted by PLC control system.
    6. First feed raw material manually into the silo through the funnel feeding blower.
    7. There is filling system adapted next to the silo.
    8. Filling productions by 1 or 2 operators depends on the filling slot.
    9. 24V low voltage control system.
    10. Electrical key parts are world known brands such like Siemens, Schneider and AB etc, so that client can find locally.
    11. Easy to operate.
    12. Stable quality with extremely less maintenance due to high quality electrical key parts.
  2. Materials Processed
    1. Polyester fiber 0.8D-1 5D, 12-64mm.
    2. Recycle polyester fiber.
    3. Shredded foam.
    4. Down and feather.
  3. Specifications
    1. Production name: Cushion filling machine.
    2. Item no.: LI.
    3. Power: 11.1kW (2pc mini pillow blow adapted).
    4. Power: 14.2kW (vacuum filling system adapted).
    5. Power: 10.7kW (double slot pillow filling system adapted).
    6. Capacity: 8-1 OPC/min.
    7. Voltage: 3phase voltage according to customers needs.
    8. Air pressure: 6bar.
    9. Filling nozzle dia.: 100mm.
    10. Silo volume: 7cbm.
    11. Silo height: 4300mm.
    12. Weight: 1000kg.
    13. Machine layout.
  4. Equipment Included

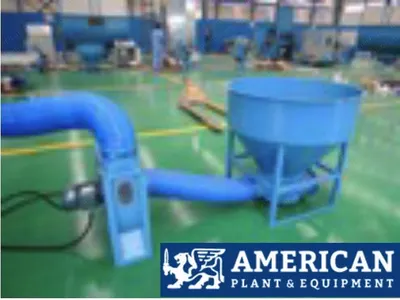

    1. Funnel feeding blower
      1. The funnel feeding blower is mainly used to load the ready material into the silo by an operation manually.
      2. Diameter: 1000mm.
      3. Capacity: 400kg/h according to different material.
      4. Power: 2.2kW.
      5. It helped to protect the working shop clean.

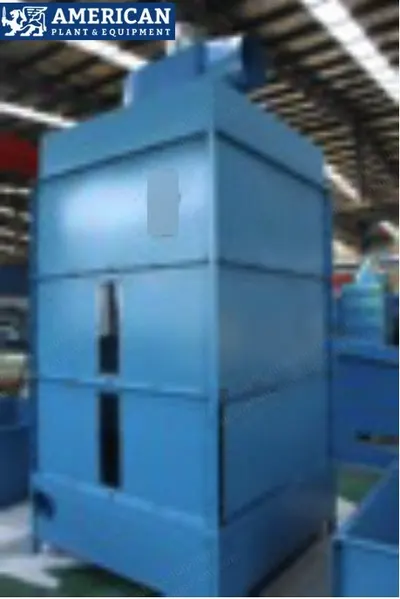

    2. Silo
      1. The silo is mainly used to keep enough material ready for the next program supplying.
      2. There are 3 sections of 1.2m height in one silo, around 7 cubic meter.
      3. It is applied for polyester fiber, recycle foam spaghetti, down and feather, polyester fiber ball.
    3. Filling system options: Mini pillow blower
      1. There can be 2pc of mini pillow blower installed next to the silo that can be handled by 2 operators separately controlled by foot switch.
      2. Filling nozzle diameter: 100mm.
      3. Power: 2.2kW.
      4. The operator manually controls the filling quantity according to his experience.
      5. Easy to operate.
