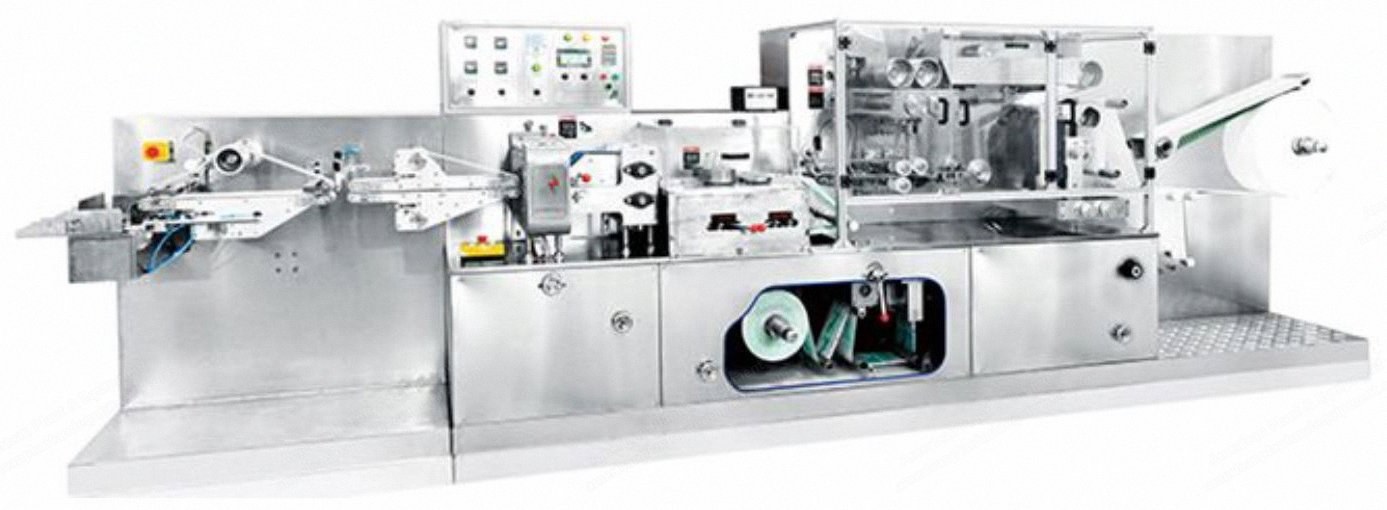

NovaStar, WP157, Full Automatic Wet Tissue Folding and Packing Machine, 150-200 packs/min, Single-Piece (New)

NovaStar, WP157, Full Automatic Wet Tissue Folding and Packing Machine, 150-200 packs/min, Single-Piece

Description

  1. Overview
    1. Product type: wipe for restaurant, baby wipe, dress up wipe, lady wipe, cleaning wipe
    2. Speed: 150 to 200 packs/min
    3. Pieces per pack: single
    4. Suitable material: nonwoven fabric, air laid paper
    5. Gsm: 40 to 60 g/m²
    6. Folding type: “z”, “w”
    7. Wetting system: tank with agitator
  2. Specifications
    1. Power: 480 V, 60 Hz or as per customer requirement
    2. Power supply: 6 kW
    3. Raw material roll width: 150 to 200 mm
    4. Unfolded size (mm): (160 to 260) × (150 to 200) (L × W)
    5. Folded size (mm): (80 to 130) × (50 to 80) (L × W)
    6. Packing film: PE & PET, OPP & PE (aluminum film)
    7. Packing size (mm): (100 to 200) × (60 to 80) (L × W)
    8. Installation space (mm): 4700 × 900 × 1650 (L × W × H)
    9. Size of tank (mm): 900 × 900 × 1900
    10. Weight: 1500 kg
  3. Main Features
    1. Scientific design and compact structure, easy operation and maintenance
    2. Machine design as to CE standard, with safety door and e-stop and relative safety system
    3. Main mechanical parts made by CNC, main electric parts from world famous brand
    4. Auto adjust temperature as to set parameters for those electrical thermo parts
    5. Transmission, back driven belt
    6. Adjust phase to be synchronized with machine running
  4. Main Configurations
    1. Steel structure, stainless steel plate, stainless steel parts
    2. Liquid distributed from holes of the pipes
    3. Lotion supplying system, including a tank with continuously agitators mixing, recycle unit, lotion applicator sucking liquid from the tank and spraying liquid to the product continuously with adjustable amount
    4. Nonwoven cutting system, length can be adjustable
    5. Convey system
    6. Operate interface for main machine
    7. Packing film tension control
    8. Code printing system
    9. Package forming, the length can be adjusted and width can be changed by forming unit
    10. Sachet center sealing
    11. Sachet crimping and cross cutting
    12. Product output
    13. All main electrical parts strictly pass CE standard
    14. Safety system: complete protection for the blade, cabinet made with doors
    15. Emergency braking system
  5. System Features
    1. Drive model: main drive shaft adopted couple jointer
    2. Back driven by timing belt
    3. Control system: PLC control system and detecting system
  6. Auto Control Functions
    1. Automatic temperature control. Each unit adopted individual digital temperature indicator
    2. Each data is set on requirement to meet different consumption. Real time temperature can be fed back to the PLC and displayed at interface screen
    3. Electrical control system consists of main circuit system, second circuit control system, temperature control system, tension control system, PLC system and other auxiliary parts
    4. Product conveying: imported conveyor belt driven. The friction coefficient can be auto profit adjusted at low or high speed to ensure whole line in consistent situation and good products
    5. Other feature: hard alloy for long life cutter
    6. All main electrical parts strictly pass CE
  7. Technical Support
    1. Free consultant service, help customers to make project feasibility analysis
    2. We provide the relevant product information of the series for customer’s reference
    3. We offer the designing, installment drawing and necessary information for production according to customer’s real situation
    4. We inform the models, technical index and request, suppliers and reference price of all necessary raw materials for production
    5. We advise customers how to solve the usual machine fault
    6. We can supply the technicians to operate the machine
  8. After-Sale Service
    1. The machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them
    2. When the machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills
    3. When the machines are delivered to the customers, we can go to customer’s factory to install, test the machines, and to train again before the operation staff start working
    4. During this period of one-year warranty, if the machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts
    5. During this period of warranty, if there is something wrong with the machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible
    6. After the warranty, we charge only cost price for maintaining the machines within three years
    7. Other after-sale terms can be agreed by buyer and seller in addition
  9. Spare Part List
    1. Belt: 2 pieces
    2. Round belt: 1 piece
    3. Cutting blade (up): 1 piece
    4. Cutting blade (down): 1 piece
    5. Edge sealing blade (tooth type): 1 piece
    6. Edge sealing blade (straight): 1 piece
    7. Heating ring: 2 pieces
    8. Heating tube: 4 pieces
    9. Tool box: 1 piece
    10. Water tank (400 liters)
