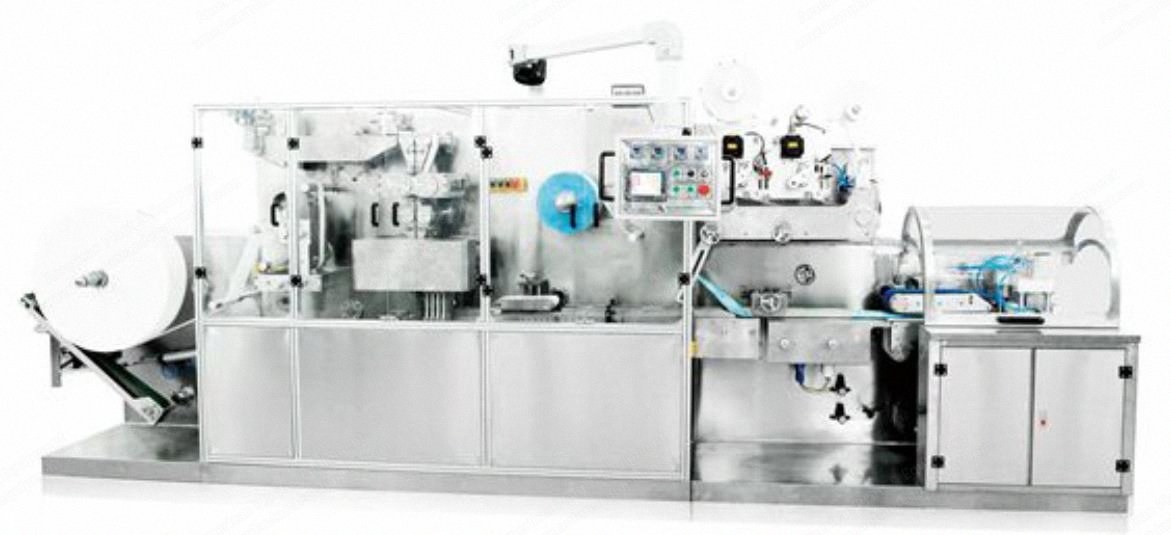

Power supply: three phase 380 V, 50 Hz or per customer requirement
Power: 20 kW
Machine size: 5000 x 1300 x 200 mm (L x W x H)
Non-folding size of wet tissue (mm): (150 to 200) x (140 to 200) mm (L x W)
Folding size of wet tissue (mm): (75 to 100) x (60 to 80) mm (L x W)
Packing size: 5 to 30 pcs
Designed speed: 40 pack/min (10 pcs/pack)
Product speed: 30 pack/min (10 pcs/pack)
Wastage rate: ≤3%
Main Structure
Unwinding the spunlace material by transducer, tension control automatically
Spunlace material cutting device, the cylinder separate the cutting blade
Two labeling device
Cutting a hole on the film by the machine automatically
The turned form sealing device
Electromotion differential gear, adjusting phase without stopping the machine
The relative position of the punching hole, labeling, and the eyemark are enacted in the PLC
The main electric brand are famous brand Siemens
Main machine is frame form
Raw material specification: packing film, width ≤240 mm, diameter ≤400 mm; spunlace, width = 320 mm, diameter ≤1200 mm; label, width ≤60 mm, diameter ≤300 mm
Main Configurations
Spunlace cutting device
Spunlace vertical folding device
Spunlace wetting device, with founder form
Cutting wet tissue device, with high-speed steel cutting blade
Spunlace transverse folding device, can adjust the folding size and the folding shape; the machine has automatic counting and stacking device; the counting pieces can be set in the PLC; the stacker has sever motor driver
The device of cutting a hole on the film is done by the machine automatically
Two sets of label stick device, can be used at the same time or solely
Packing film device
The packing film sealing vertically device, and the cylinder open-closed sealing device
The packing form sealing transversely device, and the cylinder open-closed sealing device
The folding machine, packing machine, and the feeding film frequency conversion and timing; three transducer can run automatically at the same time
Closed gear box + step belt and coupling running form
Electric control model includes automatic and manual, to meet the demand in the running
Each motor can be started and stopped individually, setting in the PLC
The whole machine has four emergency stop buttons; when pressed, the machine will stop
Technical Support
Free consultant service, help customers to make project feasibility analysis
Provide the relevant product information of the series for customer’s reference
Offer the designing, installment drawing and necessary information for production according to customer’s real situation
Inform the models, technical index and request, suppliers and reference price of all necessary raw materials for production
Advise customers how to solve the usual machine faults
Can supply the technicians to operate the machine
After-Sale Service
The machines are tested and have trial production in our factory before leaving and are shipped out only after the customers are satisfied
When the machines are tested, our technicians will train the customer’s technicians in theory and practice till they grasp the skills
When the machines are delivered, we can go to customer’s factory to install, test the machines, and to train again before the operation staff start working
During the one-year warranty, if the machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts
During the warranty period, if there is something wrong with the machine, we are responsible to provide for solving this problem at the soonest and help customers to restore production as soon as possible
After the warranty, we charge only cost price for maintaining the machines within three years
Other after-sale terms can be agreed by buyer and seller in addition
Main Electrical Parts List
PLC, model FX3U-48M, brand Mitsubishi, quantity 1 pc
PLC, model FX3U-32M, brand Mitsubishi, quantity 1 pc
Special model, model FX2N-2DA, brand Mitsubishi, quantity 1 pc
Communication card, model FX35-485BD, brand Mitsubishi, quantity 2 pcs
Touch screen, model GT1155-QSBD-C, brand Mitsubishi, quantity 1 pc
Communication line, model FX-50DU-CAB0-10M, brand Mitsubishi, quantity 1 pc
Power, model S-201-24, brand Weiming, quantity 1 pc
Middle state relay, model MY2NJ, spec AC220V, brand Omron, quantity 1 pc
Middle state relay, model G6B, spec DC24V, brand Omron, quantity 3 pcs
Middle state relay plug, model PYF-08A, brand Omron, quantity 1 pc
Air circuit breaker, model DZ47-63, spec 10A 2P, brand Renming, quantity 1 pc
Inverter, model FR-E740-5.5K-CHI, brand Mitsubishi, quantity 1 pc
Three phase asynchronous motor, model Y132M1-6, spec 3-AC380V, quantity 1 pc
Air circuit breaker, model DZ47-63, spec 20A 3P, brand Renming, quantity 3 pcs
Coder, model TRD-2T600BF, brand Koyo, quantity 1 pc
Power supply switch, model PR12-4DN, spec NPN NC, brand Autonics, quantity 1 pc
Two self-locking choose switch, model XB2-DB21, brand Schneider, quantity 1 pc
Resistance, model RX20, spec 680 50W, quantity 1 pc
Capacitance, model CBB61, spec 2.7UF 400F, quantity 1 pc
Single phase step motor, model 90TDY4, spec 1-AC220V, quantity 1 pc
Three self-locking switch, model XB2-DB33, brand Schneider, quantity 1 pc
Servo driver, model MR-E-200A, quantity 1 pc
Specifications
Capacity: 30 packs/min (10pcs/pack)
Designed speed: 40 packs/min
