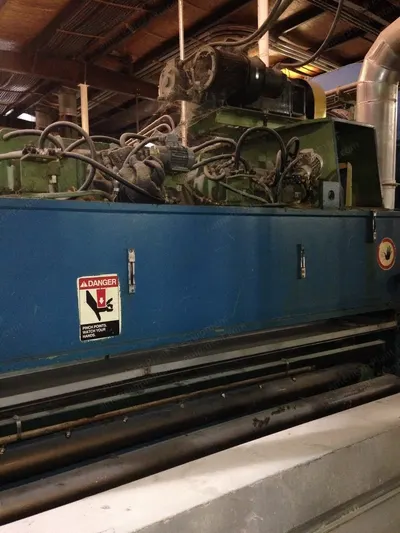

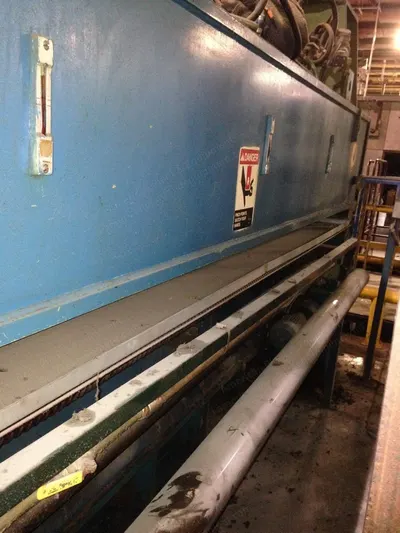

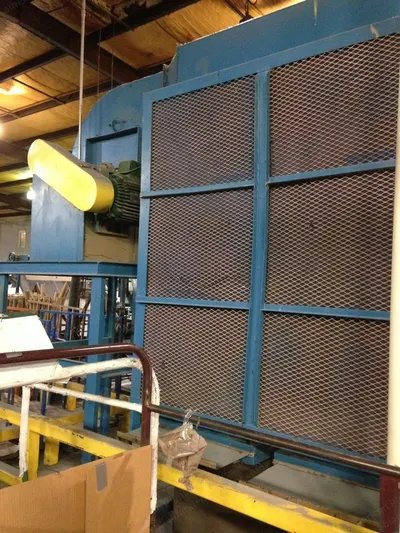

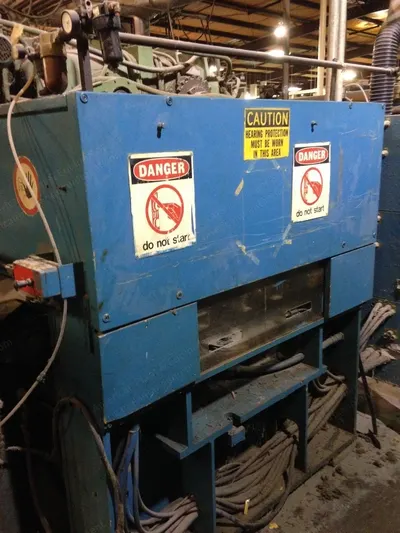

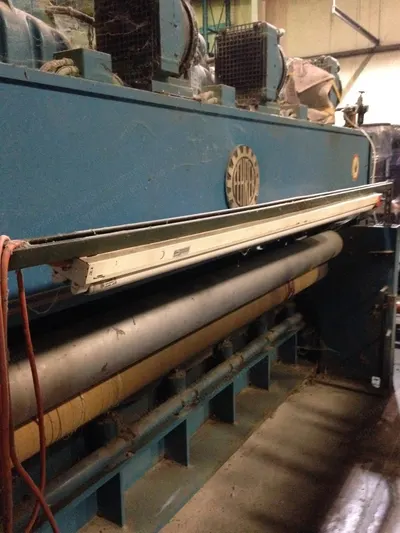

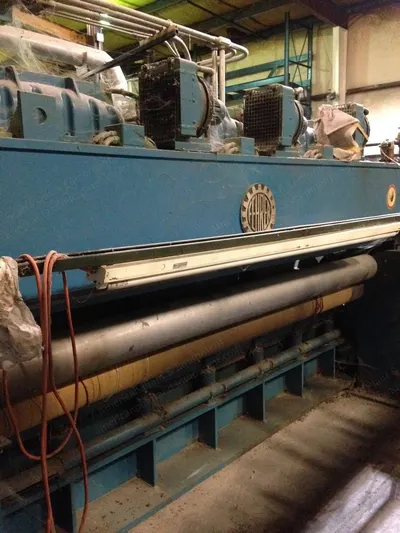

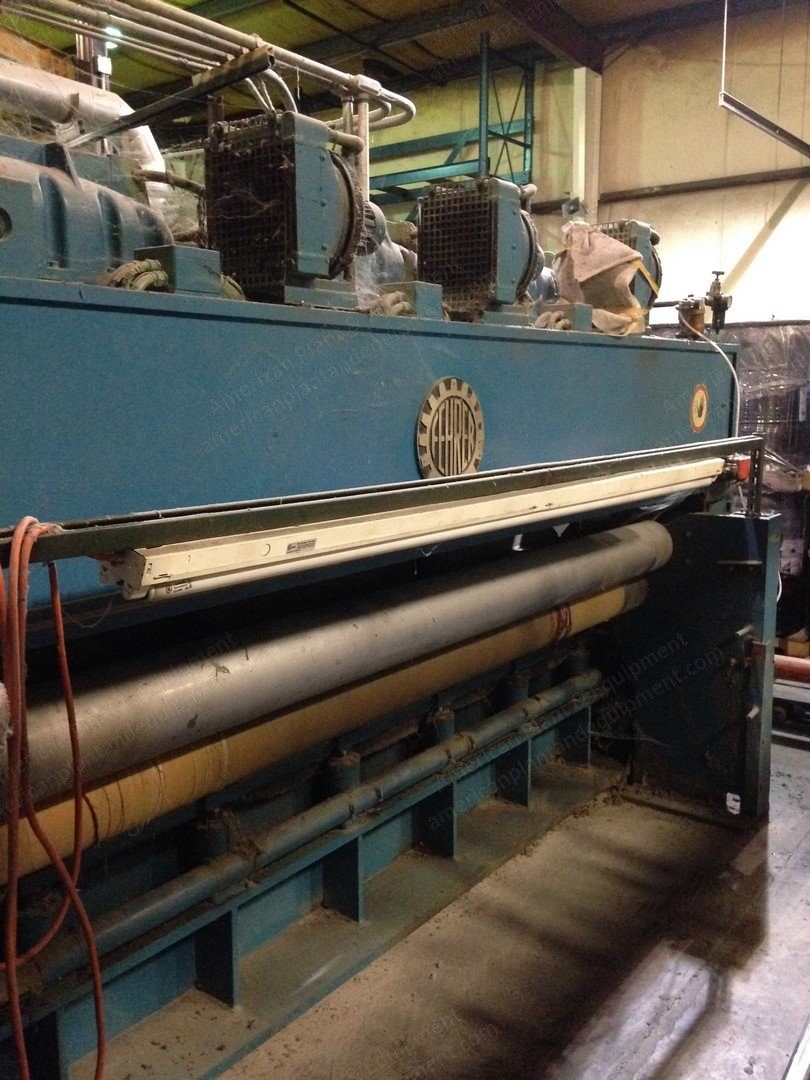

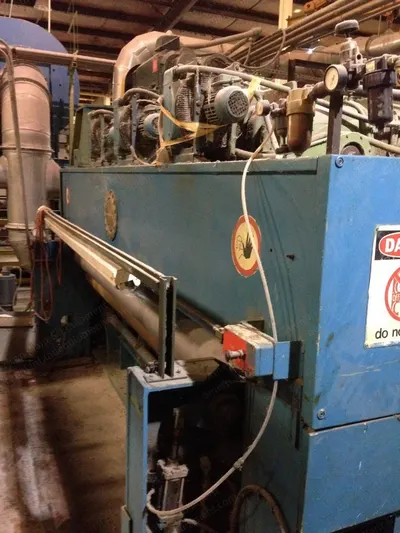

Fehrer, NL21/S, 1986, 3000mm Width, 5000 Needles/Meter, 35mm Stroke

Fehrer, NL21/S, 1986, 3000mm Width, 5000 Needles/Meter, 35mm Stroke

Description

  1. Overview
    1. Needle loom
    2. Make: Fehrer
    3. Model: Nl21/s
    4. Width: 3000 mm
    5. Year: 1986
  2. Needle Configuration
    1. Needle pattern 2 x 5000 pattern K1 (300 mm front to back)
    2. Total 6 section boards, 1000 mm wide each
    3. Stroke: 35 mm
    4. 1800 rpm
  3. Components

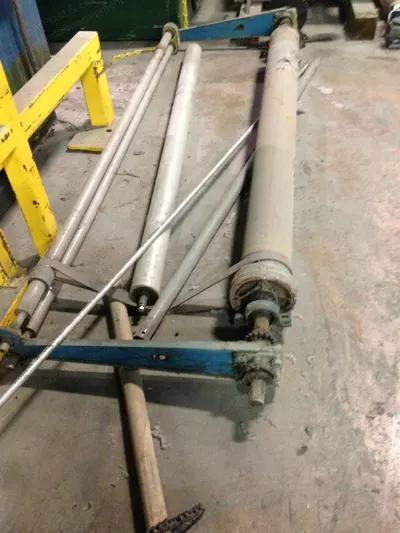

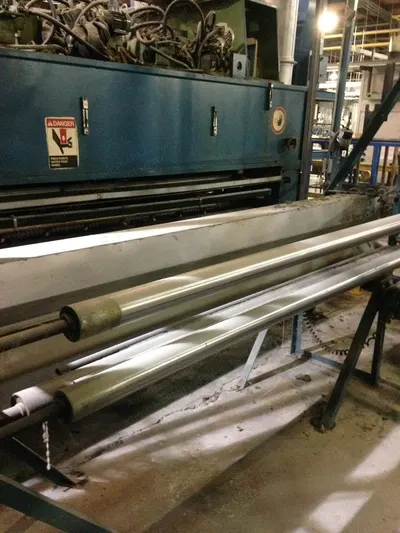

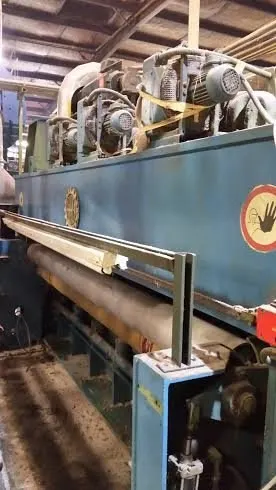

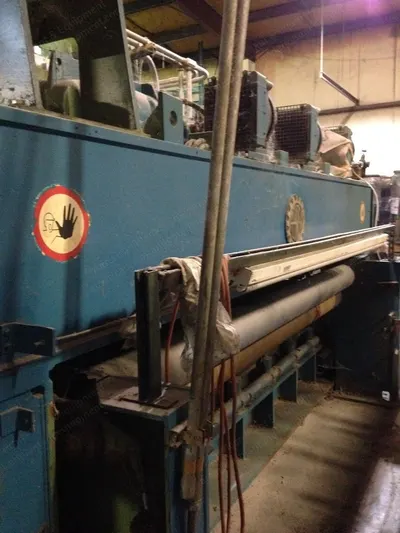

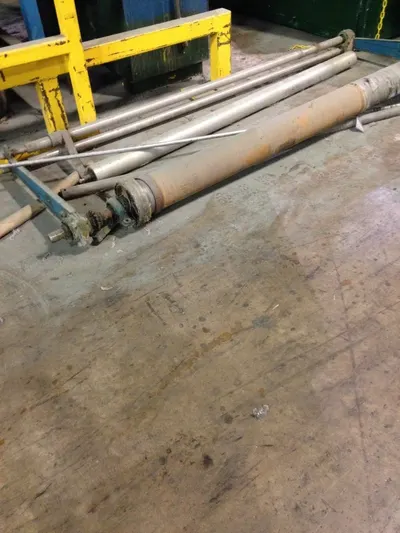

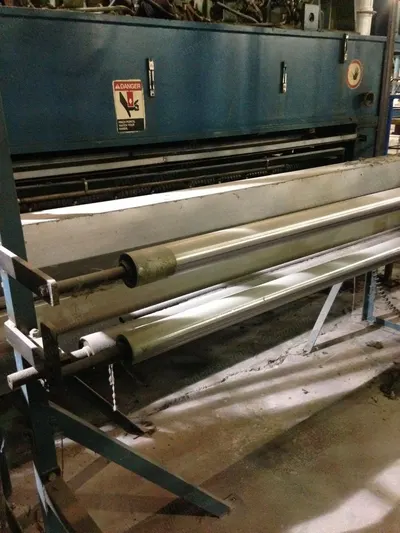

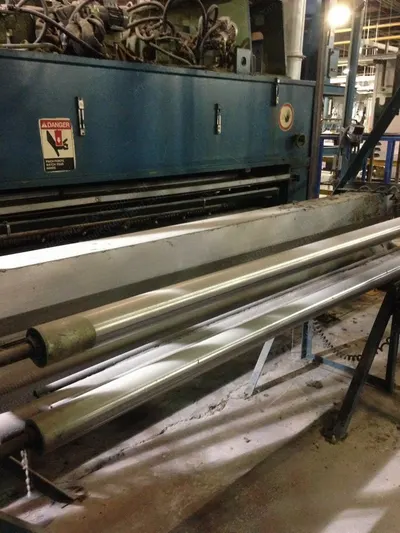

    1. Outlet roller: 200 mm diameter

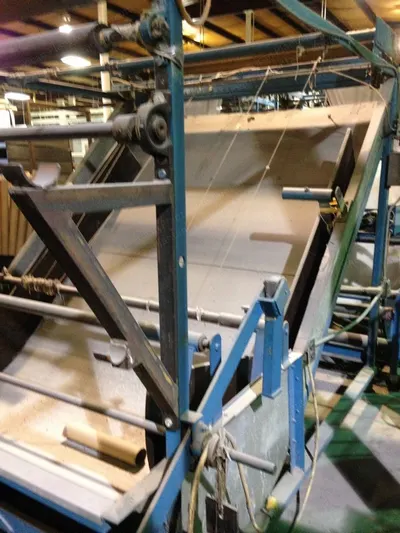

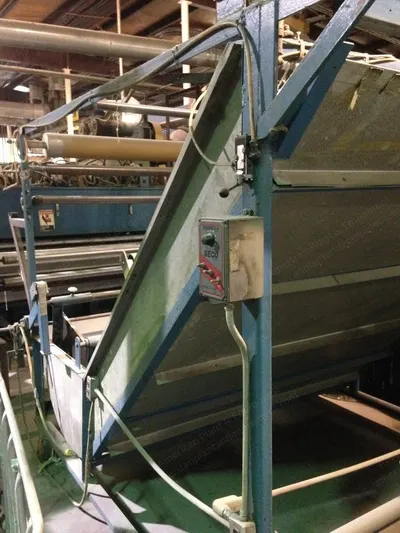

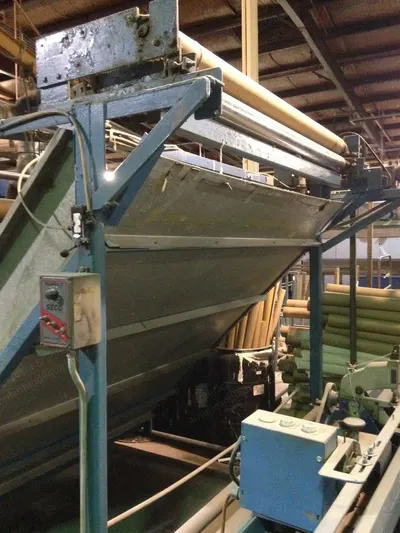

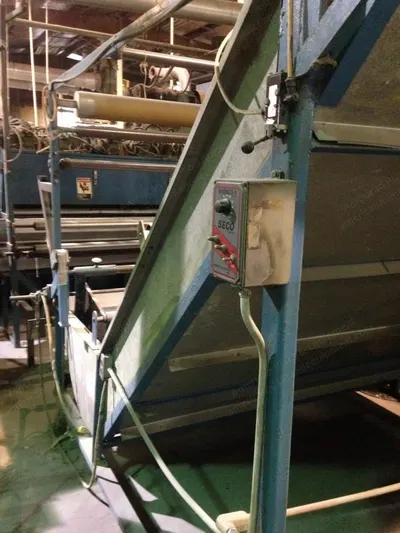

    2. Feeding conveyor
    3. Stainless steel stripper plate

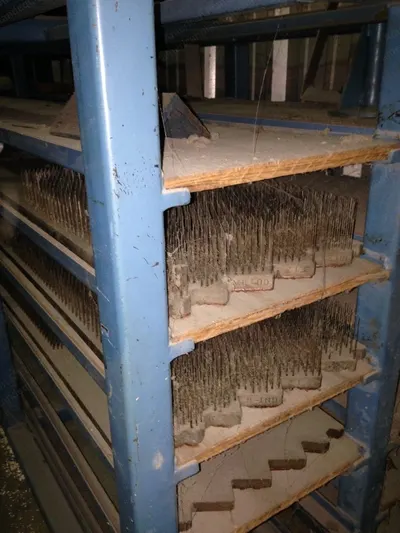

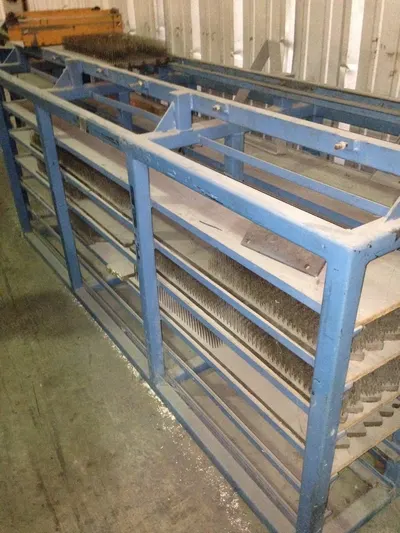

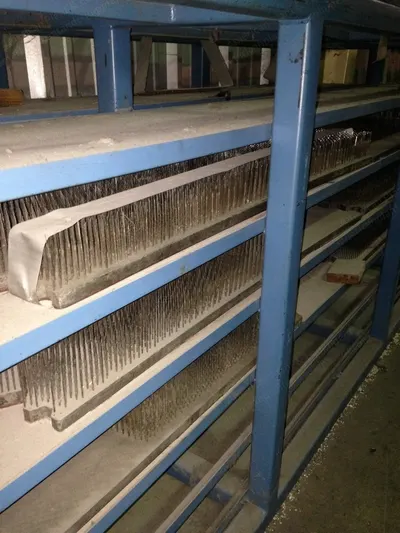

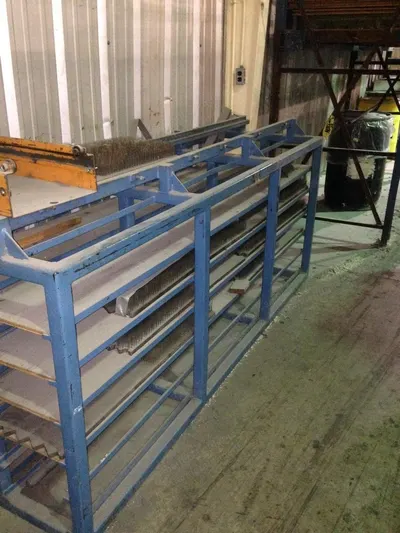

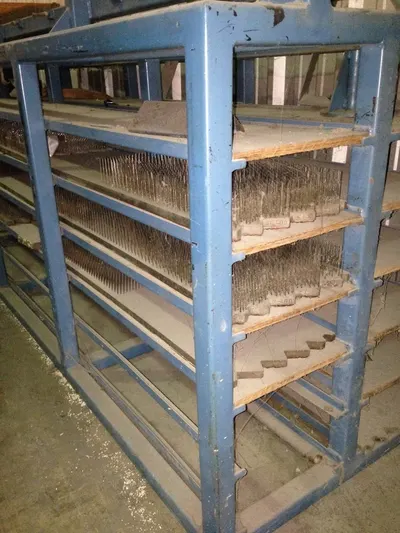

    4. Needle board rack with two sets of boards

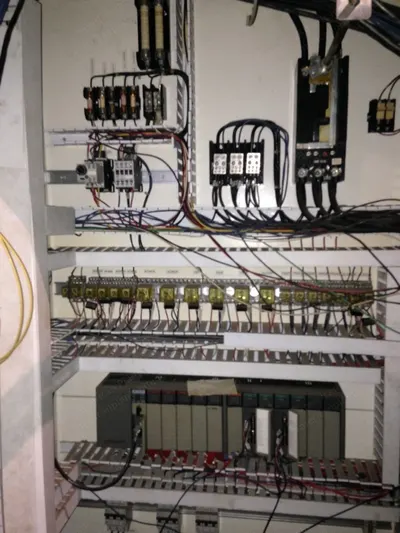

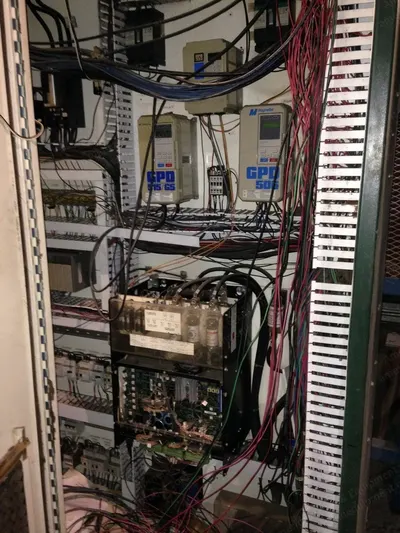

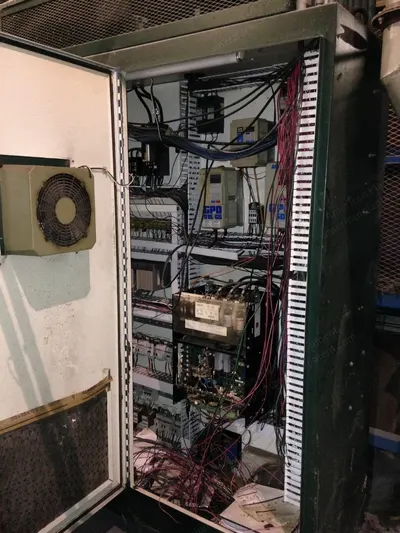

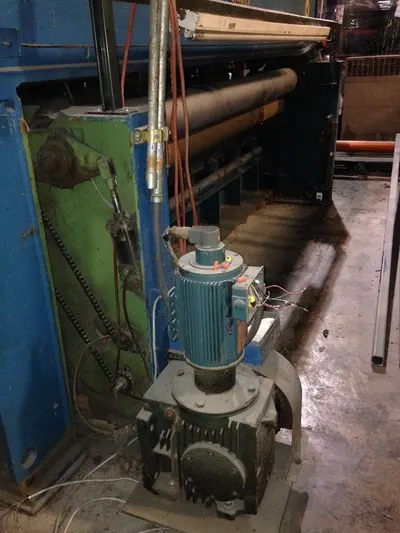

  4. Drives and Motor

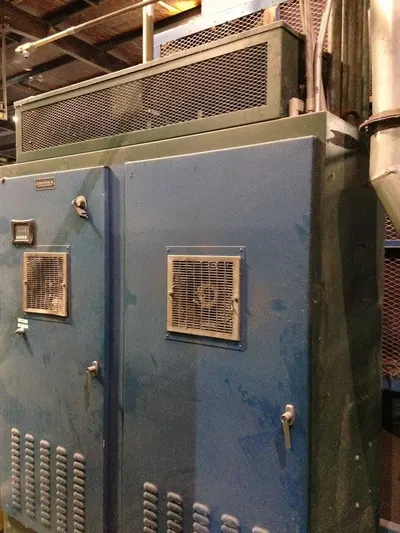

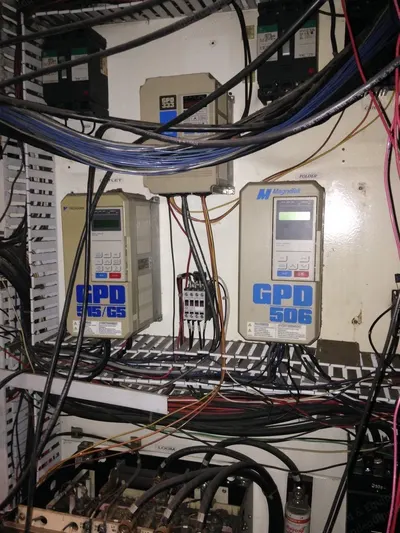

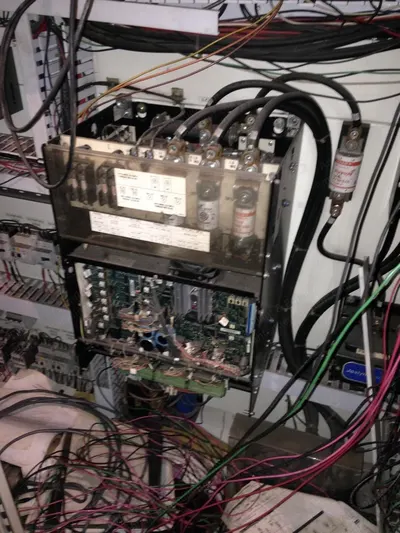

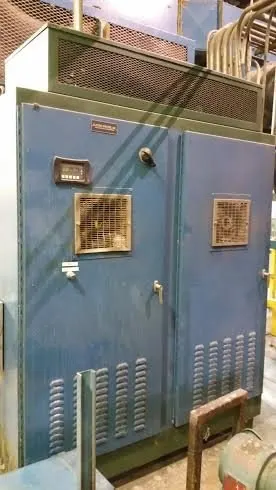

    1. Drives were rebuilt in the 2000s
    2. Reliance main motor: 500 volt dc, 75 hp, rpm is 1750/2100 field, 300 amps

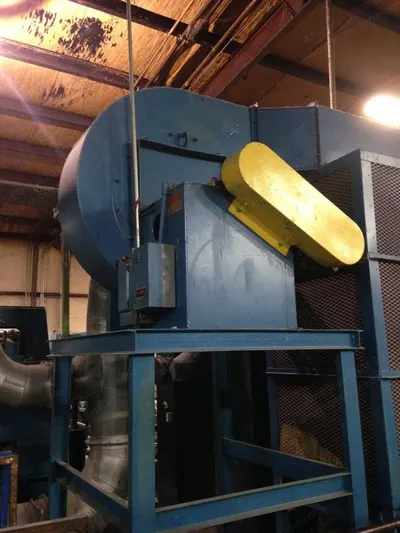

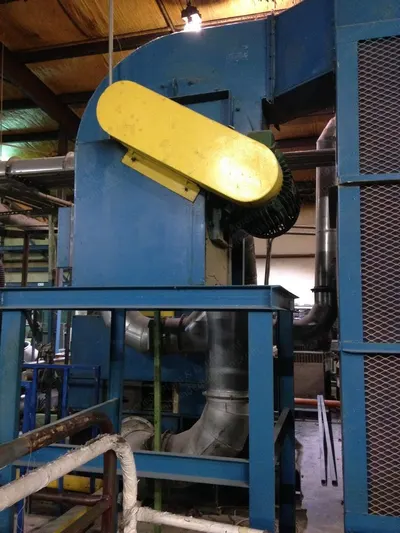

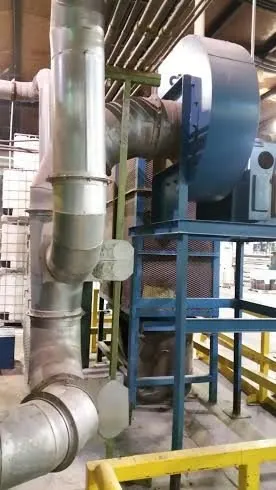

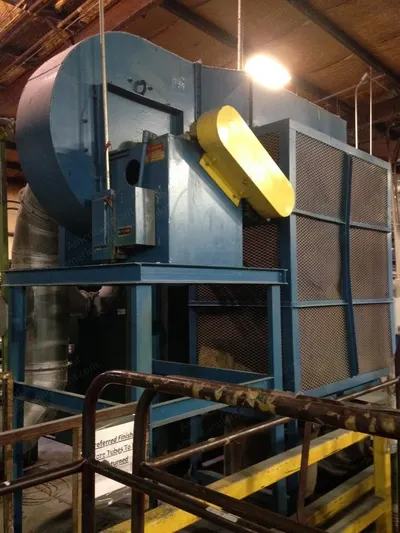

    3. Fan motor: 25 hp, 230/460 volts, 60/30 amps
  5. Dimensions

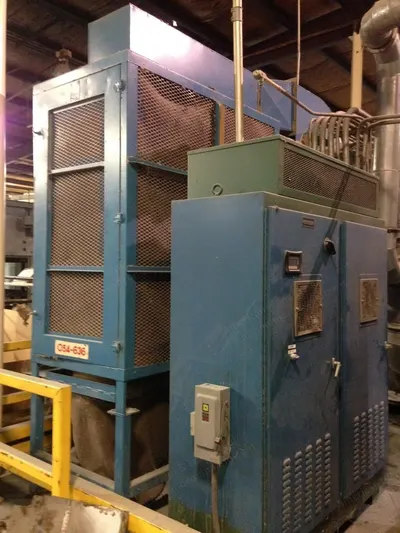

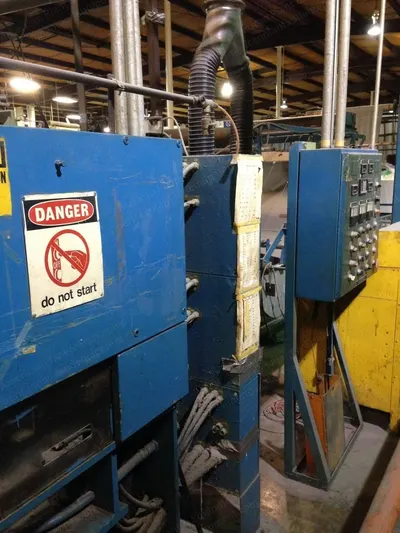

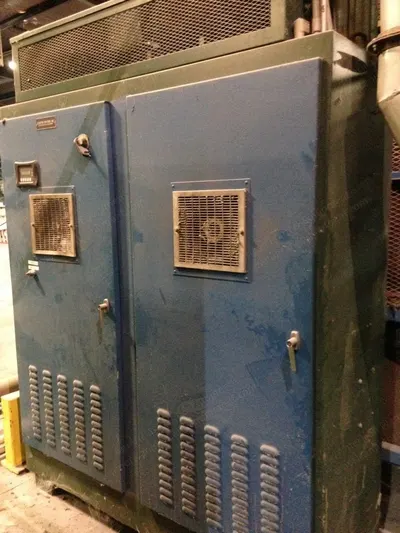

    1. Floorspace: 14 feet x 7 feet including control panel
    2. Height: 120 inches including motor (94 inches without motor)
