NovaStar, TL162, 3400mm Working Width, Double Folding and Rolling Machine with Inspection (New)

NovaStar, TL162, 3400mm Working Width, Double Folding and Rolling Machine with Inspection

Description

  1. Overview
    1. Double folding and rolling machine with inspection function.
    2. Suitable for fabric with little elasticity and without curled edge only.
    3. Feeding type of both fabric roll and plait fabric is available.
  2. Specifications
    1. Fabric type: fabric with little elasticity, without curled edge.
    2. Inlet form: roll (diameter 500 mm) or plait fabric.
    3. Outlet form: roll.
    4. Fabric width: 3400 mm.
    5. Tension control: yes (for little tension).
    6. Edge alignment device: yes (error less than 6 mm).
    7. Inspection function: yes.

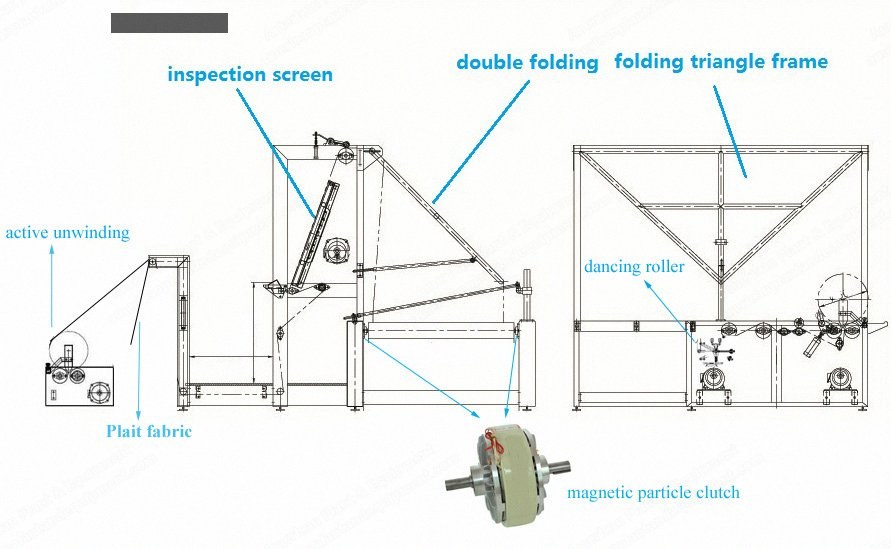

  3. Workflow
    1. Feeding position: two choices for fabric feeding – fabric roll with active unwinding device, or plait fabric.
    2. Fabric passes through the inspection screen; operator stands on the platform in charge of fabric inspection.
    3. After inspection, the fabric is double folded by the triangle frame. An edge alignment raster ensures the double edge; when the fabric is not folded selvedge to selvedge, the edge-alignment moves left or right for automatic selvedge alignment.
    4. Speeds of fabric feeding, checking, and rewinding are synchronized. The dancing roller moves up and down to control fabric tension.
    5. At the rewinding position, the magnetic particle clutch easily and quickly changes the torque; fabric tension is adjustable and constant.
