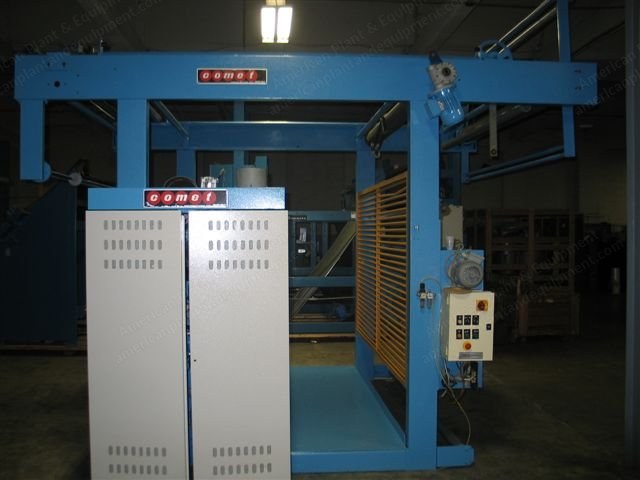

Comet, Orion, 1995, 86" Wide, 2200mm Working Width, 25 Spirals

Description

Overview
1. Corino guider with pivot bar
2. Fabric enters from buggy
3. Exits with plaiter in front of machine
Specifications
1. Corino driven scroll rolls with centering device - 94" wide
2. Wire brush - 86" wide
3. Ledger blade and revolving shear (25 spirals) - air cylinder regulates pressure on ledger blade
4. Suction pipe
5. Driven exit rolls with tension device

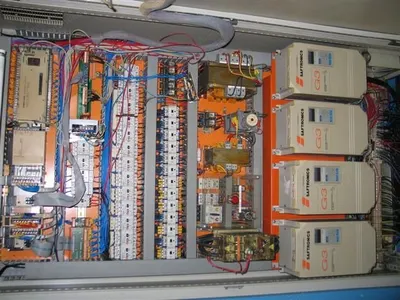

6. Computer controls
7. Extra steady rest, extra ledger blade assembly, extra revolver with 25 spirals
8. Working width: 2200mm (86 inches)

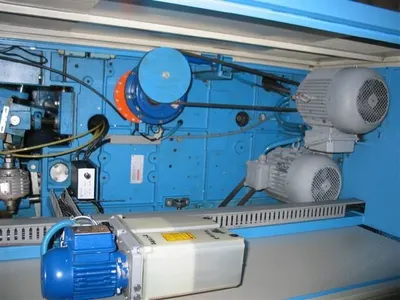

Motors
1. Driven scroll roll motor: 277/480 volt, 4.5 hp
2. Driven exit rolls motor: 277/480 volt, 1.13 hp
3. Driven ledger blade motor: 208-230/460 volt, 1725 rpm

Features	['Corino guider with pivot bar', 'Corino driven scroll rolls with centering device', 'Wire brush', 'Ledger blade and revolving shear', 'Suction pipe', 'Driven exit rolls with tension device', 'Plaiter exit', 'Computer controls']
Revolving Shear Spirals Count	25
Spare Parts	['Extra steady rest', 'Extra ledger blade assembly', 'Extra revolver with 25 spirals']

Ledger Blade Motor Speed	1,725 rpm

Working width	2,200 mm
