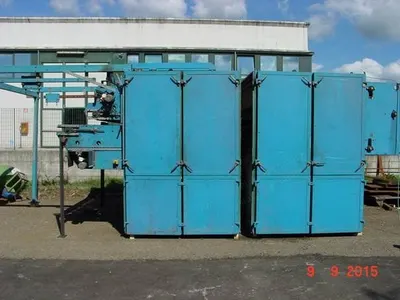

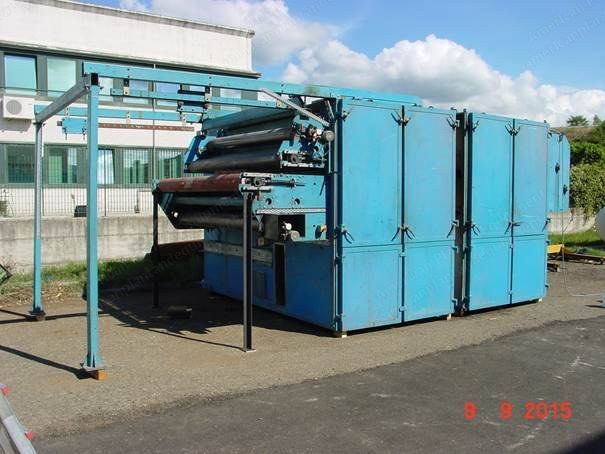

Santex, Thermobonding Compression Oven, 1986, 2500mm Working Width, 2 Heating Zones, 350 kW

Description

Overview
1. Working width: 2500 mm
2. Roll face width: working width + 50 mm
3. Machine speed: 1 - 20 m/min (others upon request)
4. Machine weight: 13,000 kg
Material Specifications
1. Material fibers: nonwoven web of polyester or different fibers mixed with 10-25% polyester bi-component binder fibers or different binder fibers
2. Material transport: transport belts of teflonized glass fiber; open or close mesh fabric below and above the material
3. Max. distance between belts: 6÷100 mm in heating zones individually adjustable in each zone
Heating and Cooling
1. Composition oven: 2 heating zones of 2 m each + 1 cooling section (included in the second zone)
2. Heating media electric heating: 200 kW heaters
3. Max air temperature: 20÷230 °C
4. Circulating air volume: 40,000 m³/h
Power and Utilities
1. Power engines: 70 kW motors
2. Installed electrical power: 350 kW
3. Power supply: 3 x 380 V + N + E / 50 Hz
4. Compressed air requirement: 7 bar
Specifications
1. Material weight range: 80 - 400 g/m

Capacity	1 - 20 m/min
Material Weight Range	80-400 g/m²

Circulating Air Volume	40,000 m³/h
Max Air Temperature	20-230 °C

Dimensions	2500mm working width
Weight	13,000 kg

Installed Electrical Power	350 kW
Voltage	3 V
