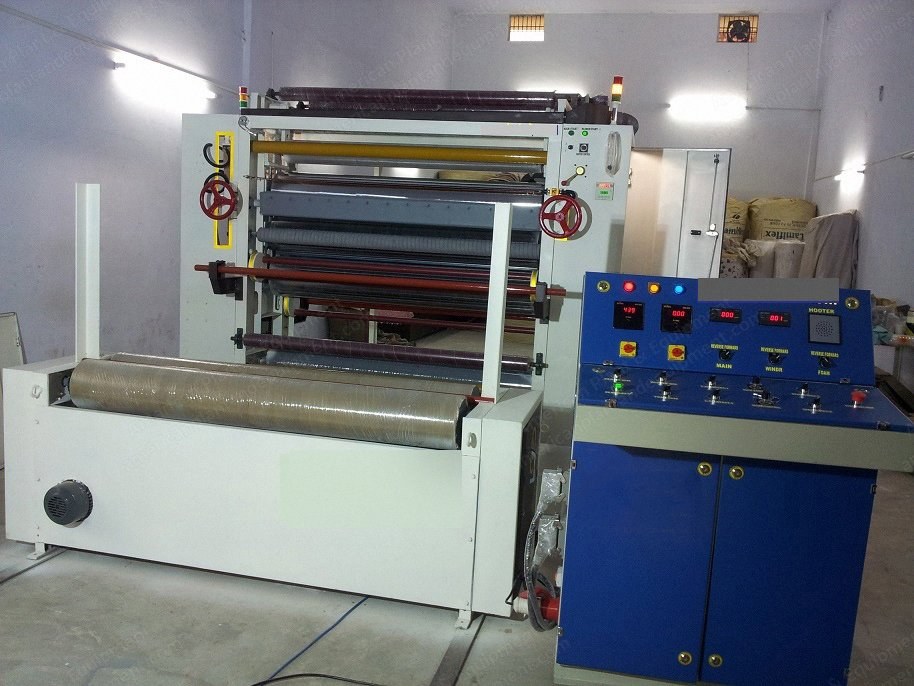

NovaStar, FL144, 2100mm Working Width, Double Sided Flame Laminator (New)

NovaStar, FL144, 2100mm Working Width, Double Sided Flame Laminator

Description

  1. Overview
    1. Double sided bounding machine
    2. Model: FL144 both side bounding
    3. Application: Lamination / fabric pu.foam fabric
    4. Fully synchronizing system
  2. Specifications
    1. Maximum web width: 84" (2100 mm)
    2. Working width: 2100 mm
    3. Fabric roll diameters: Approximately 300 mm
    4. Foam roll diameter: Up to 1500 mm
    5. Foam thickness: 1.8 mm to 25 mm adjustable
    6. Speed: Up to 40 yards per minute (1-40 meters per minute variable)
    7. Core id: Approximately 2 inches
    8. Diameter of bonded roll: 1650 mm (or other as per client)
  3. Rollers and Motors
    1. Main rolls: 11.5" o.d. (two cooling roller and one normal rollers) with water circulation motor system
    2. Winder rolls: 8.5" o.d. (both learning rolls)
    3. Main motor: Ac 5 hp with reduction and panel
    4. Winder motor: Ac 2 hp with reduction and panel
  4. Lifting and Burner System
    1. Lifting system: All three rollers with pneumatic system
    2. Flame burner: Lpg gas + air mixed (1.0 hp ac 2 motors) with both pneumatic lifting system
    3. Fuel can be used: Automatic feeding propane, butane, natural gas, urban coal gas (liquefied petroleum gas)
  5. Additional Features
    1. With four guiders
  6. Floor Space Required
    1. 5.5 x 5.1 x 2.8 meters
    2. 5.8 x 5.5 x 2.8 meters
