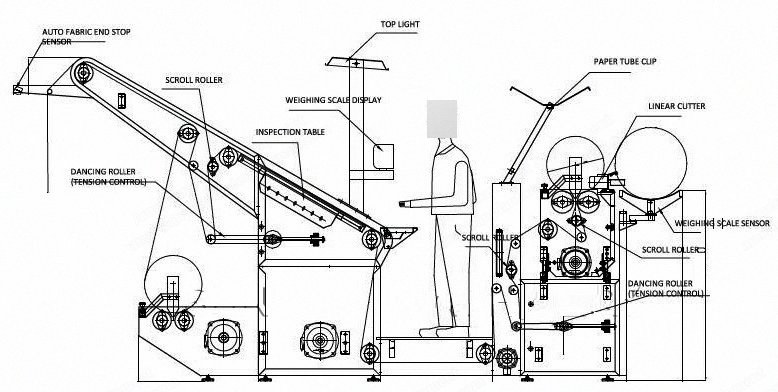

NovaStar, TL164, 72 inch Working Width, 30 inch Max Roll Diameter, 400 lb Capacity (New)

NovaStar, TL164, 72 inch Working Width, 30 inch Max Roll Diameter, 400 lb Capacity

Description

  1. Overview
    1. Auto fabric end stop sensor: when the first fabric is going to finish, the sensor detects no fabric feeding and sends a signal to stop the machine automatically.
    2. The operator can then connect the second roll to the end of the first roll and start the machine to inspect the second roll.
    3. This allows rolls to be inspected continually, saving time on manual fabric feeding.
  2. Tension Control
    1. Mechanical tension control: 60 degree fixed angle inspection screen has the least influence on fabric tension.
    2. Electrical tension control: equipped with two dancing rollers, in the feeding position and rewinding position.
    3. With a longer platform, the dancing rollers move up and down to control fabric tension.
  3. Inspection Screen
    1. 60 degree fixed angle inspection screen.
    2. Two dancing rollers.
    3. Curled-edge control.
  4. Curled-Edge Control
    1. Three sets of scroll rollers: before inspection table, after inspection, and before rewinding, to open curled edges and ensure accurate edge-alignment.
    2. One set of air-blowing device to open fabric and eliminate crease for perfect roll generation.
  5. Included Components
    1. Scroll roller.
    2. Air-blowing device.
    3. Fabric roll trolley (standard model ST-HBT-07II, Φ800 x 600 kgs).
    4. Automatic fabric end stop sensor.
    5. No weigh scale is included.
  6. Fabric Roll Trolley Specifications
    1. Machine: hydraulic cloth roll doffing trolley (Φ800 x 600 kgs).
    2. Carrying capacity: 600 kgs.
    3. Cloth roll diameter: max. 800 mm.
    4. Hydraulic cylinders: two.
    5. Hydraulic unit: one.
    6. Lifting height: 900 mm.
  7. Machine Dimensions
    1. Length: 4650 mm.
    2. Width: 2350 mm.
    3. Height: 2255 mm.
  8. Motor Specifications
    1. Feeding motor: 0.7 kW.
    2. Unwinding motor: 1.5 kW.
    3. Rewinding motor: 1.5 kW.
    4. Inspecting motor: 1.5 kW.
    5. Edge-alignment motor: 0.4 kW.
    6. Scroll roller motor: 0.25 kW.

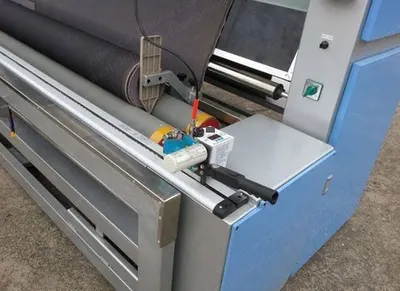

  9. Cross Cutter Specifications (Semi-Automatic)
    1. Blade dimensions: 108 mm diameter.
    2. Voltage: single phase, 110 V.
    3. Rotating speed: 14000 rpm (fixed).
    4. Power: 180 W.
    5. Automatic cutter will influence inspection by interfering signal, with safety concerns.
    6. Operation: does not need to handle the cutter all the way across the width; just a thrust by hand on one side, and the cutter will cut fabric full width by inertia.
    7. When the cutter reaches the other side, after about 2 seconds, it returns automatically by the recoil of the spring.
  10. Performance Notes
    1. If the machine feeding position is specially designed with a lower position, a customized design charge applies.
    2. The customized feeding position could be lower but not floor level; an upload equipment is still needed.
    3. The fabric roll trolley can move easily and transport and lift fabric rolls from loom to cloth inspection area, and can meet other transport demands.
  11. Specifications
    1. Capacity: 400 lb (600 kg for trolley)
    2. Working width: 72 inches
    3. Max roll diameter: 30 inches
