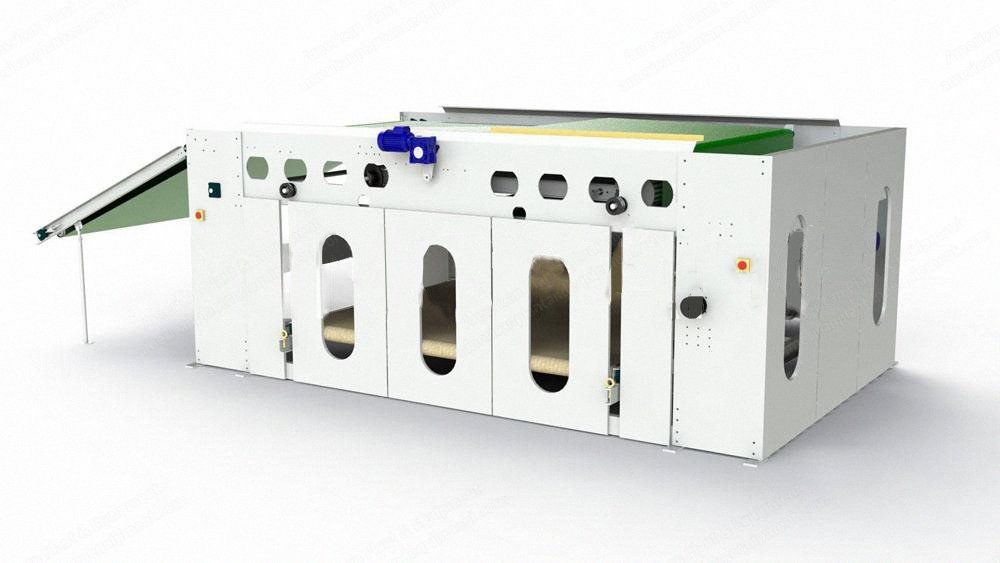

NovaStar, NN482, Cross Lapper, Input Width 2500mm, Output Width 3000mm, 45 m/min (New)

NovaStar, NN482, Cross Lapper, Input Width 2500mm, Output Width 3000mm, 45 m/min

Description

  1. Overview
    1. Used to evenly fold and lap the webs fibers into certain width and thicknesses of 3/4 for next working procedure.
    2. Cross lapper (improved ones).
    3. Model: PW-250 x 300.
    4. Electrical control.
    5. All bearings use Japanese or German brands.
  2. Technical Data
    1. Input apron width: ≤2500 mm.
    2. Output apron width: ≤3000 mm.
    3. Cross lapping speed: ≤45 m/min.
    4. Output speed: 1-10 m/min.
    5. Feeding amount: 70-500 g/m².
    6. Control accuracy: CV ≤5%.
    7. Installed power: 8.9 kW.
    8. Product weight: 70-500 gsm max.
    9. Lapping speed: 45 m/min.
    10. Linear speed: less than 10 m/min.
  3. Structure
    1. Machine frame is 8 mm thickness Q235-A armor plate assembled with brace.
    2. Anti-static PVC lattices are for transferring, cross lapping and compensating. Bottom lattice is wooden lattice.
    3. Each lattice driving roller is seamless steel, and strengthened at the ends of axletree.
    4. Cross lapping and reciprocating is subsection controlled accurately by PLC.
    5. Reciprocating adopts synchronous belt for drive.
    6. The height of bottom lattice is controlled electrically by motor, and adjustable height is 1000 mm.
    7. Pressing roller is equipped at output.
  4. Included Components
    1. Above quoted machines are standard.
    2. All electrics, motors and inverter are Ying Yang standard.
    3. PLC and touch screen: Mitsubishi Japan.
    4. Inverter: Emerson, American brand.
    5. Contactor: Siemens.
    6. Motors: Siemens Beide.
  5. Additional Details
    1. Color of machine is to be specified by customer.
    2. Specification of raw material: 3D-15D x 51-76 mm PET or PP.
