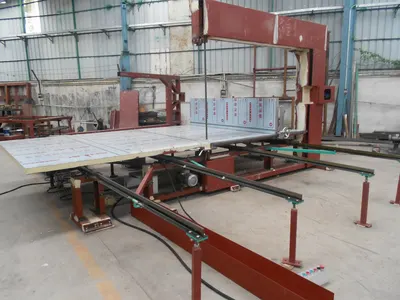

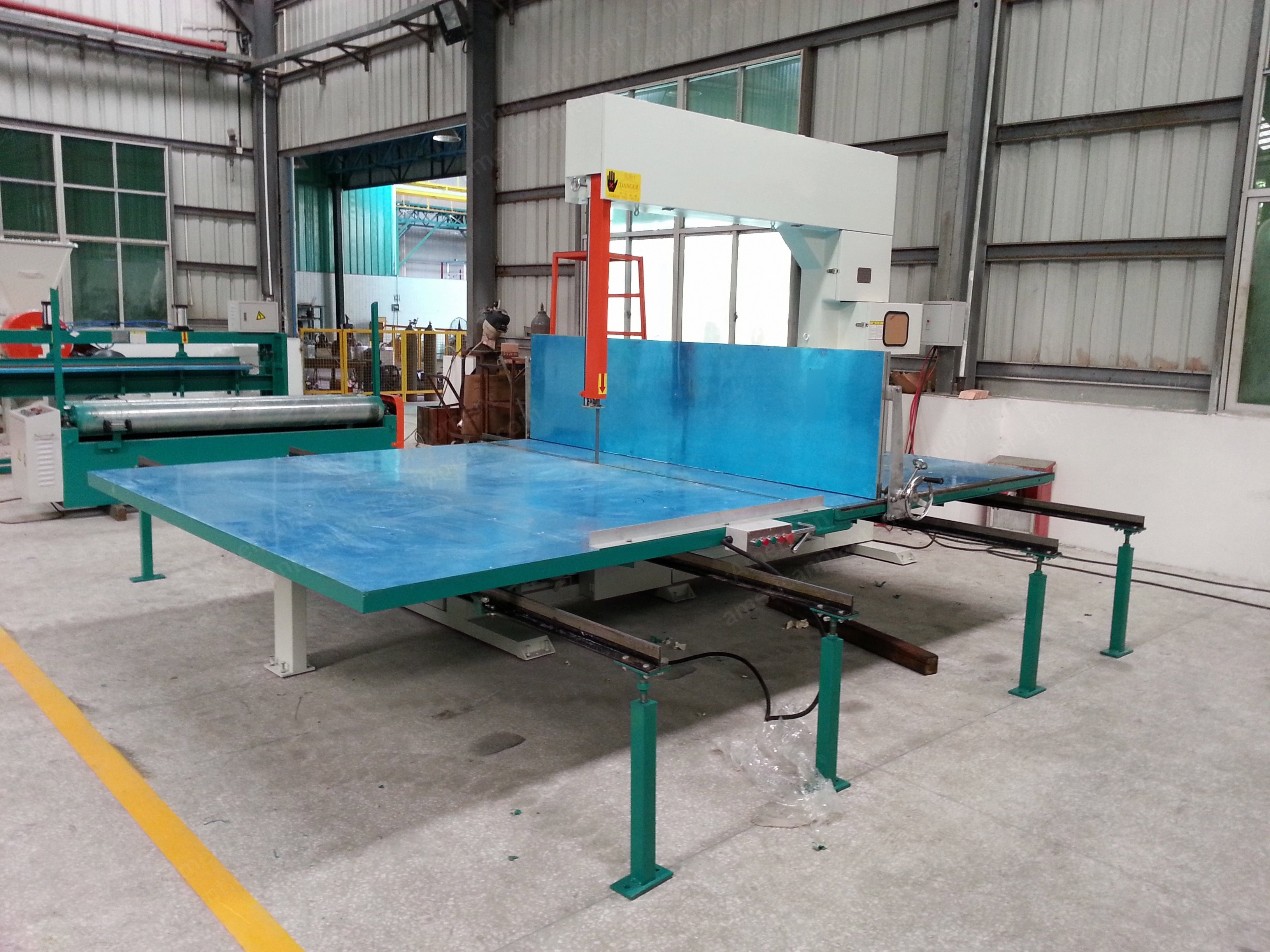

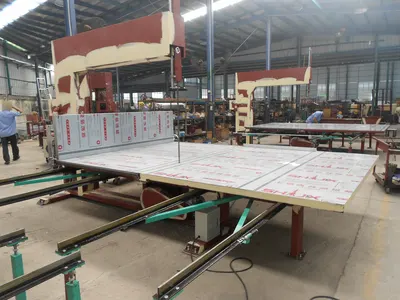

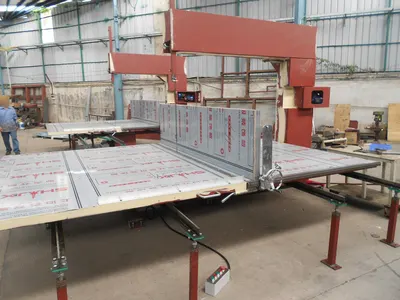

NovaStar, Vertical Foam Cutting Machine, 55" Height, 137" Width, Air Flotation Table (New)

Description

Overview
1. Vertical foam cutting machine (FN452), customized 55" height, 137" wide (11.4')
2. Air flotation table
3. Two-sided blade for both ways cutting
4. Model: LQ-4L
Specifications
1. Inside worktable size: W1720mm x L3500mm (67.7" x 137")
2. Outside worktable size: W2300mm x L3500mm (90.5" x 137")
3. Cutting height: H1400mm (55")
4. Cutting thickness: 3 to max mm
5. Blade length: 8700mm
6. Blade width: 30mm x 0.045mm thickness
7. Two-sided blade 30mm wide
8. Total power: 1.74kW
9. Voltage: 220, 3 phase/60 Hz
10. Capacity: 1 lb to 3 lb density
11. Dimensions: 108" L x 82" W x 49" H bun size
12. Bun weight range: 252lb to 756lb
Features
1. With four grinders for blade
2. With electric blade cover guard, motorized
3. Air flotation outside worktable (with built-in 3kW vacuum)
4. With 900mm fence
5. Overhead rotating beacon light (when operating)
Safety
1. With operators guard, OSHA
2. Safety signs, OSHA
3. Blade access side gate covered, safe from hand reach, OSHA
4. Safety switches (kill switches) on all access doors, OSHA
5. Red mushroom kill switches on all machine sides, quantity: 4, OSHA
Included
1. Spare parts: 3 pieces of blades, 4 pieces of grinding wheels, 1 set of maintenance tools
2. Guarantee for one year
3. CE certificate
Delivery
1. 35 to 40 days to rebuild, plus shipping to my shop in S.C., plus shipping to your plant time

Dimensions	108" L x 82" W x 49" H bun size
