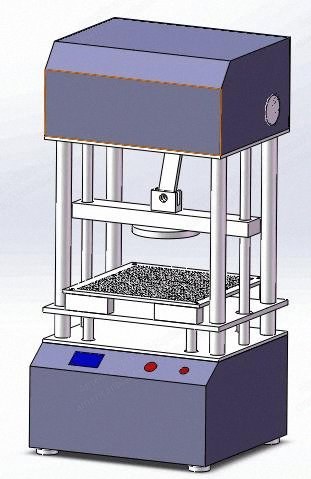

This machine determines the loss of force support at 40% ifd (indentation force deflection), a loss in thickness, and structural breakdown as assessed by visual inspection.
This fatigue test may be conducted by procedure a, procedure b, or procedure c.
Procedures a and b differ only in the number of cycles used: procedure a uses 8000 cycles and procedure b uses 80,000 cycles.
Procedure c calls for 12,000 cycles at a slower cycling rate.
Measures ifd at 40% before and after the fatigue test.
Specifications
Indentor diameter: 250 ± 1 mm
Load force: 750 ± 20 n (adjustable)
Speed: 1-100 cycles/min (adjustable)
Specimen size: 380 × 380 × 50 mm
Control mode: touch screen control (omron)
Motor: panasonic server motor
Power: 1 phase 220 v 50/60 hz
Standards: astm d3574 test i3
