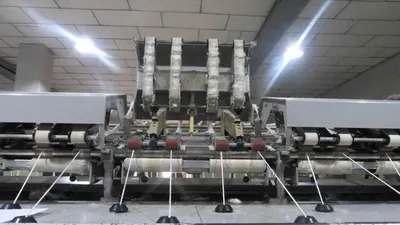

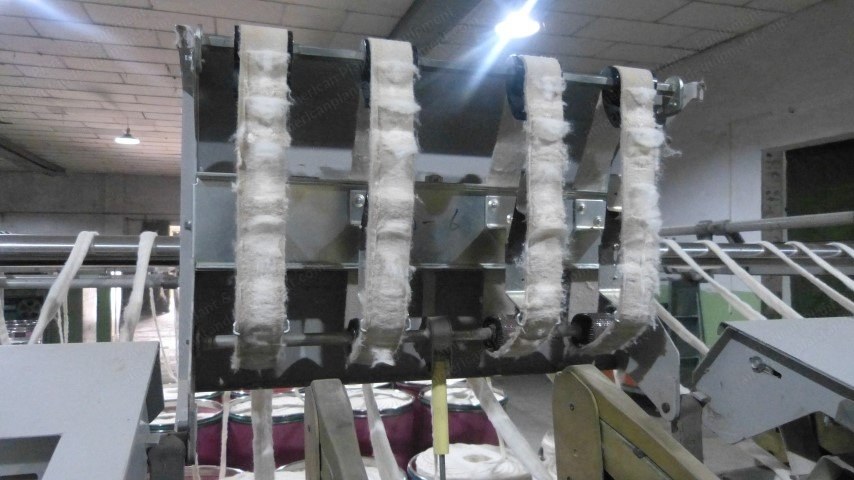

Toyoda, FL16, 1993, 108 Spindles, 16" x 6" Flyer Size, 4 Over 4 Drafting

Toyoda, FL16, 1993, 108 Spindles, 16" x 6" Flyer Size, 4 Over 4 Drafting

Description

  1. Overview
    1. Number of spindles: 108
    2. Flyer type: closed
    3. Flyer size: 16" x 6"
    4. Drafting type: 4 over 4
    5. Cradle size: short
    6. Material process: cotton
  2. Specifications
    1. Staff length: 520 mm
    2. Bottom roller diameter: 28.5 mm
    3. Bobbin length: 445 mm
    4. Bobbin diameter: 45 mm
    5. Feed can size: 20"
    6. Number of creel rolls: 6
    7. Motor power: 11 kW
    8. Voltage: 380 V
    9. Frequency: 50 Hz
  3. Features
    1. Roving tension control: available
    2. Top positive clearer: available
    3. Bottom positive clearer: available
    4. Auto doffing: not available
    5. Inverter drive for main motor: not available
    6. Ohtc: not available
    7. Oil bath: not available
  4. Quantity
    1. Quantity: 2
