NovaStar, TL165, Fabric Inspection Machine, 1800mm Max Width, 5-54 m/min Speed (New)

NovaStar, TL165, Fabric Inspection Machine, 1800mm Max Width, 5-54 m/min Speed

Description

  1. Overview

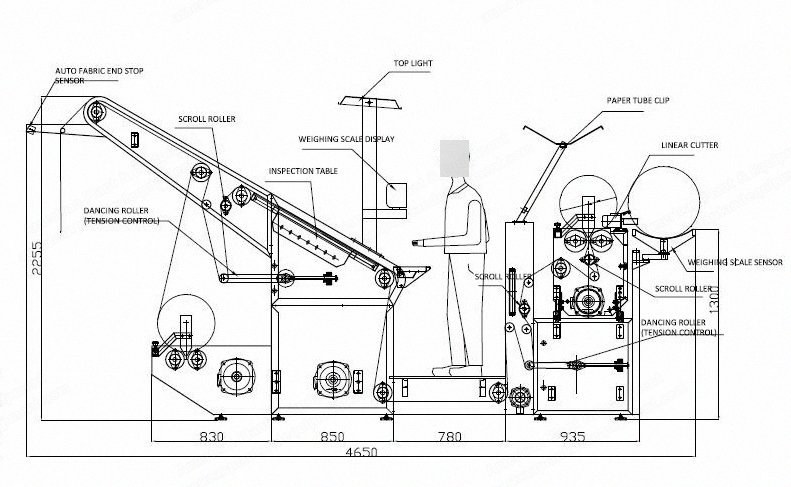

    1. Floor dimensions (LxWxH): 4650 mm x 2350 mm x 2255 mm
    2. Fabric type: open width knitted fabrics and others
    3. Maximum fabric width: 72 in (1800 mm)
    4. Fabric input: plait / roll
    5. Fabric output: roll
    6. Maximum roll diameter at inlet: 800 mm
    7. Maximum roll diameter at exit: 800 mm
    8. Edge-alignment error: ≤ 6 mm
    9. Inspection speed: 5-54 m/min
    10. Fabric tension controlling: yes
    11. Roll tightness controlling: yes
  2. Main Electrical Components
    1. Delta inverter: 6 per machine
    2. Chengang motor: 6 per machine
    3. Motor for driven scroll roller: 3 per machine
    4. Digital counter meter: 1 per machine
    5. Edge-alignment photo-sensor: 1 per machine
    6. Air-blowing device: 1 per machine
    7. Philips brand top and bottom lights: several per machine
    8. Siemens contactor and Schneider buttons: several per machine
  3. Free Of Charge Spare Parts
    1. Digital counter meter: 1 set per machine
    2. Edge-alignment photo-sensor: 1 set per machine
  4. Available Models
    1. Model 1: open width knitted fabric inspection machine (plait/roll to roll), model TL165
    2. Model 2: laser cutter (three cutters), model SP-LSC
    3. Model 3: semi-automatic fabric end cutter, model SP-LC
  5. Options (Extra Price)

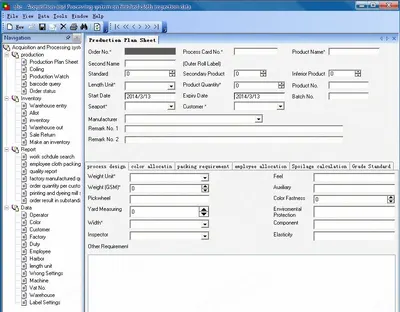

    1. Option 1: faults recording system and software for recording and printing of fabric roll inspection (24 defects identification and 4 levels for each one)
    2. Option 2: PC
    3. Option 3: Taiwan brand Argox printer (self-adhesive paper type)
    4. Option 4: semi-automatic fabric end cutter and automatic weighing machine
  6. Warranty
    1. Option 1 - standard: 13 months from date of shipment, remain price stable
    2. Option 2 - extended: 18 months from date of shipment, pay extra 10% of total value
