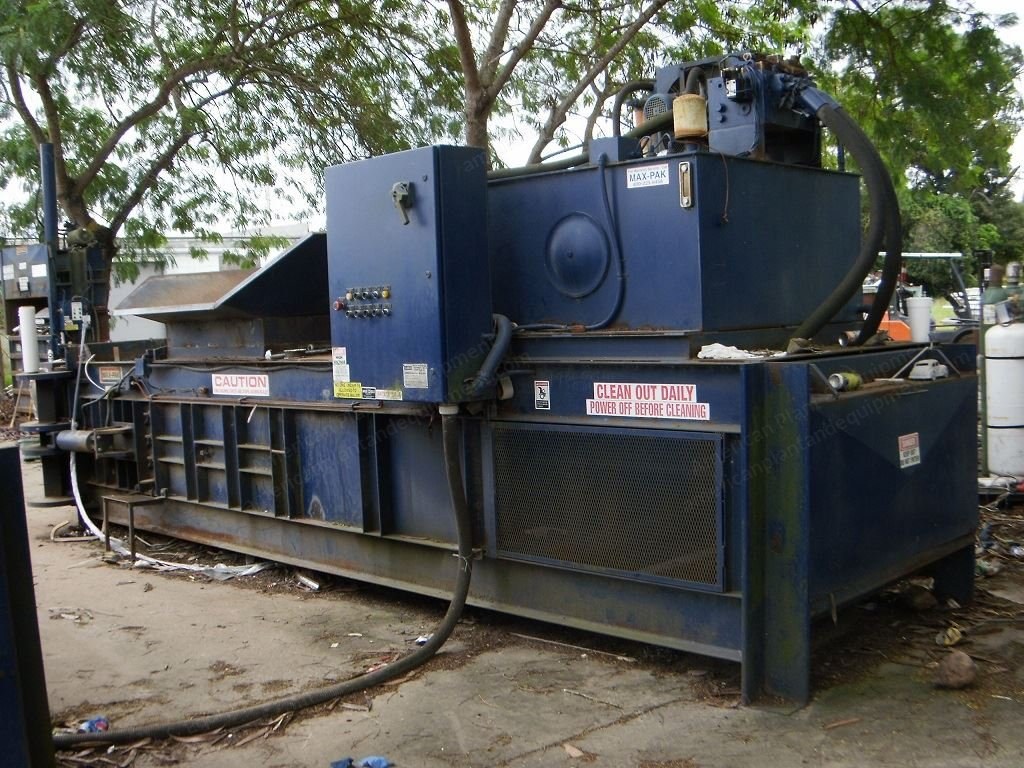

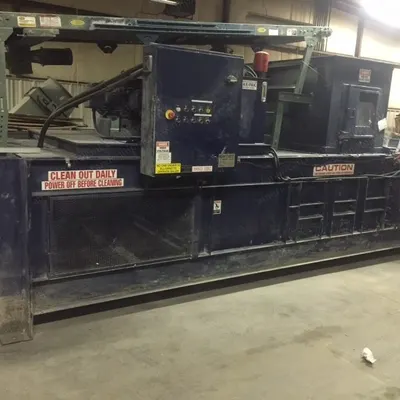

Max-Pak, HCE60FE-8, Horizontal Full Eject Baler, 9 Inch Cylinder, 50 HP Motor, 48x30x60 Inch Bale Size

Max-Pak, HCE60FE-8, Horizontal Full Eject Baler, 9 Inch Cylinder, 50 HP Motor, 48x30x60 Inch Bale Size

Description

  1. Overview
    1. 9 inch cylinder model horizontal closed door baling press.
    2. 50 hp motor.
    3. 9 inch cylinder.
    4. Good condition; floors and walls are in good condition.
    5. Recommended materials: HCE60FE baler.
  2. Recommended Materials And Approximate Bale Weights
    1. OCC – old corrugated cardboard (1250 lb).
    2. ONP – old news paper – should be dispersed so that material goes in evenly and not in stacks or clumps (1400 lb).
    3. UBC – used beverage containers (aluminum cans) (700 lb).
    4. Steel cans – food cans and other light ga. containers, 5 gallon or smaller (1000 lb).
    5. PETE containers (700-1000 lb).
    6. HDPE containers (800-1100 lb).
    7. Aluminum extrusions – aluminum shapes with.125 inch thickness or less (1150 lb).
    8. Aluminum pipe or tubing -.125 inch max. wall thickness - 3 inch max. diameter (1000 lb).
    9. Radiators – automotive radiators or equivalent size heat exchangers (1300 lb).
    10. Aluminum siding (1500 lb).
    11. Aluminum sheet scrap -.125 inch maximum thickness for pieces less than 6 inches wide – otherwise.063 inch maximum thickness (1350 lb).
    12. Aluminum / copper cable – recommended 1 inch diameter or less (1700 lb).
    13. Copper sheet scrap -.125 inch max. thickness for pieces less than 6 inches wide – otherwise.063 inch (1700 lb).
    14. This is meant to be a representative guideline of materials that should be baled in subject baler. Other materials of comparable size / makeup may be baled. All materials should be fed in a manner consistent with the shearing capabilities of the baler.
  3. Model And Bale Size Data
    1. Max-Pak model: HCE60FE-8.
    2. Bale size: 48 inch x 30 inch x 60 inch.
    3. Bale volume: 50 cubic feet.
    4. Cycle time: 29.58 seconds (no load).
    5. Capacity: 6,038 cubic feet per hour (no load / 65% L.E.).
    6. Performance rates, bale weights and densities are subject to variables such as moisture content, loose densities, feed rates, and other variables associated with the process of baling.
    7. Recommended bale wire: 12 ga, 16 foot single loop - 5/bale.
    8. Shipping weight: 26,000 lbs.
  4. Performance Data Table
    1. Bulk OCC: up to 1300 lbs., density 2.5 / 28 lbs./ft3 loose/baled, up to 3 bales/hour.
    2. Cond. news / OM: up to 1450 lbs., density 3 / 30 lbs./ft3 loose/baled, up to 3 bales/hour.
    3. Perforated PET: up to 900 lbs., density 1.5 / 18 lbs./ft3 loose/baled, up to 3 bales/hour.
    4. UBC: up to 750 lbs., density 1 / 15 lbs./ft3 loose/baled, up to 3 bales/hour.
  5. Hydraulic Components And Data
    1. Main pump: horsepower limited piston - 60 gpm.

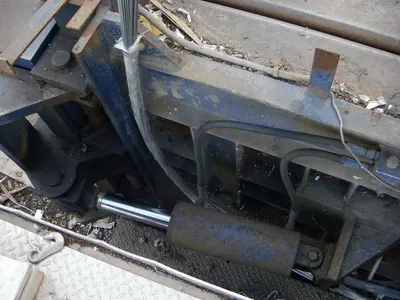

    2. Main cylinder: 8 inch bore, 89 inch stroke, 5.5 inch rod - clevis mount.
    3. Door clamp cylinder: 5 inch bore, 10 inch stroke, 2.5 inch rod - clevis mount.
    4. System pressure: 3,000 psi operating pressure: 2,850 psi ram face pressure: 85.17 psi.
    5. Overall platen force: 143,256 lbs.
    6. Oil reservoir: 150 gallons.
    7. Main hydraulic manifold: CETOP 8 - high flow directional valves.
    8. Filtration: 5 micron absolute.
  6. Mechanical Systems Data

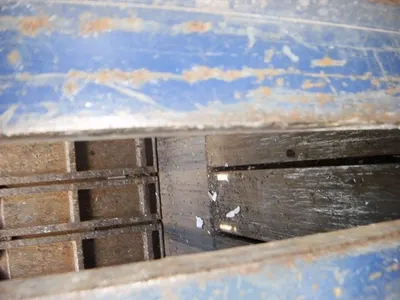

    1. Stationary shear blade: replaceable AR400 alloy steel - 4-sided turnable.
    2. Platen shear blade: replaceable AR400 alloy steel - serrated - 2 sided turnable.
    3. Platen guide: replaceable phenolic guide system.
    4. Tongue and groove floor recommended.
  7. Electrical Components And Data
    1. Main motor: 30 hp TEFC, premium efficiency, 208/230/460V - 3ph.

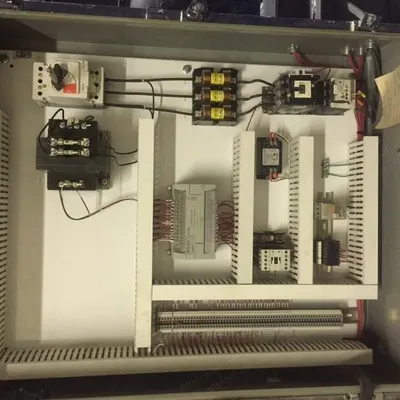

    2. Controls: Allen Bradley Micrologix 1200 PLC, UL & CUL listed, selectable photo-eyes (primary or alternate), standard across-the-line starting.
  8. Structural Data
    1. Frame: heavy channel and tube steel construction.
    2. Floor & platen: replaceable AR400 alloy steel wear surfaces.
    3. Subfloor: heavy wall tube steel in honey-comb design for superior strength.
  9. Optional Equipment And Features
    1. Reduced amperage starting.

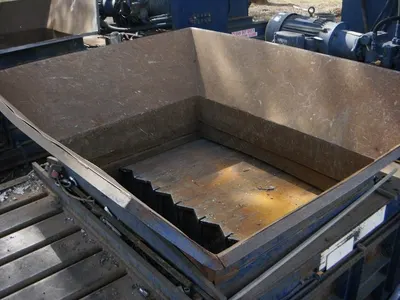

    2. Feed hopper extension remote power unit and/or operator station.
    3. Upper photo-eyes ultrasonic or high intensity actuators.
    4. Custom paint.
    5. Diagnostic modem.
    6. Conveyor and/or conveyor controls.
    7. Oil heater.
    8. Flame retardant hydraulic oil.
    9. Regenerative hydraulics.
    10. Oil cooler.
  10. Max-Pak Model HCE60Fe - 9 General Specifications
    1. Horizontal closed door baling press.
    2. Bale size: 48 inch x 30 inch x 60 inch.
    3. Bale volume: 50 cubic feet.
    4. Cycle time: 23.41 seconds (no load).
    5. Recommended wire: 12 gauge, 16 foot single loop galvanized.
    6. Performance rates, bale weights, and bale densities are subject to moisture content, material pre-bale densities, feed rates, and other variables in baling.
  11. Performance Data Table (50 Hp Regen)
    1. Bulk OCC: up to 1450 lbs., density 2.5 / 28 lbs./cu.ft. loose/baled, up to 3 bales/hour.
    2. Bulk ONP: up to 1500 lbs., density 3.0 / 30 lbs./cu.ft. loose/baled, up to 3 bales/hour.
    3. Aluminum sheet & ext.: up to 1800 lbs., density 4.0 / 36 lbs./cu.ft. loose/baled, up to 3 bales/hour.
    4. UBC: up to 700 lbs., density 1.0 / 14 lbs./cu.ft. loose/baled, up to 3 bales/hour.
    5. Perforated P.E.T.: up to 750 lbs., density 1.5 / 15 lbs./cu.ft. loose/baled, up to 3 bales/hour.
  12. Hydraulics
    1. Main pump: piston 95 gpm.
    2. System pressure: 2600 psi / 3000 psi maximum.
    3. Main cylinder: 9 inch bore, 6 inch rod, 92 inch stroke.
    4. Ram face pressure: 101.85 psi - 111.54 at maximum.
    5. Platen force: 165,405.24 lbs. - 190,852.20 overall.
    6. Oil reservoir: 400 gallons.
    7. Hydraulic manifold: integral relief, regenerative hydraulic circuit.
    8. Filtration: 5 micron.
    9. Hydraulic manifold: integral relief, regenerative manifold.
    10. Air/oil cooler: standard.
  13. Electrical
    1. Motor: 50 hp, 230/460V, 3ph (standard).
    2. Enclosure: NEMA 12 – rated.
    3. Controls: UL approved.
    4. Motor type: TEFC.
    5. Controls: CUL and UL listed.
    6. PLC: Allen Bradley Micrologic 1200.
  14. Structural
    1. Frame design: tube steel construction.
    2. Floor design: tube steel lattice network.
    3. Shear blade: AR400 alloy steel, serrated split blade shear.
    4. Platen guides: linen phenolic wear side guides.
    5. Gib bars: A1018.
    6. Shipping weight: 26,000 lbs.
  15. Options
    1. Conveyor controls: reduced amperage starting.
    2. Hopper extension: upper photo eyes.
