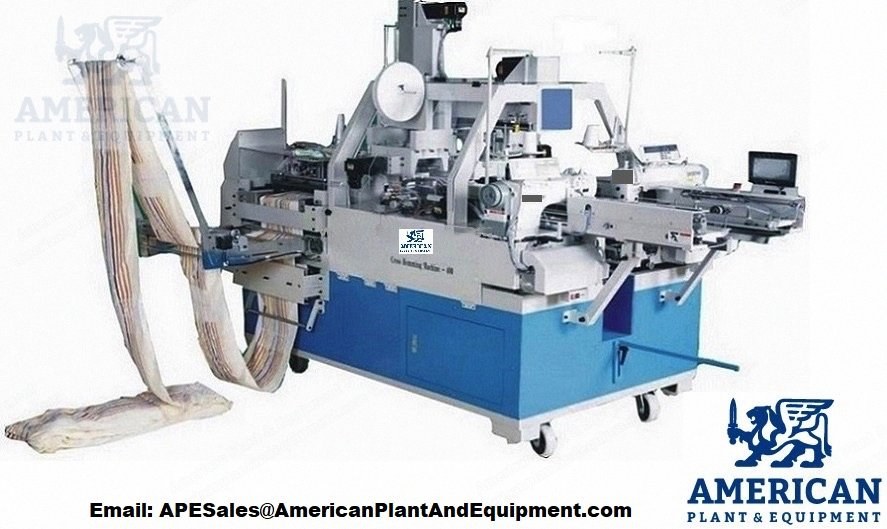

Equipped with computer direct drive for automatic line cutting sewing machine to achieve excellent sewing quality.
Setting towels length, transportation towels, automatic marking, automatic towels folding, and towels sewing can be done on one automatic towel hemming machine.
Key Functions
Setting towels length: After a certain amount of towel is fed in the machine, the computer controls to cut the feeding towels to a certain length as required.
Transport towels correction section: After towels are drawn out from the machine, the brush plate smooths the uneven parts of the towels.
Towels folding and label insertion device: Folds the part towels into three-folded while the width can be changed about 10 mm to 25 mm for a variety of labels. Cuts and inserts directly from the label roll. No need for a label content.
Towels sewing: Quick response, comfortable sewing, clean sewing without any oil, user friendly operating system, easy maintenance, less power consumption, economical type, easy operation with low noise and low vibration.
Specifications
Model no.: MU137
Max. production capacity: 600 pcs/hour
Towels width range: 260-400 mm
Finished towels length: 450-1280 mm
Hemming width: 10-25 mm
Back stitch length: 1-10 mm (1-1.5 mm/stitch)
Power supply: 220 V/50 Hz/60 Hz, 4.3 kW
Max. air consumption flow rate: 5 kg/cm² 400 l/min A.N.R.
Weight: 1800 kg
