Computer programming servo control computer for precision automatic movement punching
Microcomputer adjustment control system, die depth setting and rising stroke, all controllable on the touch screen, greatly improves the pressing stability, also has self-monitoring function

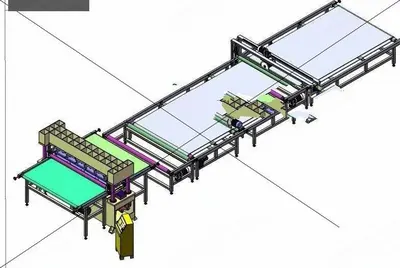

Double-sided conveyor belt servo synchronous automatic feeding, man-machine interface
Plc programmable control
Servo motor connection PLC control system automatic feeding mechanism can achieve accurate and error-free
Taiwan imported hydraulic system, Japanese electrical equipment, power saving, low noise, simple operation
The cutting work area has safety grating protection device, CE safety standard to ensure safe operation
The central automatic lubrication system, avoids no operator negligence of oil non maintenance and the damage of machine parts, the special oil system is external, equipped with a water cooler (option), sufficient heat dissipation, effectively maintain the punching force
The surface of the machine is sprayed with high temperature electrostatic spray to reduce deformation (we don't use traditional artificial paint)

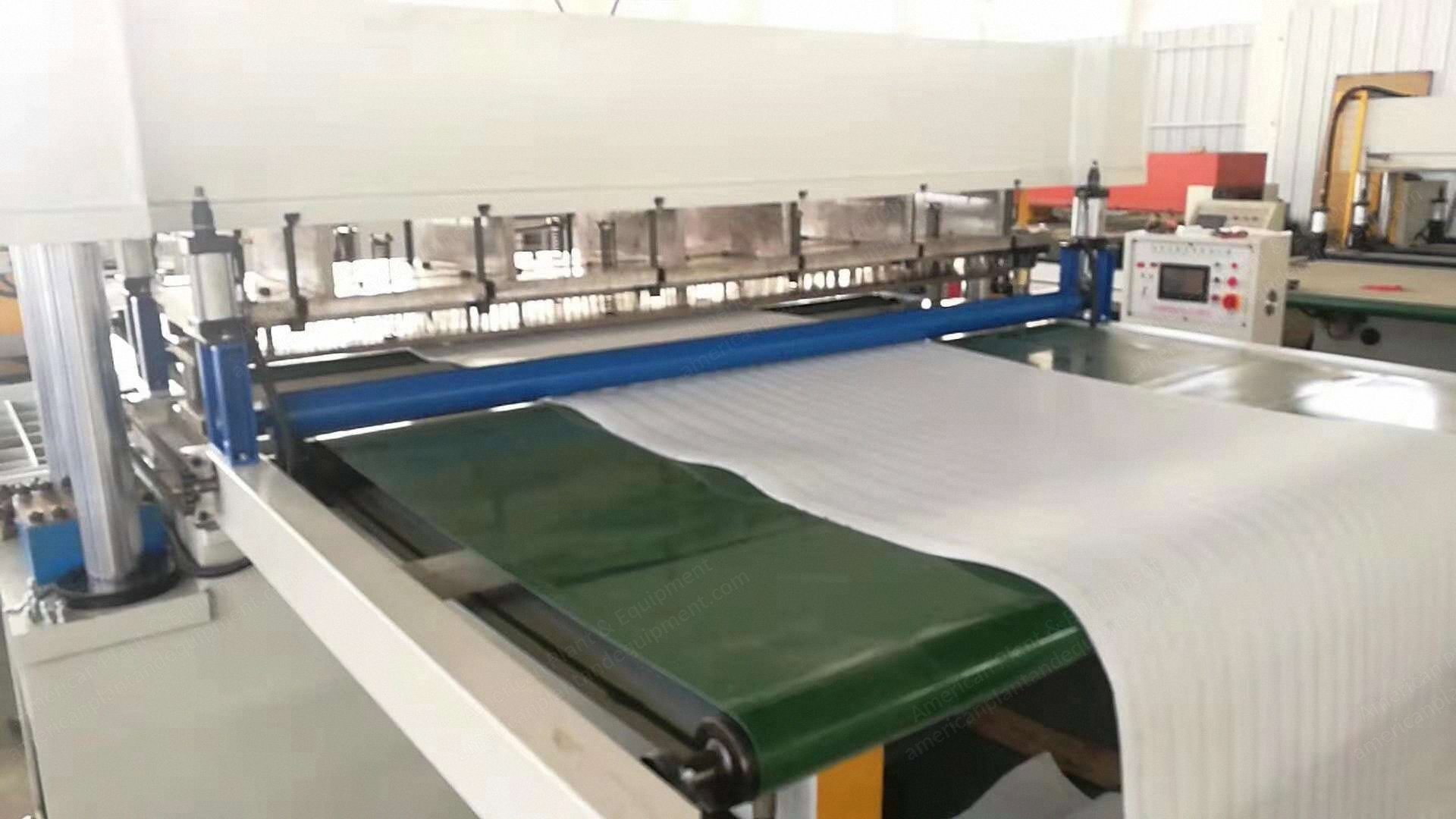

Specifications
Bore of hydraulic cylinders: 240 mm
Total electrical power: 18.5 kW
Weight: 10,800 kgs
Capacity: 120 Tons
Dimensions: 2200mm working width
Operational Details
When the punching plate is moving down, it will automatically slow down before contacting the cutting (punching) unit, 10 mm, two-stage pressure application, flexible punching
