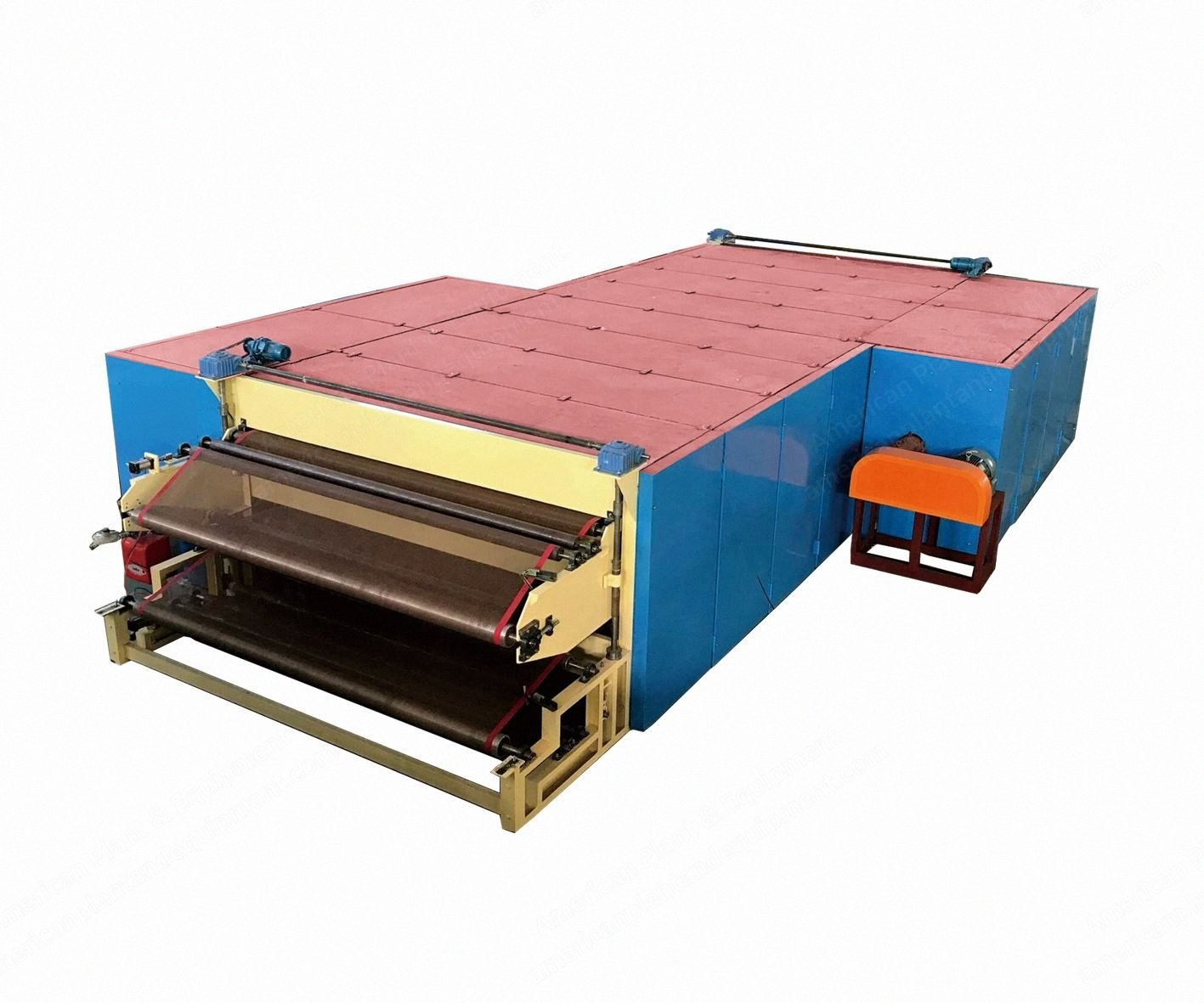

NovaStar, Stiff Wadding Oven, 2400mm Max Net Width, 2800mm Internal Shield, Natural Gas Heating (New)

NovaStar, Stiff Wadding Oven, 2400mm Max Net Width, 2800mm Internal Shield, Natural Gas Heating

Description

  1. Overview
    1. Machine frame made of 10#/8# channel steel and 5#/4# angle iron.
    2. 1.2 mm cold plate as insulation board, with high-quality fiberglass inside; insulation board thickness 100 mm.
    3. Welding of 4# angle steel and 1.2 mm cold plate in air duct.
    4. Independent centrifugal fans installed diagonally for uniform air supply.
    5. Heating type: natural gas, burner heating.
    6. Two-tier teflon supported crossing network.
    7. Upper teflon belt can rise and fall.
    8. Adding a pair of cold water rollers to the mesh outlet, then cooling by fan.
    9. Diameter of cold water roll is 225 mm and wall thickness is 25 mm.
    10. Frequency conversion speed regulation for main drive.
  2. Specifications
    1. Width of internal shield: 2800 mm (customizable).
    2. Oven length: 6000 mm (customizable).
    3. Temperature in the box: adjustable at 100-200 °C.
    4. Frequency conversion speed regulation of 2 kW cycloidal pinwheel reducer with main drive x 1 set.
    5. Fan: 30 kW x 2 frequency conversion speed regulation.
    6. Upper level teflon lift motor: 0.75 kW.
    7. Total single-machine power: 64.45 kW.
    8. Max gram weight: 5000 gsm.
    9. Max net width: 2400 mm.
