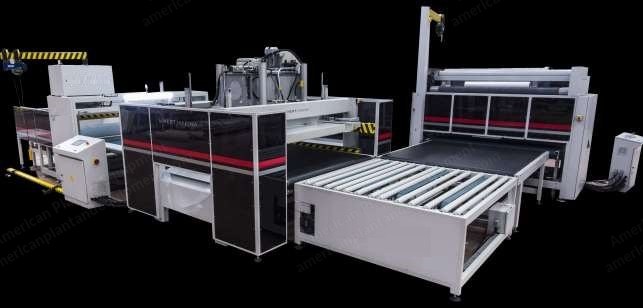

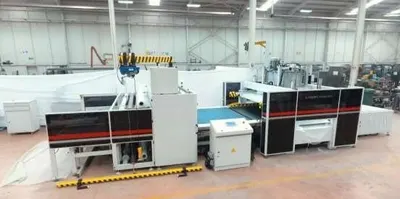

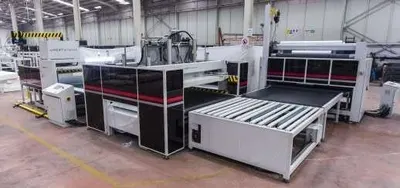

NovaStar, M-2220, Mattress Wrapping, Pressing and Rolling Machine, 3 Mattresses/min, 65 Ton Hydraulic Press (New)

NovaStar, M-2220, Mattress Wrapping, Pressing and Rolling Machine, 3 Mattresses/min, 65 Ton Hydraulic Press

Description

  1. Overview
    1. Flattens all types of mattresses and rolls up flat pocket spring mattresses.
    2. Flattening and rolling minimizes storage area, facilitates transportation, and lowers transportation costs.
    3. Production capacity: 3 mattresses per minute for normal packing.
    4. Number of operators: 1.
  2. Specifications
    1. Mattress size: min. 700 x 1900 mm to max. 2100 x 2100 mm.
    2. Mattress height: 50 mm to 400 mm.
    3. Pressing system: pneumatic for normal packing, hydraulic system for flattening and roll packing.
    4. Pneumatic pressure: 482 kgs (8 bars).
    5. Hydraulic pressure: 65 ton.
    6. Width of film rolls: min. 2200 mm to max. 2650 mm.
    7. Max. diameter of film rolls: 320 mm.
    8. Max. weight of film rolls: 200 kgs.
    9. Type of nylon: PE film.
    10. Thickness of film: 50 to 150 micron (5 to 15).
    11. Final roll packing tube diameter: 250 to 400 mm.
    12. Weight: 10000.0
  3. Power Requirements
    1. 3 phase, 380 V or as per customer.
    2. Total electric draw: 20 kW.
  4. Condition and Quality
    1. Quality standard: CE.
    2. Warranty: 2 years.
  5. Weight
    1. Approx. 10 tons.
