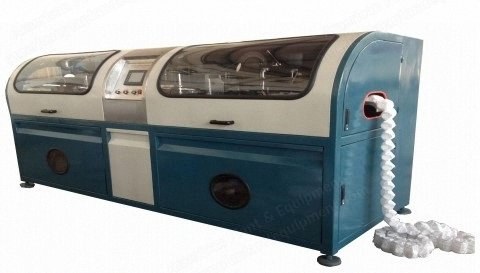

NovaStar, SB281, Pocket Spring Assembling and Auto Pocket Spring Coiler Machine, Max Working Width 2000mm, 3 rows/min, Max Output 75 coils/min (New)

NovaStar, SB281, Pocket Spring Assembling and Auto Pocket Spring Coiler Machine, Max Working Width 2000mm, 3 rows/min, Max Output 75 coils/min

Description

  1. Pocket Spring Assembling Machine
    1. Can assemble mattresses and sofa pocket springs.
    2. Gluing, turning and compressing are finished automatically after putting the pocket spring strip into the box assembler.
    3. Uses a slide way to make the turning-compressing-reset action faster, more steady and high efficiency.
    4. Uses an inverted triangle fixed plate to ensure each pocket spring is in the right position.
    5. Traditional time delay spring positioning has been replaced by orientation of distance for more accuracy.
    6. Achieves straight pattern and honeycomb type mattress.
    7. Line glue spraying or point spraying mode can be chosen according to requirement.
    8. With CE certification.
    9. Pocket height: 100 to 220 mm (custom-made).
    10. Spring diameter: 55 to 65 mm.
    11. Max working width: 2000 mm.
    12. Gluing type: interrupted, continuous, or bit by bit.
    13. Working efficiency: 3 rows/min (33 pcs/row).
    14. Air pressure: 6 kgs/cm³.
    15. Power: 3.5 kW.
    16. Weight: 950 kg.
    17. Dimensions: 3420 mm × 2370 mm × 2000 mm.
  2. Auto Pocket Spring Machine
    1. Special design for producing small specification pocket springs.
    2. Incorporates middle welding method for efficient production processes.
    3. Most movements are controlled by high accuracy servo motors.
    4. Works accurately with simple mechanism and fewer breakdowns.
    5. Includes a series of protect functions and is easy to maintain.
    6. Max output: ≤ 75 coils/min.
    7. Spring height: 100 to 150 mm.
    8. Non-woven width: 340 to 460 mm.
    9. Non-woven thinness: 60 to 90 g/m².
    10. Steel diameter: 1.8 to 2.2 mm.
    11. Spring diameter: 45 to 60 mm.
    12. Air pressure: 0.6 MPa, 15 L/min.
    13. Max power: 25 kW.
    14. Machine dimensions: 2930 mm x 1160 mm x 1470 mm.
    15. Wire holder dimensions: 1900 mm x 1100 mm x 1600 mm.
    16. Weight: 2300 kg.
  3. Specifications
    1. Weight: 3250
