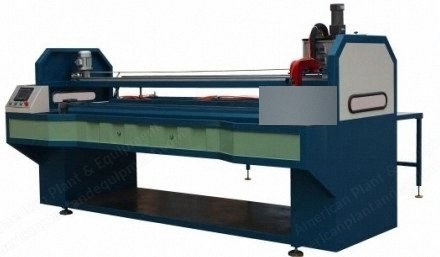

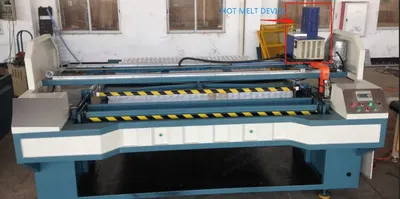

Description Overview Pocket spring assembling machine for mattresses and sofa pocket springs. Gluing, turning and compressing are finished automatically after placing the pocket spring strip into the box assembler. Uses a slide way for faster, more stable and efficient turning-compressing-reset action. Inverted triangle fixed plate ensures each pocket spring is in the correct position. Traditional time delay spring positioning replaced by distance orientation for greater accuracy. Achieves straight pattern and honeycomb type mattress configurations. Line glue spraying or point spraying mode selectable according to requirement. With CE certification. Specifications Pocket height: 100 to 220 mm (custom heights available). Spring diameter: 55 to 65 mm. Maximum working width: 2000 mm. Gluing type: interrupted, continuous, or bit by bit. Working efficiency: 3 rows per minute (33 pieces per row). Air pressure: 6 kgs/cm³. Power: 3.5 kW. Weight: 950 kg. Dimensions: 3420 mm × 2370 mm × 2000 mm.
